30/5 Ton Dual Hook Gantry Crane Case Study – Thailand

Explore how the 30/5 ton dual hook gantry crane handles heavy and light loads efficiently in Thailand, boosting industrial workflow and safety.

Case Study Outline: 30/5 Ton Dual Hook Gantry Crane for Thailand – Main Hook for Heavy Loads, Auxiliary Hook for Light Loads

Project Overview

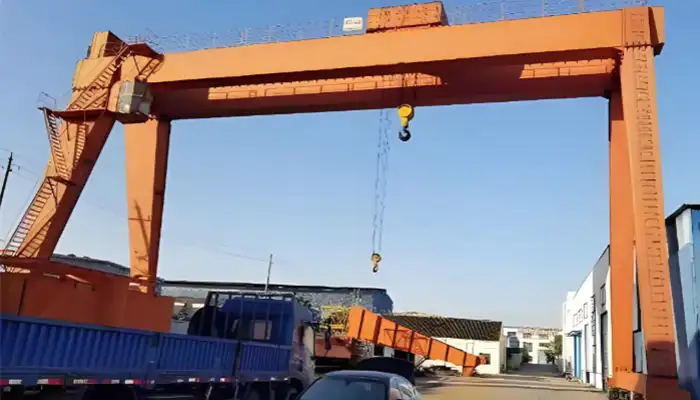

The project involved the delivery of a 30/5 ton dual-hook MGO double girder gantry crane to Thailand. This crane is designed for industrial applications that require both heavy-duty lifting and precise handling of lighter loads. Its European-style MGO hoist trolley ensures smooth operation, stability, and long-term reliability for high-frequency use in industrial environments.

This crane was selected for a factory in Thailand that handles large steel components and machinery parts. The dual-hook setup allows operators to switch between heavy and light loads without changing equipment, which saves time and reduces the strain on engineers.

Key Specifications:

• Crane Type: MGO Type Double Girder Gantry Crane (European-style open winch)
• Destination: Thailand
• Capacity: 30 tons on the main hook / 5 tons on the auxiliary hook
• Span: 20 meters, providing wide coverage for industrial operations
• Lifting Height: 8 meters, suitable for overhead handling of large components
• Work Duty: M5, indicating medium to heavy operational cycles

Buyer Insight:

• Dual-Hook Advantage: The main hook handles heavy lifting tasks up to 30 tons, such as large steel components, molds, or machinery. The auxiliary hook supports lighter loads up to 5 tons, perfect for smaller items or precision placement.
• Operational Efficiency: By using the auxiliary hook for lighter tasks, the crane reduces idle time, keeps workflow smooth, and allows engineers to focus on safety and accuracy.
• Flexibility: The dual-hook system allows a single crane to cover multiple lifting needs, eliminating the need for extra equipment and minimizing floor congestion.

This setup ensures the crane can meet the full range of industrial lifting requirements, from heavy-duty operations to more frequent, smaller lifts, making it an efficient and practical choice for factories with varied material handling demands.

Key Technical Specifications

The 30/5 ton MGO double girder gantry crane is built for both heavy-duty industrial lifting and precise handling of smaller loads. Its dual-hook configuration gives operators the flexibility to handle different tasks efficiently, while maintaining safety and reducing downtime.

Lifting Mechanism

• Main Hoist (30t): Designed for heavy lifting, capable of moving large industrial components such as steel plates, machinery parts, or molds. Its MGO hoist trolley ensures smooth, stable, and reliable operation even under frequent use.
• Auxiliary Hoist (5t): Handles lighter loads, offering precise vertical movement for smaller items or delicate parts. This reduces wear on the main hoist and improves overall workflow efficiency.
• Main Lifting Speed: 0.52–5.2 m/min, adjustable to match load and operational requirements.
• Auxiliary Lifting Speed: 0.88–8.8 m/min, allowing faster lifts for light loads without compromising control.

Traveling Speeds

• Cross Travel: 3–30 m/min, allowing smooth lateral movement across the workspace.
• Crane Travel: 3.2–32 m/min, enabling efficient movement along the runway for long-span coverage.

Control and Power

• Control Mode: Remote control and cabin control provide operators with flexible options depending on task complexity and safety requirements.
• Power Supply: 380V / 50Hz / 3 Phase, compatible with standard industrial power systems in Thailand.
• Electrical & Frequency Converters: Schneider brand components ensure precise speed control, reliability, and long-term durability.

Benefits of Dual Hooks

• Main Hook: Optimized for heavy-duty lifting, reducing strain on the crane and operators.
• Auxiliary Hook: Handles lighter loads without engaging the main hoist, saving energy and increasing operational efficiency.
• Workflow Flexibility: Dual-hook design allows vertical handling of a wide range of materials, improving productivity and reducing engineer fatigue.

This crane’s specifications make it a versatile industrial solution for factories with varied material handling needs, offering both strength and precision in one system.

Why 30-Ton Heavy-Duty Industrial Gantry Crane

The 30-ton MGO double girder gantry crane is designed for heavy-duty industrial operations, offering both strength and versatility. Its robust construction and dual-hook system make it ideal for factories and plants that handle large, heavy components alongside smaller, lighter items.

Industrial Applications

This crane is suited for a wide range of industrial settings, including:

• Steel plants: Moving large steel plates, coils, and structural components.
• Machinery factories: Lifting heavy machinery parts and assembly components.
• Heavy component handling: Safely handling molds, engines, or other oversized industrial loads.

Double Girder Design

• Stability: The double girder structure ensures a rigid and stable lifting platform, reducing sway and vibrations.
• High Lifting Capacity: Supports loads up to 30 tons with consistent safety margins.
• Long Service Life: Built for continuous industrial use, minimizing maintenance and downtime.

Vertical Material Handling Options

• Dual Hooks: The main hook handles heavy loads, while the auxiliary hook supports lighter loads up to 5 tons.
• Flexible Lifting Scenarios: Allows operators to perform both heavy and light lifts without changing equipment.
• Enhanced Safety: Engineers can safely handle smaller items with the auxiliary hook, reducing fatigue and risk.

Efficiency Gains

• Light Lifts with Auxiliary Hook: Small and precise loads can be lifted safely without engaging the main hoist.
• Heavy Lifts with Main Hook: Large and heavy components are moved efficiently and reliably.
• Reduced Crane Idle Time: Switching between hooks eliminates delays and keeps workflow smooth.
• Improved Productivity: The crane’s dual-hook system optimizes operations, saving time and effort for the team.

This combination of heavy-duty capacity, dual-hook flexibility, and stable design makes the 30-ton MGO double girder gantry crane an ideal solution for industrial material handling.

Comparing MGO vs. MG Hoist Trolleys

Selecting the right hoist trolley is essential for industrial gantry crane performance. The MGO and MG hoist trolleys differ in design, capacity, and suitability for heavy-duty operations. Understanding these differences helps buyers make informed decisions for their material handling needs.

MGO Hoist Trolley – European-Style, Heavy-Duty

The MGO trolley features a European-style open winch design, optimized for high-frequency, heavy-duty lifting. It is ideal for factories and plants where large loads are moved frequently.

Key Advantages:

• Heavy-Duty Capability: Handles loads up to 30 tons reliably, even under continuous operation.
• Smooth Operation: Lifts remain stable with minimal sway or vibration, enhancing safety.
• Precision Control: Allows accurate placement of heavy components, reducing errors and potential damage.
• Durability: Designed for long-term industrial use, minimizing downtime and maintenance needs.
• Low Profile & Lightweight: Compared to traditional MG trolleys, it has a more compact design without sacrificing strength.

MG Hoist Trolley – Traditional Industrial Option

The MG trolley is a conventional open winch design, suitable for standard or less frequent lifting tasks. While reliable, it is not optimized for continuous heavy-duty operations.

Key Features:

• Conventional Design: Works well in factories with moderate lifting requirements.
• Large and Robust: Built to handle industrial loads, but not ideal for frequent 30-ton lifts.
• Reliable Performance: Provides safe and stable operation within its intended load limits.

Buyer Considerations

When choosing between MGO and MG trolleys, consider:

• High-Frequency, Heavy Loads: MGO is the better choice for stability, durability, and consistent performance.
• Standard or Occasional Lifting: MG trolley may be sufficient for lower-intensity operations and can reduce upfront costs.
• Dual-Hook Advantage: Even with an MGO crane, using an auxiliary hook allows light loads to be lifted efficiently, saving time and reducing engineer fatigue.

Bottom Line: The hoist trolley choice directly affects the crane’s efficiency, safety, and lifespan, making it a critical decision for industrial buyers seeking long-term value.

Buyer-Focused Highlights

Selecting the right gantry crane involves more than just looking at load capacity. The 30/5 ton MGO double girder gantry crane is designed with features that make it highly practical for industrial operations, especially in Thailand where factories handle a mix of heavy and light loads.

Why This Crane Works for Thailand Operations

• Handles Heavy Industrial Loads: The main hook efficiently lifts up to 30 tons, making it suitable for steel components, machinery parts, and other large items.
• Auxiliary 5-Ton Hook: Supports lighter tasks, allowing precise handling without tying up the main hoist. This helps reduce delays in daily operations.
• Dual Hook System: By separating heavy and light lifting tasks, engineers experience less fatigue, and safety is improved across the workshop.
• Flexible Operation: Remote control combined with cabin control gives operators the ability to manage lifts safely and efficiently, whether from a distance or directly onboard.

Practical Buyer Considerations

• Lifting Frequency & Load Distribution: Assess how often the crane will be used and match the main and auxiliary hook capacities to your workflow.
• Electrical Compatibility: Verify that the 380V / 50Hz / 3 Phase power supply and Schneider frequency converters align with your facility’s electrical system.
• Preventive Maintenance: Schedule regular inspections and maintenance for the hoists, travel systems, and control components to ensure long-term performance and reduce downtime.

Installation & Delivery Notes

The 30/5 ton MGO double girder gantry crane was shipped internationally to Thailand and installed at a facility handling heavy industrial components. Proper installation is critical to ensure safe, reliable operation and to maximize the crane’s lifespan.

Delivery

• International Shipment: Carefully packed and transported to Thailand to prevent damage during transit.
• Handling: Components were unloaded using standard lifting equipment and verified for completeness before installation.

Installation Recommendations

• Stable Foundation: Ensure the crane foundation can support the 20-meter span and total lifting capacity. A solid base reduces vibrations and improves operational stability.
• Accurate Runway Alignment: Align runway rails precisely to prevent uneven travel, minimize wear, and maintain safe lifting performance.

System Testing: Before full operation, test all crane functions including:

• Main and auxiliary lifting mechanisms
• Cross travel across the span
• Crane travel along the runway

Practical Tips for Buyers

• Perform a trial lift with a moderate load before full-capacity operation.
• Confirm electrical connections and frequency converter settings during testing.
• Document installation measurements and test results for future reference and maintenance planning.

Proper installation ensures that the crane operates safely, handles both heavy and light loads efficiently, and provides long-term reliability for industrial operations.

Performance & Customer Feedback

After installation, the 30/5 ton MGO double girder gantry crane has shown strong performance in Thailand’s industrial operations. It handles both heavy and light loads efficiently while providing a safe and comfortable working environment for operators. The crane’s dual-hook system and durable design contribute to smooth workflow and reliable daily performance.

Key Performance Highlights:

• Operational Efficiency: Smooth lifting with main (30t) and auxiliary (5t) hooks; precise placement reduces handling errors; quick switching saves time.
• Noise Levels: Minimal noise even under full load, creating a safer and more comfortable workplace.
• Durability: MGO hoist trolley and double girder design ensure long service life; high-quality Schneider electrical components maintain precision and reduce downtime.
• Workflow Advantage: Dual hooks improve vertical handling, reduce engineer fatigue on light lifts, and increase overall productivity.

Overall, the crane has proven to be a reliable, efficient, and versatile solution for industrial material handling. Its combination of heavy-duty lifting, dual-hook flexibility, and durable construction ensures operators can perform tasks safely and efficiently, maximizing productivity and long-term value for the facility.

Conclusion

The 30/5 ton dual-hook MGO double girder gantry crane offers a robust solution for industrial material handling in Thailand. Its design combines heavy-duty lifting capacity with practical flexibility, making it suitable for a wide range of operations.

• Main Hook: Handles heavy lifts up to 30 tons, ideal for large steel components, machinery parts, and other oversized loads.
• Auxiliary Hook: Supports lighter lifts up to 5 tons, allowing precise handling of smaller items and reducing operator fatigue.

This crane is recommended for buyers who need a reliable, efficient, and versatile solution that improves workflow, enhances safety, and delivers long-term performance in demanding industrial environments.
