Electric Chain Hoist Brief Introduction and Certificate

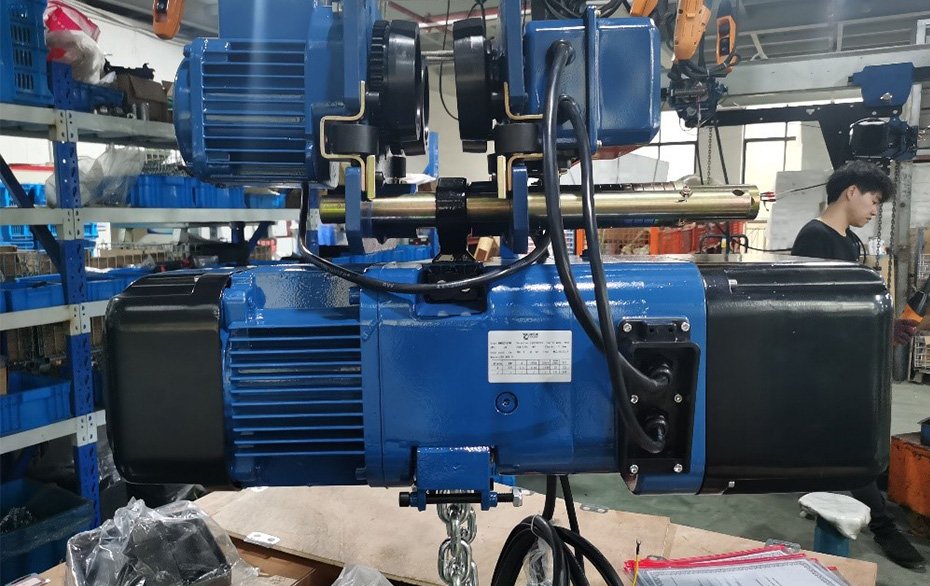

Electric chain hoist is a kind of small size and light weight lifting equipment. It has advanced technical structure, reliable performance, convenient operation and wide application range. European electric chain hoist is very convenient to use in lifting heavy objects, loading and unloading work, maintenance equipment, and lifting and transporting goods. It can also be installed on suspended I-beams, curved rails, jib crane guide rails and fixed lifting points to lift heavy objects. Electric chain hoist is composed of electric motor, transmission mechanism and sprocket.

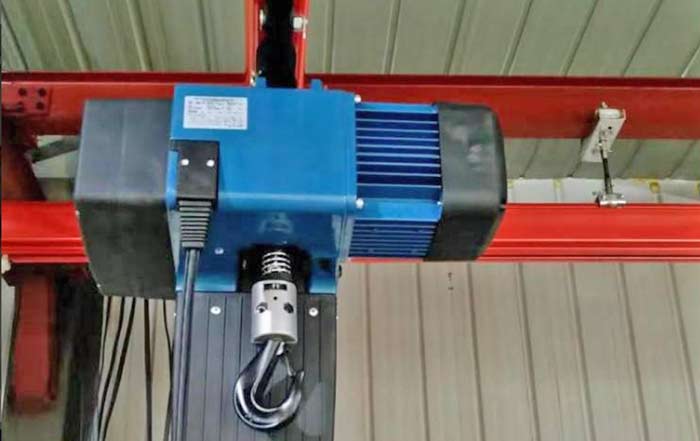

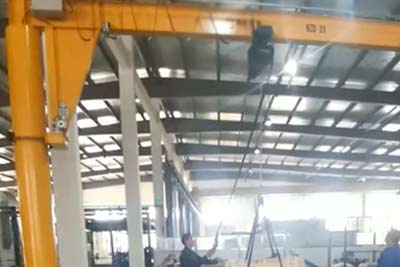

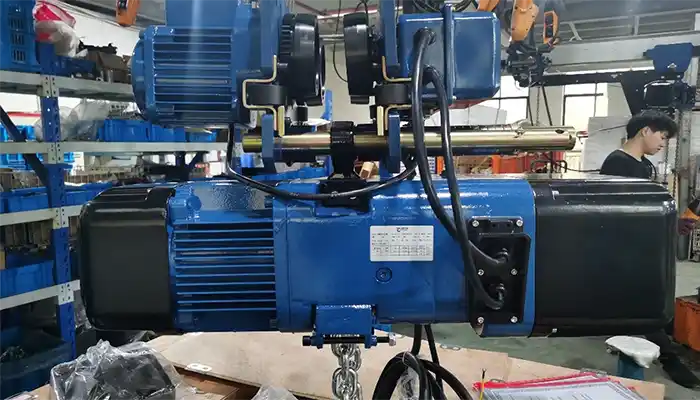

Light weight electric chain hoist with European style design for light duty crane including single girder crane, kbk crane & jib crane, etc.
Yuantai European electric chain hoist is designed and produced in accordance with international standards, with beautiful appearance and strong and durable body, the internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. It adopts the most advanced technology in the world, with fine workmanship and tight fit between the gears. Yuantai electric chain hoist have passed Chinese standards and specifications, referenced FEM and ISO standards, and adopt advanced production technology, and according to FEM and ISO standards for testing and experimentation. It is a good helper for production and material handling of contemporary enterprises.
Main Parameters of European Electric Chain Hoist
European electric chain hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards, European hoist standards and other regulations. Yuantai European electric chain hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the European electric hoist is 0.1 to 80 tons and the working class can reach M8. Our company can provide customized European electric hoists. Here are the main parameters for your reference.

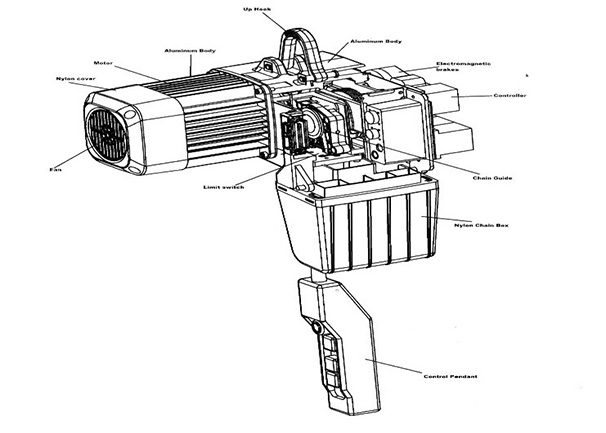

New light weight electric chain hoist drawing
The main parameters of our electric chain hoist products conform to the European electric chain hoist standard:
- The max lifting capacity of European electric chain hoist can be 50 tons.
- The lifting height of European electric chain hoist is unlimited.
- Max working class of European electric chain hoist is M8, and continue working for 48 hours.

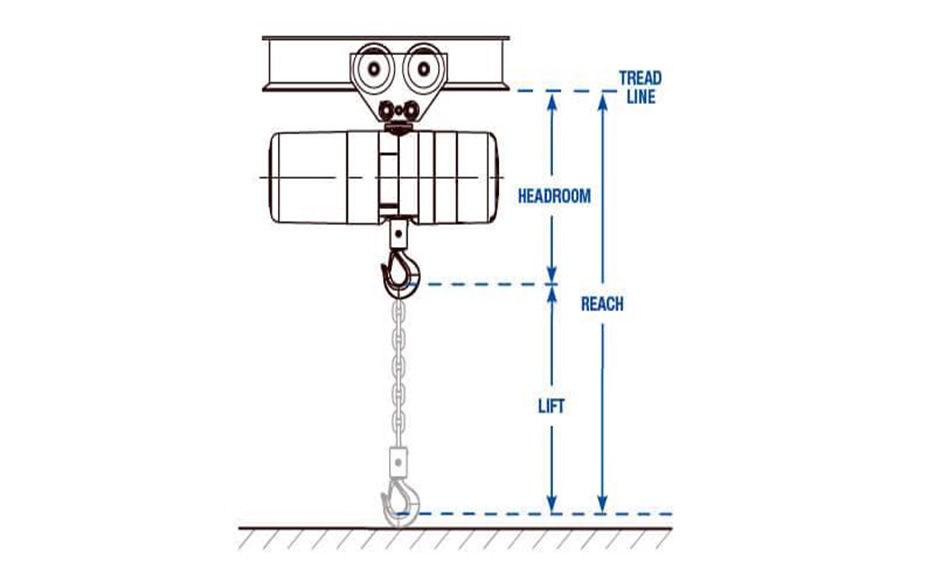

- Low headroom (the distance from I-beam bottom to the hook center) can reach 200mm.
- Ultra-low electric chain hoist (the distance from I-beam bottom to the hook center)can reach 100-150mm.
- Numbers of electric chain hoist hooks of European electric chain hoist are 1 hoist hook ,2 hooks and more than 2 hooks, etc.
- Yuantai European electric chain hoist designed for temperatures between -20℃ to +40℃ environment. The case of extreme temperature and harsh environments or beyond the operating conditions, Operators must take special measures to protect hoist operating in the case of a company licensed.
Types of European Electric Chain Hoist

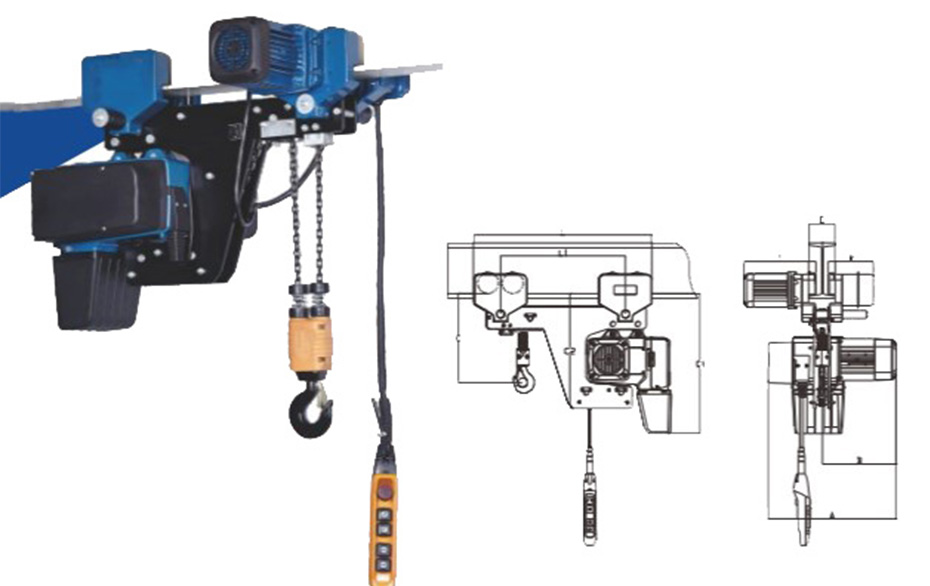

1.low headroom chain hoist
The distance from the lower edge of the I-beam to the hook center of the low headroom chain hoist can reach 200mm, which is suitable for workplaces with low plant height but strict requirements on lifting height. The distance of the traditional chain hoist is 350~400mm.

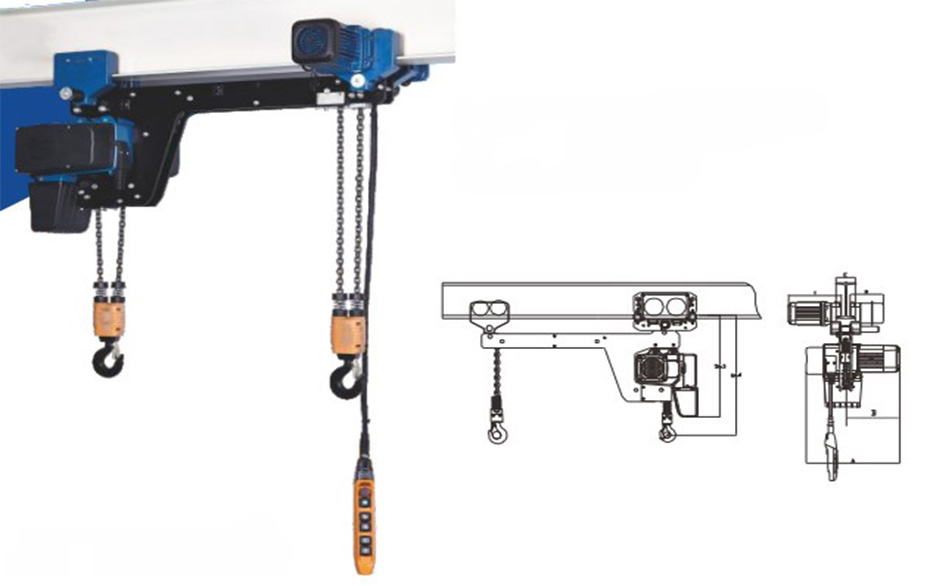

2.ultra-low headroom chain hoist
The distance between the lower edge of the I-beam and the center of the hook of the ultra-low headroom hoist can reach 100~150mm, which is mainly used in the occasions where the working space is narrow and limited.
3. double hook chain hoist
The double hook chain hoist is suitable for the automobile and aircraft manufacturing industries. Its one motor is equipped with two chains, and the two chains work synchronously (mechanically synchronously) with zero error.
Compared with the synchronous operation of the double hooks of the traditional chain hoist, our product is controlled by the contactor. Only when the density and volume of the object to be lifted are the same, the two hooks can rise and fall at the same time. When one hook is loaded and the other is not, the crane cannot keep its balance and cannot start working.

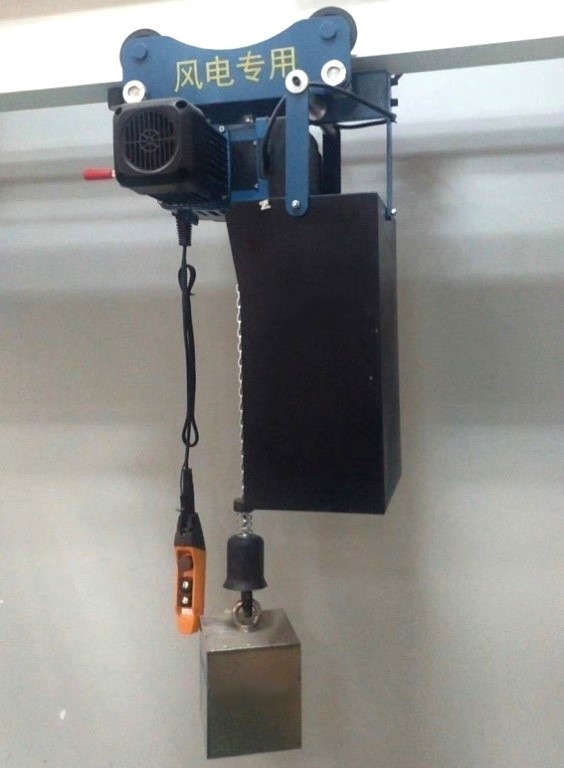

4. wind power electric chain hoist
Wind power electric chain hoist is a kind of electric chain hoist with compact structure, good airtightness, small distance between two hooks, high lifting height and fast lifting speed.
Due to the compact structure of the wind power chain hoist, the influence of wind and vibration when used outdoors can be reduced. The airtightness is good, so foreign objects cannot enter, making it suitable for lifting heavy objects in the field environment. The distance between the two hooks is small, so that it has better headroom. Due to the high height of the wind turbine cabin hoisting operation, it is required that the electric chain hoist must be equipped with a long hoisting chain. Since the hoisting operation outdoors is greatly affected by uncertain factors, the electric chain hoist must have a fast lifting speed.
All in all, the wind power chain electric hoist is most suitable for hoisting heavy objects at the rear of the wind turbine cabin.
Technical Advantages of European Electric Chain Hoist
1. European design concept
Using professional and humanized European design concept, manufacturing according to international standards, improving work efficiency and cost-effective.
2. higher configuration

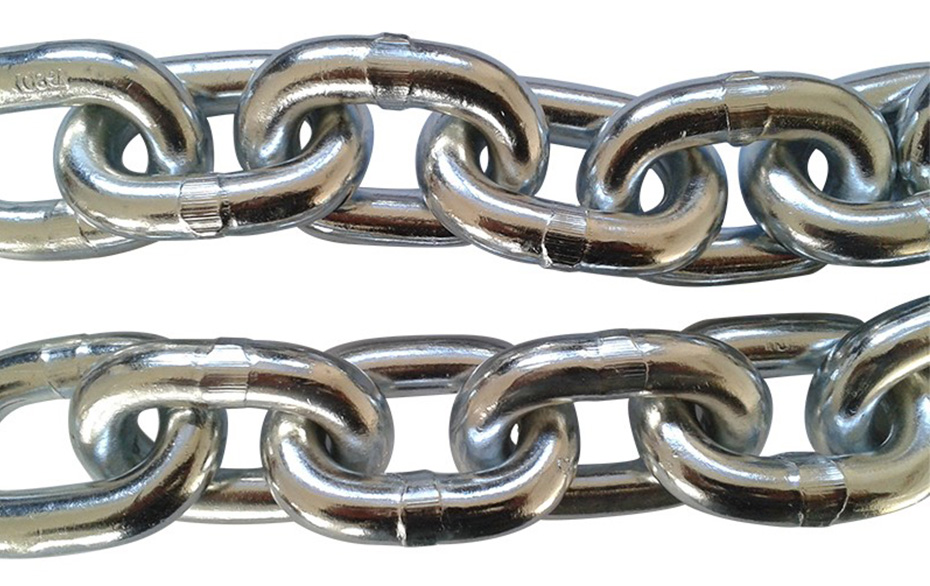

Using Japanese FEC chain or German Luther brand chain, more using FEC chain. The material of the chain is titanium alloy, which has good wear resistance, is not easy to rust, and does not need to be refueled

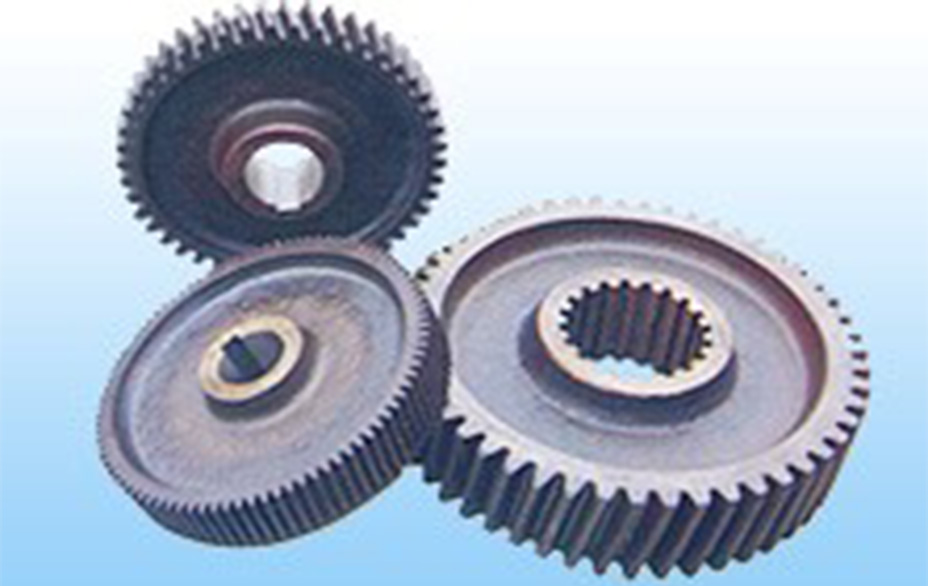

About tooth (reducer): There are two processing methods of teeth, one is gear grinding and the other is gear hobbing. Yuantai European chain hoists use gear grinding, which has a greater bite force and higher precision. The crane rises smoothly and the noise is low.
3. high working level
The highest working level can reach M8, the maximum tonnage can reach 50t, and the lifting height is unlimited.

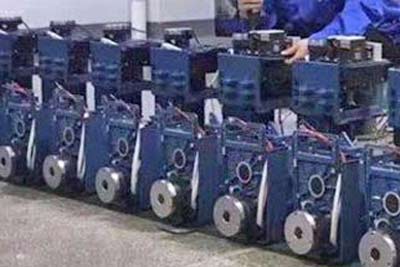

4. component modularity
The main components such as motor, reducer, etc. are configured separately and independently, which is different from the integrated design. The advantage is that if a single component is damaged, it can be replaced instead of the entire mechanism, which saves future maintenance costs.
5. maintenance free
The main drive components of European electric hoist, such as gearboxes, brakes, clutches, etc., are manufactured with special processes, which are sturdy and durable, and their excellent quality enables them to have a long service life under busy work. Due to the good design service of Yuantai chain hoists, a small amount of necessary maintenance work can be completed quickly and easily.
6. safety
Equipped with anti-skid chains, when the static load exceeds a certain proportion of the rated lifting capacity, the chain will slip and cannot be lifted to ensure the safety of the crane.
7. more fashionable casing
The material of the motor casing is die-casting aluminum, with high precision and good surface finish.
Our Service
1.pre-sale service
- Provide technical consulting services for users free of charge.
- Provide product samples, company profiles, credit certificates and other materials for users.
- Sincerely invite customers to visit our company to learn about the production process and experience the company culture.
2.in-sale service
- While customers use the products of our company, we actively provide customers with technical support, new product recommendations, and feedback on the latest market information, so as to maximize customer benefits and experience value-added services.
- In the process of product manufacturing, the relevant technical personnel of the user are invited to our company to inspect the inspection of each process in the manufacturing process, and the relevant technical personnel of the user are provided with the inspection standards and inspection results of the product.
3.after-sales service
Looking forward to your consultation, we will provide you with the most professional and enthusiastic service.If you want to know more details or any other product information, please contact us here, we will serve you wholeheartedly.
European type electric chain hoistis a new type electric chain hoist. Compared with general electric chain hoist, it has many advantages of structure and application.
Differences between European electric chain hoistand general electric chain hoist
No. |
European style electric chain hoist |
General electric chain hoist |
| 1. |
Design idea comes from Europe |
Design idea comes from Taiwan, China |
| 2 |
Modularization(motor, reducer and electric equipment were separated), wearing parts are easily replaced, eg: conductive frame |
Integrated design
Wearing parts can’t be replaced, unless replace the entire mechanism. |
|
3 |
High configuration
1) RUD chain/ FEC chain, made of titanium alloy and need no oiling.
2) Gear-grinding machining, large bite force, high precision. |
1) Chain is made of steel and easy to rust;
2) Gear goes wrong easily, and can’t repair. |
|
4 |
Smooth lifting, low noise |
Lifting and sloshing, loud noise |
|
5 |
Lift with double speed 4/1 m/min, 8/2 m/min, protecting the motor and ensure safety.. |
Lift with single/ double speed |
|
6 |
Single or double travelling speed |
|
|
7 |
The material of motor shell is die-cast aluminum. |
|
|
8 |
Max working grade is M8, continue working for 48 hours. |
|
|
9 |
The max lifting capacity can be 50 tons, the lifting height is unlimited. |
|
|
10 |
Lifting height < 20m, the pocket of chain is plastic; the lifting height >20m, the pocket is steel. |
The pocket of chain is cloth. |
|
11 |
Safety device
Anti-slip chain: when the static load exceeds 1.25 times of the rated lifting capacity, the chain will slip and can’t be lifted to ensure the safety of the hoist. |
No anti-slip chain. |
|
12 |
Low headroom can reach 200mm (the distance from i-beam bottom to the hook center) |
Low headroom is 350-400mm |
|
13 |
Super low headroom chain hoist can reach 100-150mm. |
|
|
14 |
2 hook chain hoistlifting synchronously, with mechanical control, zero error. |
Cocontactor control the 2 hook lifting, the requirements of the two sides of the same |
|
15 |
Professional Wind electricity chain hoistcan be designed |
|
