Overhead Crane with Grab Bucket for Wine & Alcohol Factory

Bridge crane with clamshell grab bucket for distiller's grains handling in wine & alcohol factory. Costumed economical single girder crane & intelligent double girder cranes are available. Overhead crane are widely use in various industrial sectors. One there is a factory building, the overhead crane will be used for material handling. Today, Yuantai crane sales manufacturer will introduce to you the travelling overhead cranes used in the winery.

General crane design for alcohol factory

Most of the overhead travelling cranes in the winery are used to catch distiller's grains, and generally adopt a double-beam crane structure, such as QD-type general-purpose open winch double-beam bridge cranes or LH-type electric hoist double-beam overhead cranes.

Because it is used to grab and hang distiller's grains, the general winery will use grab bucket as the fetching devices which is more practical. An also, the overhead crane can be designed to be duel function overhead crane,which can be quipped with hook for general material handling and grab bucket for bulk material handling.  The special intelligent crane can be customized for winery, with features of dual-purpose grab bucket and hook, low failure rate, high production efficiency, and intelligent monitoring.

Environment challenging in alcohol processing workshop

when a winery workshop chooses a electric travelling crane, it usually has to consider the working environment of the material handling crane; as we all know, the brewery of a winery is generally dark and humid, and the air is filled with The brewing elements, general metal substances are more susceptible to corrosion in this environment for a long time.

Solution for wet & humid working environments

Therefore, when professional overhead crane manufacturers design and manufacture industrial overhead crane equipment for wineries, they will add anti-corrosion coatings on the surface of the equipment to ensure that the electric overhead crane equipment can be more durable.

The bridge crane as its name implied has the bridge girder or girder spans over the workshop and supported by the runways, supported buy building facility or freestanding supporting columns. If the bridge has one beam, it is called single girder overhead crane, and two beams are called double girder overhead crane. The hot used tonnage is 5 tons, 10 tons, 16 tons, and 20 tons. All of the above have ready-made design drawings, and manufacturers can put them into production after receiving orders. If the parameters provided by the customer are non-standard, the customized design can be provided according to the specific parameters provided.

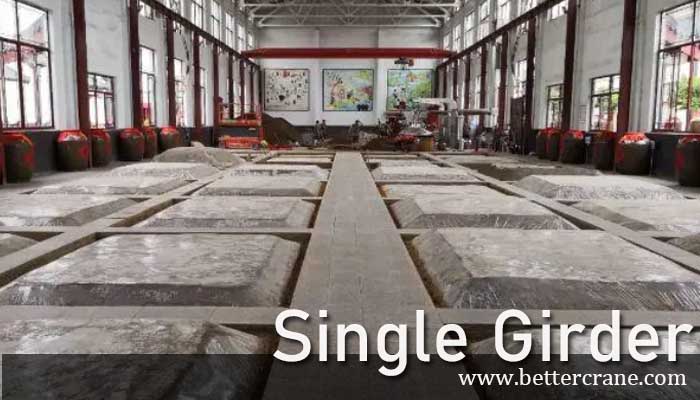

Single girder overhead crane

Overhead cranes with single girder crane designs are widely used for light loads handling, with capacity of 500kg to 20 ton. Due to single beam design, it is more economical, compared with that of double girder overhead cranes.

Scope of application grabbing distiller's grains in the fermentation workshop of winery

• Operation form: remote control ground operation
• Maximum rated lifting capacity: 10
• Lifting height: customized
• Span:  5-22.5
• Crane Type Single Girder Crane
• Rated lifting capacity 1/2/3/5/10
• Custom processing: Yes

Double girder overhead crane with grab bucket for Alcoholic factor

Double girder overhead cranes are widley used for heavier loads handling, with large capacity, longer span, for large scale wine processing workshops and factory.

Scope of application grabbing distiller's grains in the fermentation workshop of winery

• Specification:  3/5T
• Custom processing: Yes
• Lifting capacity:  3/3t
• Span:  7.5-31.5 meters
• Operation mode:  Cab, control room
• Grab:  Type Stainless Steel
• Cart speed:  2-120 meters
• Car speed:  3-50 meters
• Lifting height:  5-9 meters
• Structure Type:  Hook Grab Dual Purpose
• Model QZ

Intelligent options and customized features are available. Contact us to get your customized design.

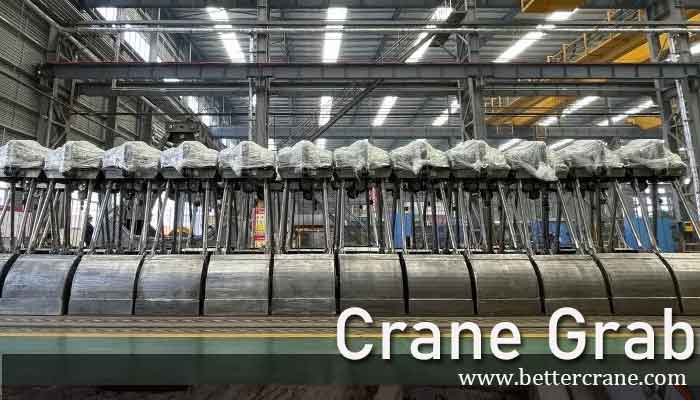

Stainless steel grab bucket for alcoholic factory

This grab bucket can also be used for grabbing bulk materials that require a clean environment, such as grain and oil products, fruit and vegetable deep processing, and so on.

• The opening and closing mechanism is housed within the grab bucket, so no hoisting rope tension is required.
• The self-weight of the grab bucket also aids in digging with a stronger grasp.
• The opening and closing mechanism is powered by a SEW motor that is housed inside the grab bucket to avoid damage, making it safer, more reliable, and performs better.
• Limit switches are used to prevent problems such as rope disorder, wire rope breakage, and motor overload.
• The grabs are made of food grade 304 stainless steel, which is healthy and environmentally friendly, corrosion resistant, and has a long service life.

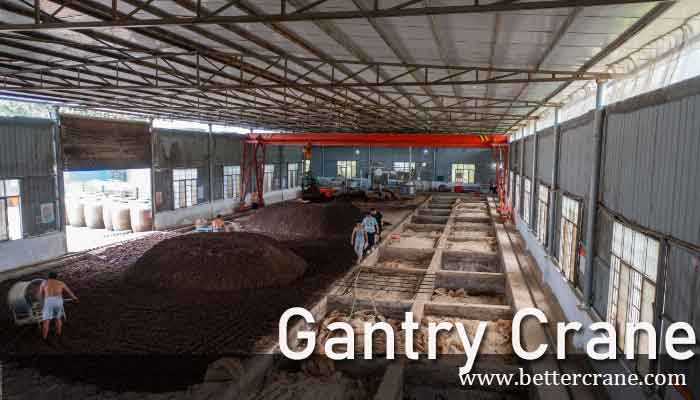

 Related: Gantry crane for wine factory

Gantry cranes are also can be usedi n wine factory. They are widely used when the blinding facility has not enough strength to installation the bridge crane runway structure,  the lifting crane, and loads. With supporting legs, which runs on the ground, the self standing gantry cranes can well solve the above mentioned problems. Based on the application conditions of your workshops and your lifting requirement, the gantry cranes can be design in to various types , such as, single girder, double girder, semi gantry, etc.
