Project Overview

A UAE industrial client required lifting equipment for a 5 ton gantry crane application. The project involved multiple lifting positions with the same 5-ton lifting capacity but different required lifting heights.

Yuantai reviewed the project requirements and supplied three European-style wire rope hoists configured for the client's specific lifting conditions.

The project provides a practical example of how buyers can select lifting equipment for a 5 ton single girder gantry crane according to lifting height, hook height, electrical supply, and site conditions.

Project Facts

The project highlights an important point for 5 ton gantry crane buyers: lifting capacity alone does not determine the correct configuration. Lifting height, hook height, available headroom, crane structure, and operating conditions also need to be considered.

Client Requirement for a 5 Ton Gantry Crane

The UAE client required lifting equipment for an industrial material-handling application where a 5 ton gantry crane was required.

The project included multiple lifting locations. Although each lifting position required a 5-ton capacity, the required lifting heights were different.

Main Requirements

• Lifting Capacity: 5 Ton
• Gantry Crane Application: Industrial material handling
• Crane Configuration: Single girder gantry crane
• Hoist Type: European-style wire rope hoist
• Quantity: 3 units
• Power Supply: 380V / 50Hz / 3-Phase
• Lifting Heights: 4.65m and 7.795m
• Hook Heights: H6m and H7.1m

For a 5 ton single girder gantry crane, the hoist must be selected according to the actual crane structure and required lifting performance. The hoist dimensions, lifting height, travel arrangement, and installation configuration all affect the final crane design.

Customized Hoist Configuration

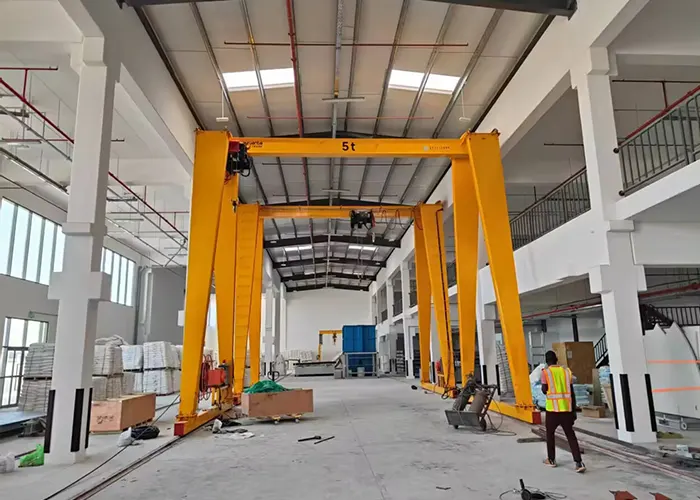

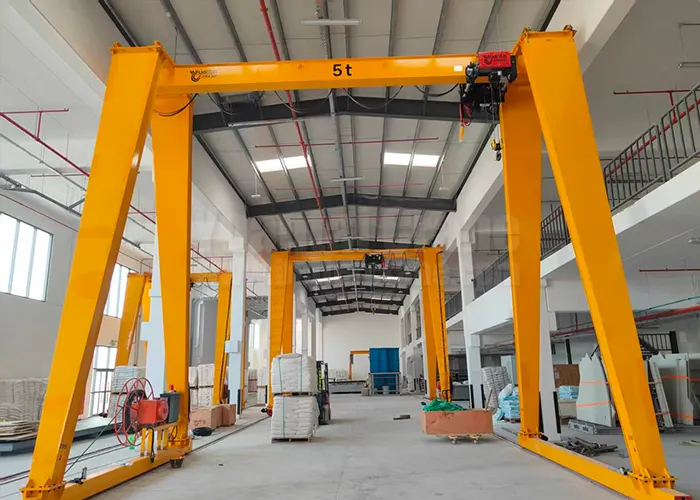

Yuantai supplied three 5-ton European-style wire rope hoists with two different lifting configurations.

This configuration allowed the lifting equipment to be matched to different working positions within the same industrial facility.

For buyers comparing 5 ton single girder gantry cranes, this is an important consideration. Two cranes with the same rated capacity may require different hoist configurations because of differences in:

• Required lifting height
• Hook height
• Gantry crane span
• Available headroom
• Crane travel distance
• Working environment
• Duty class
• Load-handling requirements

Why a Single Girder Gantry Crane?

A 5 ton single girder gantry crane can be considered for applications where a moderate lifting capacity is required and the crane can operate independently of an existing building structure.

Compared with an overhead crane installed on a building runway, a gantry crane provides an independent lifting structure supported by legs and ground-level rails or tracks.

Typical applications include:

• Outdoor material yards
• Workshops
• Warehouses
• Steel processing areas
• Fabrication facilities
• Construction material handling
• Equipment assembly areas
• Loading and unloading zones

For a 5-ton application, a single girder configuration can be considered when the span, lifting height, duty class, and operating conditions are suitable.

The final selection should be based on the complete project requirements rather than lifting capacity alone.

5 Ton Single Girder Gantry Crane: Key Configuration Considerations

A 5 ton single girder gantry crane is not defined by capacity alone.

A typical technical specification may include:

For a customized 5 ton gantry crane, these parameters should be confirmed before manufacturing.

Project Coordination and Delivery

The UAE project required coordination between technical confirmation, manufacturing, shipping, site preparation, and commissioning.

Project Timeline

• Order Initiation: The client contacted Yuantai regarding the required 5-ton lifting equipment.
• Technical Confirmation: The final equipment configurations and order details were confirmed.
• Delivery Coordination: Yuantai followed up with the client regarding delivery and installation preparation.
• Shipping: Shipping arrangements were coordinated with the logistics provider.
• Commissioning Preparation: Yuantai followed up regarding cable wiring and debugging requirements.
• Final Support: Commissioning and debugging support was coordinated with the client.

The project demonstrates the importance of coordinating the complete lifting-equipment process rather than treating equipment delivery as the final step.

What Buyers Should Check Before Ordering a 5 Ton Gantry Crane

Is 5 Ton Capacity Enough?

The rated capacity should be based on the heaviest load that the crane must safely handle.

If the project occasionally requires heavier loads, the buyer should discuss the actual load spectrum and operating frequency with the crane supplier before selecting the capacity.

What Span Do I Need?

The span should correspond to the required working coverage.

A supplier should review the required material-handling area before determining the main girder dimensions and supporting structure.

What Lifting Height Do I Need?

The lifting height should be based on the highest required load position.

For example, warehouse handling, steel fabrication, equipment assembly, and loading operations may require different lifting heights.

Do I Need a Single Girder or Double Girder Gantry Crane?

For a 5-ton application, a single girder gantry crane may be suitable when the span, lifting height, duty class, and operating conditions fall within the appropriate design range.

A double girder design may be considered when higher lifting performance, greater span, heavier-duty operation, or specific structural requirements make it necessary.

The final decision should be based on engineering calculations rather than capacity alone.

FAQ About 5 Ton Gantry Cranes

What is a 5 ton gantry crane?

A 5 ton gantry crane is a gantry-type lifting system designed to safely lift loads up to a rated capacity of 5 Ton. It typically consists of a main girder, supporting legs, hoisting equipment, travel mechanisms, electrical controls, and ground-level travel arrangements.

What is a 5 ton single girder gantry crane?

A 5 ton single girder gantry crane uses one main girder supported by gantry legs. It can be suitable for workshops, warehouses, yards, fabrication areas, and other applications where the required capacity and structural conditions are compatible with a single-girder design.

How do I choose a 5 ton gantry crane?

Start with the key project parameters:

1. Capacity
2. Span
3. Lifting height
4. Hook height
5. Duty class
6. Indoor or outdoor operation
7. Power supply
8. Control method
9. Working environment
10. Required travel distance

A crane supplier can then determine the appropriate girder, legs, hoist, motors, controls, and safety equipment.

Can a 5 ton gantry crane have different lifting heights?

Yes. Different cranes or lifting positions within the same project can have different lifting heights.

The UAE project described here used different lifting configurations while maintaining the same 5-ton capacity.

Can a 5 ton single girder gantry crane be customized?

Yes. Depending on the application, the crane can be configured according to span, lifting height, hook height, duty class, travel arrangement, control method, power supply, and environmental requirements.

Key Takeaways for 5 Ton Gantry Crane Buyers

1. Capacity is only the starting point.
A 5-ton rating does not define the complete crane specification.

2. Confirm span and lifting height early.
These dimensions directly affect the crane structure and hoist configuration.

3. Specify hook height clearly.
Hook height helps determine whether the crane can place loads at the required working position.

4. Consider the operating environment.
Indoor, outdoor, dusty, corrosive, high-temperature, and hazardous environments may require different configurations.

5. Select single or double girder based on engineering requirements.
A 5-ton application does not automatically mean single girder or double girder. Span, duty class, lifting height, and operating conditions must be evaluated together.

6. Work with a supplier that can customize the complete system.
The hoist, girder, legs, travel mechanism, electrical system, and controls should work as one coordinated crane system.

Conclusion

This UAE project demonstrates how Yuantai approached a 5 ton gantry crane application by focusing on the actual lifting requirements rather than capacity alone.

The project required three 5-ton lifting units with different lifting heights and hook heights. Yuantai configured the equipment accordingly and continued to support the project through delivery coordination, cable connection, and commissioning.

For buyers evaluating a 5 ton single girder gantry crane, the most important step is to provide complete project information—including capacity, span, lifting height, hook height, duty class, working environment, and power supply.

With these details, Yuantai's engineering team can evaluate whether a 5 ton single girder gantry crane, another gantry crane configuration, or a customized lifting system is the appropriate solution.

Need a 5 Ton Gantry Crane for Your Project?

Send us your required capacity, span, lifting height, hook height, working environment, and power supply. Yuantai can review your requirements and recommend a suitable 5 ton gantry crane configuration for your application.
