1 Ton Overhead Crane for Sale, Small Overhead Crane & Bridge Crane

1 ton overhead crane for sale America. 10 sets small overhead cranes, electric chain hoist, pendent control. Check small bridge crane specification now.

Project info of 1 ton overhead crane for sale America

Brand ：Yuantai Crane
Types of Cranes: Small overhead crane 1 ton
Date of Placing Order： 2022-03-04
Date of delivery ： 2022.4.4
Transportation ：By sea , 40 GP container*1
Payment: 50% TT
Destination port：FOB, Qingdao
Destination country：America

Main girder and end carriages of 1 ton overhead cranes for sale USA, 10 sets

Small overhead crane 1 ton for sale America, 10 sets, equipped with electric trolley electric chain hoists

Main Specifications of 1 ton overhead crane & electric chain hoist for sale America

Quantity	10 sets	5 sets
Gantry crane type	LD type single girder overhead crane	Motorized trolley travelling electric chain hoists
Lifting capacity	1 ton	1 ton
Crane span	5.28 m	/
Lifting height	5 m	5 m
Working class	A3	M3
Power supply	3-ph 480V60Hz	3-ph 480V 60Hz
Hoist control	Pendant control	Pendant control
Color	Standard	Standard

Customized features of 1 ton overhead crane & hoist

Electric chain hoist is operated by pendent control with 6 buttons double speed, 8 operation controls with 10.7m cable lines, 5 sets.
10 sets of the 1 ton small overhead crane is required to be equipped with electric motorized trolley travelling electric chain hoists.
The other 5 sets of electric chain hoists will be installed on H beam, and the drawing is presented below for reference

Customs declaration & registration information

The actual Chinese and English name of the goods: overhead crane
Chinese and English name of cargo declaration:overhead crane
Inland transportation cost from factory to port: RMB8000
Port Charge: RMB5000

Gallary of 1 ton overhead crane & hoist for sale America

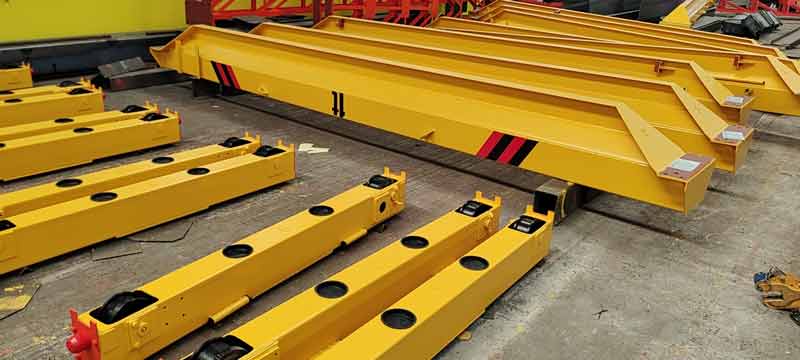

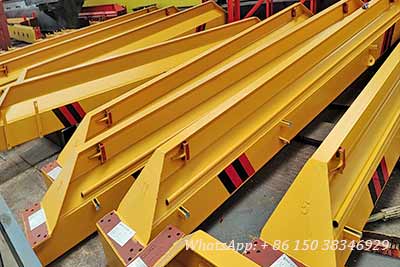

Main girder of 1 ton overhead cranes, 10 sets for sale America

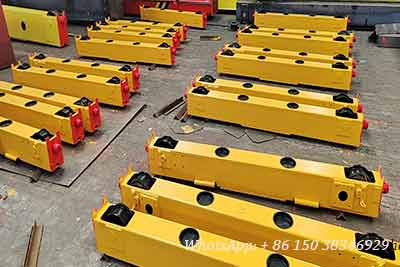

End carriages and end beams of 1 ton overhead cranes for sale America

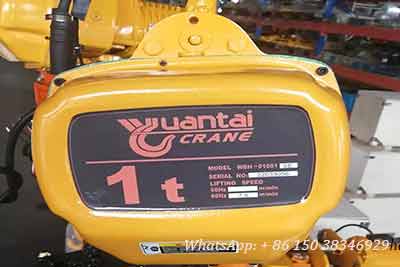

1 ton overhead hoists for sale USA, 1 ton electric chain hoist

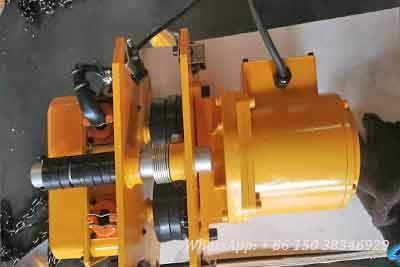

1 ton overhead hoist travelling trolley for electric chain fall hoists

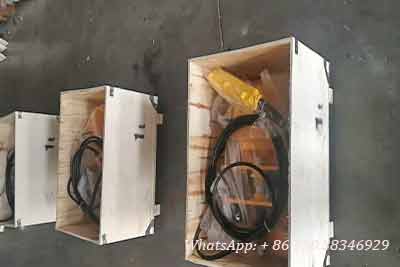

1 ton electric hoists packed for delivery to America

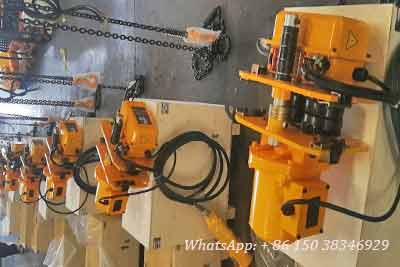

Electric motorized travelling electric chain hoist trolley for sale USA

Types of 1 ton overhead cranes

1 ton Top running overhead crane for sale USA

European style overhead crane 1 ton for sale

Underhung small bridge crane 1 ton

Underhung small overhea crane 1 ton

Options And Accessories

With the support of skilled engineers, we can designed the small overhead cranes with tailored specifications to your requirements. To ensure that you get right 1ton overhead crane, we provide a variety of options and crane parts and components to ensure your overhead crane with required features:

1 ton overhead hoist – there are different types of electric hoists for you to choose from, including electric wire rope overhead hoist, European type electric hoist 1ton , electric chain hoist, and manual hoist, etc.
Crane controls – this 1ton bridge crane comes standard with a pushbutton pendant. To achieve a safer and efficient lifting operation, wireless remote control can be a better choice.
Load limiter – it is used to prevent the small bridge crane 1ton from overloading.
Limit switches are used to sluggishly and abruptly halt the motion of the bridge, hoist, or hook block.
When the small crane is under operation, warning horns and lights are used to alert other staff members.
