Your Guide to 2 Ton KBK Suspension Crane Systems

Introduction:2 Ton KBK Crane – Compact, Customizable, and Made for Everyday Use

A 2-ton KBK suspension crane is one of the most practical lifting solutions for workshops and production lines that handle light to medium loads.

It belongs to the family of modular crane systems — often called KBK systems — where all components, like the rails, hoists, and trolleys, can be configured to suit different working environments.

What makes this crane special is its suspension design. It doesn’t take up floor space. Instead, it hangs from your ceiling or a freestanding steel structure, making it perfect for tight or open workspaces where every inch matters.

kbk crane 1 ton 2 ton for sale


Why the 2-Ton Capacity Fits So Many Workplaces

The 2-ton lifting capacity hits the sweet spot between strength and efficiency. It’s widely used across industries that don’t deal with extremely heavy loads but still need reliable, safe material handling.

Here’s why many buyers choose this size:

• Strong Enough for Daily Tasks: It easily handles machine parts, metal components, tools, and small assemblies.
• Lightweight and Cost-Effective: Compared to heavier cranes, it’s easier to install and doesn’t require major modifications to your building.
• Smooth and Safe Operation: With an electric hoist and trolley, operators can move loads without effort or risk.
• Flexible for Small Work Areas: You can run it along ceilings or lightweight steel supports — useful when there’s not enough room for traditional overhead cranes.

Whether it’s a cleanroom, warehouse, or machinery repair workshop, the 2-ton KBK crane fits right in.

Why This Guide Will Help You

We created this guide to give buyers a clear and honest look at what’s inside a 2-ton KBK suspension crane system — and how it can be tailored to your actual needs.

Here’s what you’ll get in the following sections:

• Real Project Case Study: We’ll show you a detailed example of a customized 2-ton KBK crane installed for an actual client — including span, power supply, and steel structure design.
• Component Breakdown: You’ll learn about every part that makes up the system — like rails, electric trolleys, hoists, end caps, and power cables — with practical descriptions and use cases.
• Customization Insights: Not every crane needs to look the same. You’ll see which features you can adjust, from the rail layout to the power system and hoist type, based on your workspace and budget.

This guide is not full of technical jargon. It’s made for you — the buyer who wants to make a smart investment.

What Is a KBK Suspension Crane?

A KBK suspension crane is a type of light-duty overhead crane system that uses modular track components. It’s specifically designed to be suspended — either from the building ceiling or from a self-supporting steel structure — so it doesn’t need support columns or runway beams installed at ground level.

The “KBK” name comes from a German modular crane system standard, and it's now widely recognized across the industry for compact, efficient material handling solutions.

These cranes are commonly used in areas where floor space is limited, the ceiling height is low, or the workflow changes often — like in assembly workshops or production lines.

How Is It Different from a Traditional Overhead Crane?

Here’s how KBK suspension cranes compare to traditional bridge or gantry cranes:

So, if you don’t need to lift very heavy items but still want a smooth, efficient way to move materials in your workshop — a KBK crane might be exactly what you need.

Key Advantages of KBK Suspension Cranes

Let’s look at what makes KBK cranes stand out:

• Modular Design
  The entire system is made up of pre-engineered components — straight rails, curves, switches, hoists, trolleys, and more.
  This means you can design the crane system to match your workshop layout — and change it later without needing a full rebuild.
• Lightweight but Strong
  KBK tracks are made from high-strength cold-rolled steel or aluminum profiles.
  Despite being light, they can safely handle loads up to 2 tons with smooth movement.
• No Need for Columns
  The system is suspended overhead. You don’t need to build a runway beam or install large columns on the shop floor.
  This opens up space for people, machines, and materials.
• Quieter and Easier to Operate
  Trolleys and hoists run with low noise and low resistance. Ideal for precision work and indoor use, especially where operator comfort matters.
• Quick Installation and Low Maintenance
  Because the parts are modular, installation is faster. Also, with fewer wear parts, the maintenance cost stays low.

Typical Applications of KBK Suspension Cranes

These cranes are most useful in clean, organized environments with light-duty lifting needs. Common industries and workplaces include:

• Machinery Assembly Workshops
  Move machine parts from station to station with precision.
• Electronics Manufacturing Plants
  Great for lifting delicate parts or tooling jigs with smooth motion.
• Automotive Component Lines
  Used to position engines, gearboxes, or car parts during assembly.
• Packaging and Distribution Centers
  Help move packed goods or tools without blocking floor paths.
• Maintenance and Tooling Rooms
  Lift equipment safely and precisely in small spaces.
• Furniture or Wood Product Workshops
  KBK systems are also used where frequent manual handling of medium-sized items is needed.

In short, a KBK suspension crane gives you all the lifting functionality of an overhead system — but in a lighter, more flexible, and space-saving package.

Project: 2 Ton KBK Crane Setup

Let’s explore a real-world example of how a 2-ton KBK suspension crane is used in an actual workshop. This case will give you a better understanding of what’s included in the system and how it’s customized to meet specific needs.

Customer Background

The customer operates a machinery assembly workshop, handling mid-size parts and production tools. Their operation requires safe and efficient material movement between workstations, with minimal interference on the ground.

The project was located in Southeast Asia, where the climate is humid, making anti-corrosion protection essential for the equipment's long-term use. The workshop already had basic steel columns but lacked a proper lifting solution that could fit under a low ceiling.

Project Requirements

The customer had several key requirements for the crane system:

• Crane Span: The main beam needed to be 7.3 meters long to match the width of their working area.
• Runway Length: Two sides of the KBK rail were installed, each 15.24 meters long, for a total runway length of 30.48 meters. This allowed the crane to travel the full length of the workshop.
• Electric Drive System: Both the crane and trolley movement had to be electric. The customer wanted to avoid manual pushing due to the long travel distance and the weight of the parts.
• Low Ceiling Clearance: With limited headroom, a low-profile system was necessary. The KBK suspension design helped reduce the overall height of the lifting setup.
• Power Supply: The local electrical system used 480V, 60Hz, 3-phase power, which was different from many standard setups. The crane components needed to be configured to match this power supply.

Solution Highlights

Based on these needs, the following customized solution was provided:

• Fully Electric Control System: The crane was equipped with variable frequency drives (VFD) for both long travel and trolley travel. This provided smooth acceleration and deceleration, reducing load swing and improving operator control.
• Anti-Corrosion Coating: All main components, including rails and beams, were shot blasted and then painted with anti-rust coatings. This was crucial for protecting the equipment in the humid environment.
• Flexible Mounting Options: The crane was mounted on a custom steel support frame, as the ceiling structure wasn’t strong enough for direct hanging. In other projects, these cranes can be mounted directly on the ceiling or trusses if they meet the load-bearing requirements.

This case illustrates how a standard 2-ton KBK crane can be tailored to fit real-world conditions, from the electric control system to the paint finish and structural installation.

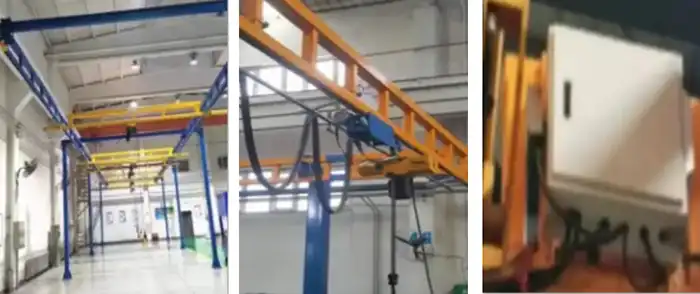

kbk rail, main girder and electrical cabinet

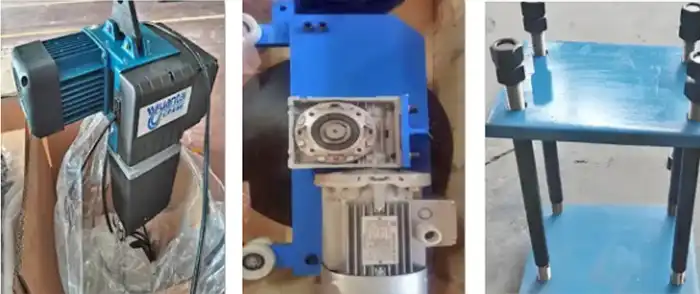

Euroepan style electric hoist, electric motorize trolley . suspension or hanging parts

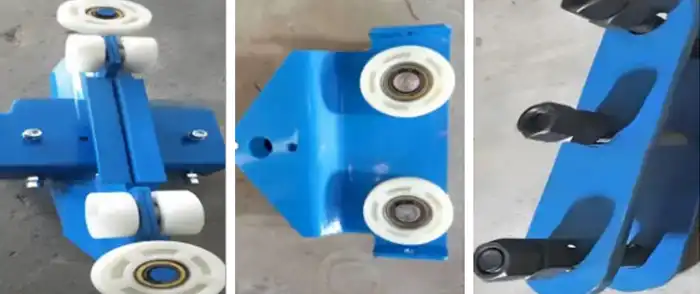

Trollesys and trolley cross beams

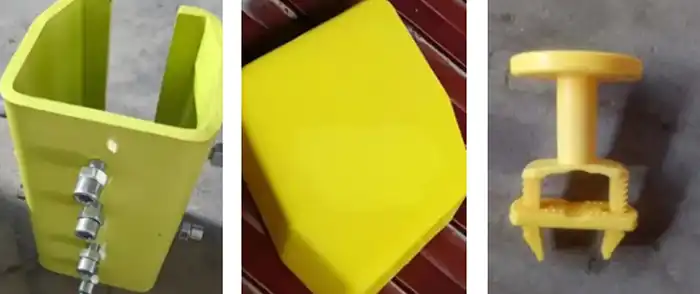

beam connectors, end cap, and cable hanger

Key Components of a 2-Ton KBK Suspension Crane

Let’s break down the key components of a 2-ton KBK suspension crane, detailing each element of the system to help you understand how everything works together to ensure smooth and efficient operation.

Track System

The track system is essential for the crane’s movement across the workshop, providing both horizontal and vertical travel paths.

• Rigid KBK Track (30.48m Total): The track system is composed of a 30.48-meter long rigid KBK track, which was shot-blasted and painted for durability and anti-corrosion protection. This ensures a long-lasting, reliable track system, especially in humid environments.
• Horizontal and Vertical Travel Paths: The track system is designed to support both horizontal and vertical movement, allowing for efficient and precise movement of the crane across the workshop floor.
• Joints, End Caps, and Bumper Blocks: The track is equipped with joints for smooth transitions, end caps to secure the track ends, and bumper blocks to prevent excessive movement and damage to the crane and track system.

Main Beam

The main beam is the core structural element of the crane, supporting the trolley and hoisting equipment.

• 7.3-Meter KBK Beam: The main beam is designed to span 7.3 meters, providing the necessary length for the crane to cover the working area. Despite its lightweight design, the beam is engineered to be strong and durable for lifting operations.
• Made of Manganese Steel: The beam is constructed from high-quality manganese steel, ensuring both strength and resilience under heavy load conditions. The steel is treated for corrosion protection, enhancing the crane’s longevity in challenging environments.

Trolleys and Hoisting Equipment

The trolleys and hoisting equipment work together to handle and move materials within the workshop.

• European-Style Electric Trolleys: The crane is equipped with European-style electric trolleys for cross travel, allowing smooth and efficient movement across the beam.
• Longitudinal and Hoist Trolleys: In addition to the cross-travel trolley, the crane system includes trolleys designed for longitudinal movement and hoisting. This enables the crane to handle material with precision in multiple directions.
• 2-Ton Chain Hoist: A 2-ton chain hoist is used for lifting materials. The hoist features motorized travel and hook lifting, which allows for smooth and controlled lifting and lowering of materials.

Power and Electrical System

The electrical system ensures smooth operation of the crane, providing power to the crane’s movement and control systems.

• Electric Cabinet with VFD Control (480V/60Hz/3Ph): The electric cabinet houses the variable frequency drive (VFD) control system, designed to regulate the crane’s movement. The system is tailored to work with the local power supply (480V, 60Hz, 3-phase).
• Control Cables: The crane system uses control cables with different specifications, including 4x1.5 mm² and 6x1.5 mm² types. These cables transmit signals and power between the crane's components for seamless operation.
• Cable Trolleys and Flexible Power Routing: Cable trolleys are integrated into the system to manage power cables and ensure flexible routing, which supports the crane’s movement and prevents cable tangling or damage.

Optional Steel Structure

In some cases, a steel structure is necessary to support the crane system, especially when the ceiling isn’t strong enough for direct mounting.

• Columns and Crossbeams: Steel columns and crossbeams are included where needed to provide the necessary support for the crane. For example, the project featured 200x200mm x 5mm steel columns and 8.1-meter-length channel steel pairs for additional structural support.

This detailed breakdown shows how each component of the 2-ton KBK suspension crane works together to provide a customized, efficient lifting solution. Whether you need a rigid track system, powerful hoisting equipment, or an optimized electrical setup, this crane system can be tailored to meet your operational requirements.

Customization Options Available for 2-Ton KBK Suspension Crane

The 2-ton KBK suspension crane is highly customizable, offering various options to ensure it fits seamlessly into your unique operational environment. Whether you’re adjusting for space, improving ease of operation, or enhancing durability, there are several ways to tailor the crane to meet your needs.

Beam Length and Span Adjustment

When it comes to beam length, customization is key to maximizing the crane's effectiveness in your workspace.

• Fit Your Space: The crane’s main beam can be adjusted to the required length or span to match the exact dimensions of your workshop.
• Flexible Coverage: Whether your area requires a wider reach for large work areas or a shorter span for tighter spaces, you can ensure the crane covers every necessary part of your facility.

Radio Remote Control

A radio remote control system offers enhanced flexibility and safety for operators.

• Operate from a Distance: With a remote control, operators can control the crane from a safe distance, avoiding the need to be in the lifting zone.
• Improved Workflow: This feature is particularly useful for managing materials in hard-to-reach spots or when a more flexible operational range is needed.

Hoist Type or Brand Flexibility

Selecting the right hoist is crucial for efficient material handling, and this crane offers options to suit your lifting needs.

• Choice of Hoist Type: You can choose from electric chain hoists, wire rope hoists, or other hoist options based on the nature of your materials.
• Brand Flexibility: The crane can be fitted with hoists from various brands, allowing you to select the one that best meets your reliability and performance expectations.

Color Customization and Environmental Coatings

For both aesthetic and protective reasons, you can customize the appearance and durability of your crane.

• Aesthetic Appeal: The crane can be painted in any color to match your facility’s branding or design preferences.
• Enhanced Durability: Environmental coatings are available to protect the crane from corrosive environments, such as humidity or salt exposure, ensuring longer life and better performance under harsh conditions.

Steel Structure Design for Freestanding Systems

If your ceiling can’t support the crane, a freestanding steel structure provides an independent solution.

• Support Without Ceiling: Custom-designed steel columns and crossbeams can be used to create a freestanding system that doesn’t require overhead support.
• Versatile Installation: This option is perfect for workshops where the ceiling structure isn’t strong enough to handle direct crane installation, offering flexibility in crane placement.

These customization options make the 2-ton KBK suspension crane adaptable to your unique needs, ensuring you get the most efficient and reliable solution for your material handling requirements.

What’s Included in a Standard 2-Ton KBK Crane Package

When purchasing a 2-ton KBK suspension crane, it’s important to understand what is included in the standard package and what optional items you can add to customize the system for your specific needs.

Included in the Standard Package

Here’s a breakdown of the key components included in the standard 2-ton KBK crane package:

KBK Track System:

• 30.48 meters of rigid KBK track, shot-blasted and painted for durability and corrosion protection.
• Includes all necessary track joints, end caps, and bumper blocks for smooth and safe crane movement.

Main Beam:

• A 7.3-meter KBK beam made from high-quality manganese steel, designed for strength and long-term reliability.
• Corrosion-resistant treatment to ensure durability in challenging environments.

Trolleys and Hoisting Equipment:

• European-style electric trolleys for smooth cross-travel movement.
• Longitudinal and hoist trolleys for efficient handling and material movement.
• A 2-ton chain hoist with motorized travel and hook lifting for precise material handling.

Power and Electrical System:

• Electric cabinet with VFD control, suitable for a 480V/60Hz/3-phase power supply.
• Necessary control cables (4x1.5 mm² and 6x1.5 mm² types) and cable trolleys for power routing and smooth movement.

Optional Add-Ons

To further enhance the crane’s functionality or suit your specific needs, you can choose from the following optional components:

• Steel Support Frame:For situations where the ceiling cannot support the crane directly, a custom-designed steel support frame is available to mount the crane securely.
• Radio Remote Control:Adds convenience and safety by allowing operators to control the crane remotely from a safe distance.
• Installation Tools:A set of specialized tools may be offered for crane installation, ensuring everything is set up correctly and safely.

Packaging and Shipping Details for International Buyers

When shipping the 2-ton KBK crane internationally, we ensure that the components are well-packaged to prevent damage during transit.

• Packaging:All crane components are securely packed using durable materials to protect against shipping impacts. This includes packaging for the track system, hoist, trolleys, and electrical components.
• Shipping:We coordinate shipping to ensure that all components are delivered to your location safely and on time. Shipping options are available for various regions, with clear tracking and coordination for international customers.
• Customs and Duties:For international buyers, we assist with any necessary customs documentation and help navigate import duties to streamline the delivery process.

By understanding what’s included in the standard package and the available optional add-ons, you can make an informed decision when purchasing a 2-ton KBK crane. Our packaging and shipping process ensures that your crane arrives safely, ready for installation and use.

Buyer Checklist: What to Prepare Before Requesting a Quote

Before requesting a quote for your 2-ton KBK suspension crane, it’s important to gather key information to ensure an accurate and tailored quote. Here’s a checklist of the essential details you’ll need to prepare:

Workshop Layout or Drawing

• Provide a layout or drawing of your workshop: This helps to visualize the space where the crane will be installed, ensuring it fits within the available area and meets your operational needs.
• Indicate key features: Mark out critical components like workstations, equipment, and any existing structures that could affect the crane's installation.

Desired Working Area and Lifting Height

• Define the crane’s working area: Specify the area you need the crane to cover, including the span (width) and length of the working zone.
• Lifting height requirements: Indicate the required lifting height to ensure the crane has sufficient clearance to handle materials at the desired height.

Power Supply and Control Preferences

• Power supply specifications: Provide details about your local power supply, such as voltage (e.g., 480V), frequency (e.g., 60Hz), and phase (e.g., 3-phase). This ensures the crane components are compatible with your electrical system.
• Control preferences: Specify whether you prefer manual controls, electric controls, or radio remote control for ease of operation.

Steel Support Requirements

• Check if steel support is necessary: If your workshop ceiling is not suitable for direct crane installation, you may need a custom-designed steel support frame. Confirm whether this is required so it can be included in the quote.
• Provide support details: If steel support is needed, provide any available information on the ceiling structure and the load-bearing capacity to assist in designing the support frame.

Preparing this checklist ensures that the crane is customized to meet your exact needs, allowing the supplier to provide an accurate quote and smooth installation process.

Conclusion

The 2-ton KBK suspension crane is a smart and highly customizable option for any workshop, offering flexibility in design and functionality. Whether you need a crane to fit a tight space, handle heavy-duty materials, or work in a challenging environment, this system can be tailored to meet your specific needs. Its modular structure, combined with the ability to adjust key features like beam length, hoist type, and control options, ensures that it will work seamlessly in your facility.

We encourage buyers to explore real-world case studies to see how this crane has been successfully integrated into various workshops, giving you a clearer picture of its capabilities and potential. Understanding the components included in the system will also help you make informed decisions when planning your own crane setup.

If you’re ready to move forward, we’re here to assist with everything from providing quotes to designing your layout. Whether you’re in need of guidance for overseas installation or simply have questions about the crane’s customization options, our team is ready to support you every step of the way. Feel free to reach out for any assistance!
