5 Ton Overhead Crane for High Temperature Superconductor Facility

Yuantai Crane 5-ton overhead crane for low-headroom workshops, ensuring safe, precise & efficient handling of sensitive stainless steel equipment.

Custom 5-Ton Overhead Crane by Yuantai BetterCrane for High Temperature Superconductor Facility

When a workshop faces unique space limits and high-value equipment handling, a standard crane won’t do the job. This case study looks at how Yuantai BetterCrane designed and delivered a tailored 5-ton overhead crane to meet the strict demands of a high temperature superconductor facility.

5 ton overhead crane for sale , Yuanai Crane Projects for your reference

Client Background

The client began operations in the early 1990s. Over the years, they built a strong reputation as a reliable manufacturer of stainless steel filling and packaging equipment. Their machines are widely used in industries where precision and hygiene are not optional but mandatory.

They provide solutions across several demanding sectors:

• Pharmaceutical – equipment that ensures contamination-free handling and accurate filling.
• Food and beverage – systems that prioritize cleanliness and product integrity.
• Chemical – machinery adapted for safe use with corrosive or reactive materials.
• Cosmetics – packaging solutions that combine precision with smooth production flow.

What sets this company apart is their practical focus on quality, innovation, and long-term reliability. Instead of only pushing for higher production volume, they invest in equipment that improves efficiency, reduces downtime, and fits seamlessly into daily factory operations.

For Yuantai BetterCrane, these priorities shaped the crane design process. The facility wasn’t looking for just another lifting tool; they needed a safe, space-efficient, and highly reliable overhead crane to handle stainless steel components without risk of damage.

Facility Overview

The workshop where this project took place was anything but standard. Unlike flat-roof industrial halls, this facility had arched ceilings that created tight headroom conditions. The available space under the lowest point of the roof was limited, leaving little margin for a traditional overhead crane design.

Key Workshop Characteristics

• Low headroom that restricted crane height and lifting options.
• Arched roof structure requiring careful planning to avoid clashes.
• Pre-installed crane tracks that had to be adapted rather than rebuilt.

Constraints to Overcome

The client’s production floor also came with its own set of restrictions:

• Limited vertical clearance meant every millimeter of lifting height had to be optimized.
• Narrow aisles restricted both crane movement and operator maneuverability.
• Strict lifting height requirements were necessary to handle tall stainless steel equipment safely.

Handling Needs

Beyond the building structure, the material handling requirements raised the bar even further. The facility processes large, sensitive stainless steel equipment that can be easily damaged if handled incorrectly. This meant the crane solution had to combine precise control, smooth operation, and reliable safety features while still fitting into the confined layout of the workshop.

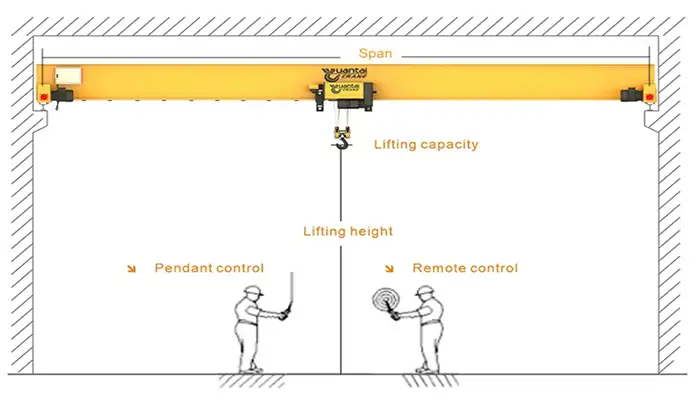

European style single girder overhead crane - main specifciations required for tailored your crane , more types of single girder overhead cranes offered from Yuantai Crane

Project Requirements

Before moving into the design phase, Yuantai BetterCrane spent time analyzing the actual working conditions inside the client’s workshop. This wasn’t a project where an off-the-shelf 5-ton overhead crane would be enough. The client needed a solution that matched their space limits, supported sensitive material handling, and allowed flexibility for future operations.

Lifting Capacity

The first requirement was the load rating. The crane had to be strong enough to handle a consistent 5-ton lifting capacity without strain. The client also wanted a margin to handle varying loads safely.

• Designed to lift up to 5 tons for daily operations.
• Capacity allowed extra safety for slightly lighter or heavier equipment.

Having this buffer ensures that the crane will not be running at its upper limit all the time, which in turn increases safety and extends the crane’s service life.

Span

Coverage across the workshop floor was equally important. The client didn’t want areas where workers had to rely on manual handling or forklifts, which could slow production and increase risks.

• The span was matched to the full workshop width.
• This gave complete coverage across the production area.

By aligning the crane span with the building’s layout, Yuantai ensured that every part of the production line could be reached without wasted movements.

Lifting Height

Low headroom under the arched ceiling made lifting height a real challenge. Maximizing every bit of available clearance was necessary for moving tall stainless steel equipment.

• Arched roof and limited clearance required a compact crane design.
• The solution had to maximize headroom without altering the building structure.

This requirement guided Yuantai toward a custom single-girder design with modifications that would allow maximum hook travel despite the restrictions.

Precision and Safety

The client’s equipment was not only heavy but also delicate. Any sudden movements or mishandling could cause costly damage. For this reason, safety and control systems were non-negotiable.

• Overload protection to stop unsafe lifts.
• Travel limit switches for controlled crane movement.
• Accurate positioning to place equipment smoothly and precisely.

These features meant operators could focus on production rather than worrying about accidents or load instability.

Multi-Crane Operation

Finally, the client requested flexibility for handling larger or awkwardly shaped components. In these situations, more than one crane might be required.

• Option for synchronous lifting when using two cranes together.
• Balanced movement to handle oversized equipment safely.

This additional requirement ensured the facility could adapt to future production needs without investing in a completely new lifting system.

Challenges

Designing a 5-ton overhead crane for this workshop was not straightforward. The building structure and production requirements created several obstacles that had to be solved through customization.

• Low clearance: only about 1100 mm under the arched roof, leaving minimal space for the crane system.
• Lifting height: the crane had to provide maximum hook travel without any major structural changes to the building.
• Sensitive load handling: stainless steel equipment required smooth, careful movement to avoid dents or damage.
• Tight layout: the crane needed to fit into narrow aisles and still allow frequent, high-duty operation.

These challenges shaped every part of the crane’s design. Instead of forcing the client to modify their building, Yuantai BetterCrane focused on engineering a solution that would work seamlessly within the existing workshop conditions.

Yuantai Crane Solution

To tackle the workshop’s unique challenges, Yuantai BetterCrane developed a custom 5-ton overhead crane tailored to the space and equipment requirements. Every component was designed to maximize clearance, ensure safety, and allow smooth operation in a tight environment.

• Single-girder custom design with a modified main beam for low headroom clearance.
• Side-connection end beams to make the most of vertical space under the arched ceiling.
• 5-ton electric wire rope hoist with precise control for careful handling of sensitive stainless steel equipment.
• Synchronous operation system to allow dual-crane lifts for larger or awkward loads.
• Advanced safety features, including overload protection, travel limit switches, and soft start/stop for smooth, controlled movement.

By combining these design elements, Yuantai delivered a crane that fits perfectly within the workshop, improves workflow efficiency, and protects high-value equipment during everyday operation.

Implementation

Once the crane design was finalized, Yuantai BetterCrane focused on a smooth installation process that minimized disruption to the facility. Working within the existing workshop layout, every step was planned for efficiency and safety.

• Track adaptation and installation: existing crane tracks were adjusted to fit the new single-girder crane without major structural changes.
• Assembly, testing, and commissioning: Yuantai engineers oversaw the full process to ensure the crane operated reliably from day one.
• Operator training and safety guidance: staff received hands-on instruction for safe and efficient crane operation, including load handling and emergency procedures.

By handling installation and training directly, Yuantai ensured the client could start using the crane immediately, with confidence in both performance and safety.

Key Features & Buyer Benefits

The crane delivered by Yuantai BetterCrane was more than just a lifting tool. It was engineered to make everyday operations safer, faster, and more reliable, tailored specifically to the client’s workshop conditions.

• Space-optimized design: fits low headroom and narrow aisles without limiting workflow.
• High-precision lifting: minimizes load sway, allowing careful placement of sensitive stainless steel equipment.
• Enhanced safety: reduces risk of accidents or equipment damage with built-in protection features.
• Improved efficiency: speeds up handling time and streamlines material flow across the workshop.
• Long-term reliability: designed for continuous use with minimal maintenance, lowering operational costs over time.

This combination of features ensures the crane doesn’t just lift loads—it supports smooth, predictable, and safe operations, giving the client peace of mind every day.

Results / Outcomes

After installation, the custom 5-ton overhead crane transformed how the facility handled its daily operations. Material movement became smoother, safer, and more predictable, directly supporting productivity goals.

• Optimized material flow across the production line, reducing delays and bottlenecks.
• Safe and efficient handling of high-value stainless steel equipment, protecting it from damage.
• Increased productivity by cutting downtime and speeding up lifting operations.
• Reliable long-term performance supported by minimal maintenance needs and strong after-sales service from Yuantai BetterCrane.

The result was a crane system that not only met the client’s immediate lifting needs but also provided a durable solution for ongoing operations.

If you want, I can now draft the Conclusion and Call to Action in the same practical, buyer-focused style to complete the full case study. Do you want me to do that next?

Yuantai BetterCrane successfully delivered a custom 5-ton overhead crane that met the strict requirements of the high temperature superconductor facility. By addressing low headroom, narrow aisles, and sensitive equipment handling, the project shows how tailored crane solutions can solve real-world workshop challenges while improving safety and efficiency.

Need an overhead crane designed for your unique workshop layout?
Get in touch with Yuantai BetterCrane today for a free consultation and customized quotation. Our team can help you select the right crane that fits your space, capacity, and workflow requirements.
