30 & 50 Ton Rubber Tyred Gantry Crane – Factory Test Overview

30 Ton & 50 Ton Rubber Tyred Gantry Crane for Sale Mexico – Factory Test Overview

Introduction

Rubber Tyred Gantry (RTG) cranes are a popular choice for moving heavy loads in ports, container yards, and large industrial areas. Unlike fixed cranes, RTG cranes have rubber tires that allow them to move freely across yards, making them highly flexible for stacking and loading containers. These cranes are built to handle heavy containers and bulky cargo efficiently, which is why they are widely used worldwide.

In Mexico, the demand for RTG cranes has been growing steadily. The country’s busy ports and expanding industrial zones need reliable equipment that can handle large volumes of cargo while fitting into tight spaces. RTG cranes fit this need perfectly due to their mobility and ability to work in outdoor environments. With increasing trade and logistics activity, Mexican companies are looking for cranes that offer strong lifting capacity combined with operational flexibility.

This case study focuses on the sale and factory testing of two RTG cranes destined for Mexico: a 30-ton model and a 50-ton model. Both cranes come with a 6-meter span and 6-meter height clearance and are designed to run on a 440V, 60Hz, three-phase power supply — fully compatible with Mexican industrial standards. The purpose here is to share practical information about these cranes, their key features, and how factory tests ensure their reliability before delivery.

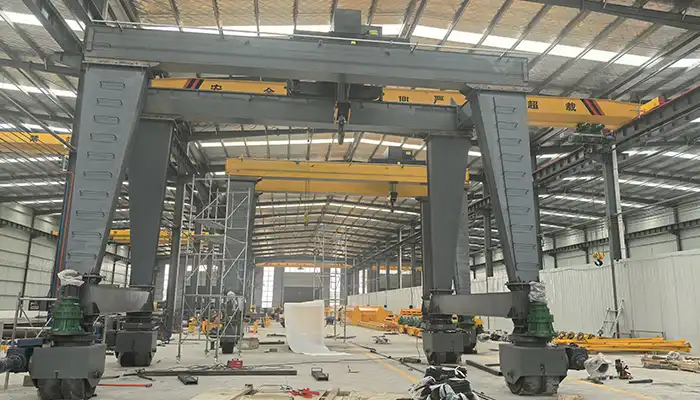

factory testing  of rubber tyred gantry crane that are unpainted

Product Overview

Here’s a detailed look at the two models of rubber tyred gantry cranes designed for Mexico’s demanding industrial and port operations. Whether you call them rubber tyred cranes or rubber wheeled gantry cranes, these machines are built to deliver reliable performance and flexibility.

Specifications of the 30 Ton Rubber Tyred Gantry Crane

The 30-ton rubber tyred gantry crane is a solid choice for medium-weight lifting tasks. It’s great for container handling and other heavy loads common in shipping yards and factories.

• Lifting Capacity: 30 tons — suitable for most container sizes and general cargo handling.
• Span: 6 meters — the width between the crane legs, allowing easy movement over containers.
• Height: 6 meters — provides enough clearance for stacking and safe operations.
• Power Supply: 440V, 60Hz, 3 Phase — matches the standard power systems used in Mexico’s industrial sites.

Specifications of the 50 Ton Rubber Wheeled Gantry Crane

For heavier lifting needs, the 50-ton rubber wheeled gantry crane offers extra strength and capacity. It’s ideal for operations requiring the movement of heavier containers or bulky industrial loads.

• Lifting Capacity: 50 tons — designed for heavy-duty lifting beyond typical container weights.
• Span: 6 meters — keeps the same span for consistent maneuverability in container yards.
• Height: 6 meters — sufficient height clearance for multi-layer stacking.
• Power Supply: 440V, 60Hz, 3 Phase — fully compatible with Mexico’s power infrastructure.

Both the 30-ton and 50-ton rubber tyred cranes provide flexibility and efficiency in handling heavy cargo. Their rubber wheels enable smooth movement across yard surfaces, making them essential equipment for busy ports and industrial zones in Mexico.

Design and Technical Features

The design of these rubber tyred gantry cranes focuses on strength, flexibility, and safety — all crucial for handling heavy containers and cargo in busy environments.

Structural Design for Heavy Lifting and Container Handling

• The cranes are built with a sturdy steel frame engineered to support heavy loads up to 50 tons.
• The 6-meter span and 6-meter height are optimized for container yard layouts, allowing easy stacking and precise handling.
• Reinforced beams and robust welding ensure durability, even under continuous daily use.

Rubber Tyred Mobility Advantages

• Unlike fixed cranes, these rubber tyred cranes roll on large, durable rubber wheels, giving them excellent maneuverability.
• This mobility means the crane can move freely around container yards or factory floors without the need for fixed rails.
• The flexible movement reduces setup time and increases operational efficiency in tight spaces or uneven surfaces.

Electrical System Compatibility

• Both models operate on a 440V, 60Hz, three-phase power supply, matching Mexico’s industrial electrical standards.
• This compatibility ensures stable performance and easier integration into existing power systems.
• Advanced electrical components and controls support smooth operation and energy efficiency.

Safety Features and Compliance

• These rubber wheeled gantry cranes meet international safety standards, including H6M classification for heavy-duty service.
• Safety mechanisms include emergency stop systems, overload protection, and reliable braking systems.
• The design also incorporates operator-friendly controls and clear visibility for safe maneuvering.

Overall, the technical design balances strong lifting capacity with the flexibility and safety needed for Mexico’s busy industrial and port environments.

Factory Testing Process

Before these rubber tyred gantry cranes leave the factory, they go through a thorough testing process to make sure everything works just right. This helps guarantee reliability and safety once they arrive in Mexico.

Overview of the Factory Test Setup

• The cranes are assembled fully at the factory, replicating real-world conditions as closely as possible.
• Testing takes place on a specially prepared test yard with all necessary equipment to simulate actual lifting and movement.
• Engineers and technicians closely monitor every step to catch any issues early.

Key Test Parameters

• Load Test: The crane is loaded with weights up to and beyond its rated capacity (30 or 50 tons) to verify structural strength and lifting mechanisms.
• Operational Stability: Tests check how smoothly the crane moves, lifts, and lowers loads under different speeds and conditions.
• Control System Performance: All control panels, sensors, and safety features are tested to ensure accurate, reliable operation. This includes emergency stops and overload protection.

Quality Control Measures and Inspection Checkpoints

• Every weld, bolt, and mechanical part is inspected for quality and correct installation.
• Electrical systems undergo thorough checks to confirm safe wiring and proper insulation.
• Final alignment and calibration ensure the crane meets all design specifications and functions without faults.

Documentation and Certification

• After passing all tests, detailed reports are created documenting the test results and measurements.
• Certificates confirming compliance with safety and quality standards are issued.
• This paperwork accompanies the crane during shipment to provide buyers with full confidence in their purchase.

This factory testing process ensures that the rubber tyred gantry cranes arrive in Mexico ready to perform safely and reliably from day one.


Operational Benefits and Suitability for Mexico Client

Rubber tyred gantry cranes offer many practical advantages, especially for Mexico’s busy ports, logistics centers, and heavy industries. These cranes are designed to handle the real challenges faced in day-to-day operations.

Advantages of RTG Cranes in Mexico’s Ports, Logistics Hubs, and Heavy Industries

• RTG cranes provide high mobility on rubber wheels, allowing them to easily navigate around container yards and industrial sites without fixed rails.
• Their ability to handle heavy loads makes them ideal for shipping terminals where containers of varying weights must be moved quickly and safely.
• They help reduce congestion by stacking containers efficiently, freeing up valuable yard space.
• RTG cranes are built tough to withstand outdoor conditions common in Mexico, including heat and dust.

Efficiency Improvements with 30T and 50T Models

• The 30-ton gantry crane covers most everyday lifting needs with reliable speed and accuracy, making it well-suited for mid-sized yards and general cargo handling.
• The 50-ton gantry crane model adds extra lifting power, ideal for heavier or oversized cargo, increasing overall yard productivity without needing additional equipment.
• Both models feature smooth control systems that reduce operator fatigue and improve precision, helping avoid delays or accidents.

Flexibility in Handling Different Container Sizes and Weights

• These rubber tyred cranes can lift standard 20-foot and 40-foot containers as well as heavier or oddly shaped cargo.
• Their adjustable spreader bars and precise controls make switching between different load types straightforward, saving time and effort.
• Operators can quickly adapt to changing yard layouts or shipment types, keeping operations running without interruption.

Adaptability to Local Environmental and Operational Conditions

• Designed to work reliably in Mexico’s climate, these cranes resist corrosion and maintain performance even in hot and dusty environments.
• Their rubber tires provide better traction on rough or uneven ground, common in some port and industrial areas.
• Electrical systems are compatible with local power supplies, ensuring steady and efficient operation without the need for costly modifications.

Overall, these rubber tyred gantry cranes offer Mexican buyers dependable, versatile solutions that improve productivity and handle the real-world conditions of their operations.

Conclusion

To wrap things up, these 30-ton and 50-ton rubber tyred gantry cranes stand out for their solid design and practical features. With a strong lifting capacity, a 6-meter span and height, and electrical systems tailored to Mexico’s standards, they’re built to handle the demands of busy ports and industrial sites. The thorough factory testing process adds another layer of confidence, ensuring each crane performs reliably right from the start.

For businesses in Mexico looking to boost their material handling capabilities, these RTG cranes offer dependable performance and flexibility. Whether you’re managing container yards, logistics hubs, or heavy industry operations, these cranes can help streamline your workflow.

If you’re interested in learning more or want a detailed quote, don’t hesitate to reach out. We’re ready to provide technical advice, answer your questions, and even arrange factory visits to see the cranes in action before you buy.
