10 Ton Gantry Crane for Sale Congo for Plastic Mold Handling
10 ton gantry crane for sale Congo for mold handling. European style box girder, fem standard electric hoist for sale Congo. Affordable advanced gantry crane!
Overview of gantry crane for sale Congo
- Crane type: European style gantry crane
- Crane specification: 10 ton 19.9m, lifting height 6.4 m
- Crane use： for mold handling
- Project location: Congo
Designing a Custom Gantry Crane Solution for a Plastic Manufacturer in Congo
In September 2021, our company received an inquiry from a new client in Congo, a powerful plastic manufacturer and distributor, who required a gantry crane for lifting molds into their injection molding machine. As the workshop lacked runway beams for an overhead crane, we recommended a European type gantry crane after carefully studying the workshop dimensions and working height requirements. The existing workshop had a clear height of 7.7m, but the required lifting height was over 5m, which was not possible with a basic type gantry crane due to the large structural height from the beam top to the hook. However, the compact and lightweight design of the European style gantry crane enabled a lifting height of up to 5.4m.
European style single girder gantry crane for sale Congo
Main Specifications of gantry crane for sale congo
- Crane capacity: 10 ton
- Crane span: 15.9m
- Cantilever length: 2.6m effective length, 3.6m total length at one side
- Lifting height:6.4m
- Gantry crane parts and components: P38 rail, cable and cable reel for 48m traveling.
- Other accessories: Rope guide, hoisting motor brake, wireless remote control.
Initially, our design was a gantry crane without cantilevers covering the entire working area in the workshop. However, machines close to the wall obstructed the crane's travel, requiring us to design a cantilever on one side to reduce the span of the crane and rail, perfectly avoiding the machines.
After finalizing the design in November, we began production to meet our client's urgent needs. Despite the tight deadline, we managed to complete all goods in just 40 days and carefully packed them for shipment to Qingdao port, ready to be sent to Congo.
Features of European style single girder gantry cranes
European style single girder gantry cranes are known for their advanced features and high efficiency. Some of their key features include:
- Compact Design: European style gantry cranes have a compact design, making them ideal for workshops with limited space. They take up less space compared to traditional gantry cranes, while still providing high lifting capacity.
- Lightweight: These cranes are lightweight, which makes them easy to move around and operate. They can be used for a wide range of lifting tasks, including heavy loads.
- High Lifting Capacity: Despite their lightweight design, European style gantry cranes have a high lifting capacity. They can lift loads ranging from 1 ton to 10 tons or more.
- Smooth Operation: These cranes are designed for smooth operation, with advanced control systems that ensure precise movement and positioning of loads.
- Low Maintenance: European style gantry cranes are designed for low maintenance, with easy access to all components for inspection and repair. This reduces downtime and maintenance costs.
- Advanced Safety Features: These cranes come with advanced safety features, including overload protection, emergency stop buttons, and automatic braking systems. This ensures safe operation and protects workers from accidents.
- Overall, European style single girder gantry cranes are an excellent choice for workshops that require high lifting capacity in a compact and efficient design.
10 ton electric hoist for gantry cranes

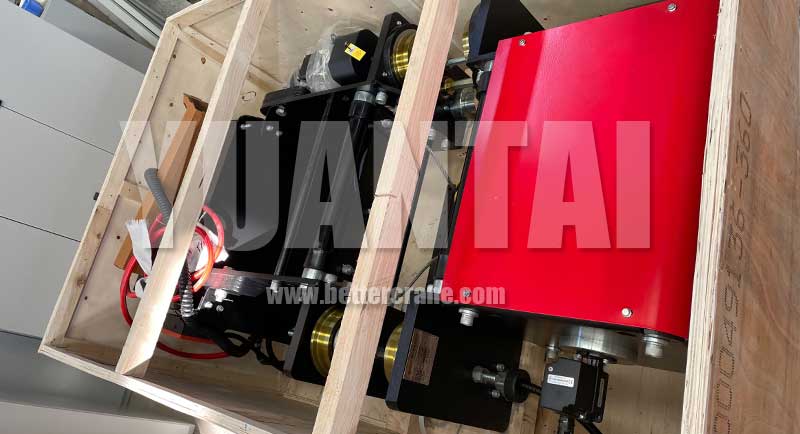

gantry crane packed into the wooden box
main girder of 10 ton gantry crane devided into 2 section for easy loading into the containers

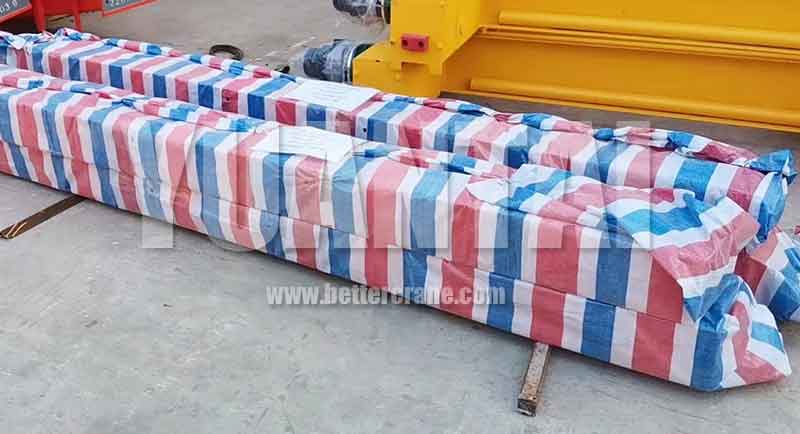

Main girder packed for delivery to congo

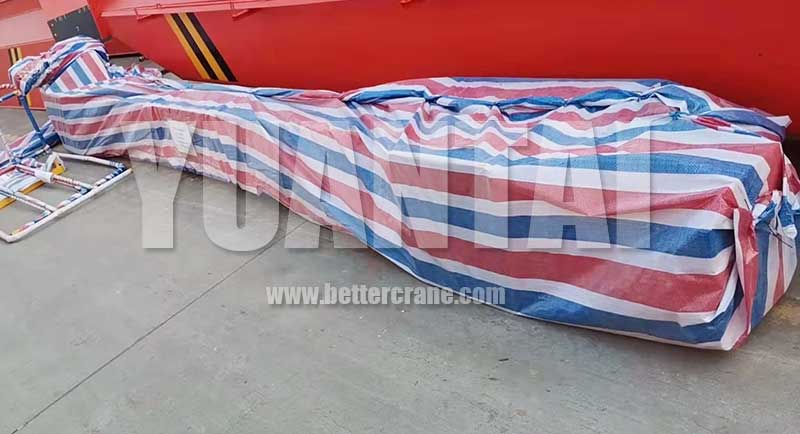

supporting legs and related parted for delivery to Congto
Our custom gantry crane solution proved to be highly effective for our client's plastic manufacturing needs. By considering all aspects of their workshop and requirements, we were able to design and produce a safe and efficient solution that met their needs perfectly.
Types of cranes for space limited workshops
There are several types of lifting cranes suitable for space-limited workshops, including:
- Gantry Cranes: These cranes are ideal for workshops that lack runway beams for overhead cranes. They can be designed with cantilevers to avoid obstacles and provide maximum coverage.
- Jib Cranes: These cranes are perfect for small workspaces and can be mounted on walls or pillars. They are ideal for lifting and moving materials over a short distance.
- Portable Cranes: These cranes are lightweight and compact, making them easy to move around the workshop. They are often used for maintenance work, repairs, and other tasks that require mobility.
- Wall-Mounted Cranes: These cranes are mounted on walls and can be used in small spaces where floor space is limited. They are ideal for lifting and moving materials in a specific area.
When selecting a lifting crane for a space-limited workshop, it's important to consider the weight and size of the materials being lifted, as well as the available space and any obstacles that need to be avoided. A professional crane supplier can help determine the best type of crane for your specific needs.
