Single Girder Gantry Crane with European Style Low Headroom Hoist

Overview of single girder gantry crane with smart low headroom hoist trolley

MH Model Low profile gantry crane adopts the advanced European style FEM standard design and manufacture processing. With the low headroom crane design, the  single girder gantry adopt the European standard low profile electric wire rope hoist configuration, crane reducer hardened surface, driven by three-in-one driven system, PLC + Frequency Conversion control, improves the overall performance of crane operation. Compared with the general type of single girder gantry crane with cd/md electric wire rope hoist, its deadweight has bean reduced more than 15%, and crane wheel pressure has been reduced 10~20%. With optimized crane profile design , the single girder low profile electric hoist gantry crane are widely used in factories, freight yard, warehouses and other places for cargo lifting.

Single girder gantry crane with low headroom wire rope hoist-5 ton single girder gantry crane for sale Philippines

Main specifications of European style single girder gantry crane

• Capacity of single girder gantry crane:1-20T
• Span of electric hoist gantry crane :7-30m
• Lifting height of low profile gantry crane :6-12m/9-12m
• Work Duty of low headroom hoist gantry :M5
• Hoist Traveling speed of fem single girder gantry crane :-20 m/min

Low profile gantry crane is a cost-effective overhead crane solution when the overhead bridge crane installation is expensive or impossible due to a need for overhead crane runway supporting structure. They are also an ideal supplement lifting solution to overhead cranes at the workstations. If you need more information about the European style single girder gantry crane, please feel free to contact us.

Advantages of single girder gantry crane with low headroom hoist trolley

• A low-profile gantry crane is used in conjunction with an European style electric wire rope hoist.
• The single girder gantry crane is commonly used to load on open ground and in warehouses.
• Gantry hoist are unrivaled in terms of design strength, durability, and construction quality.
• Low profile gantry crane plans are not site-restricted and can provide the greatest benefit in an outdoor environment.
• The outer suspension can be extended from both sides of the main beam
• It is primarily used for outdoor freight yard, material yard, and bulk cargo loading and unloading operations.
• Gantry cranes have a high site utilization, a wide operating range, and a high universality. It is commonly found in port cargo yards.

Features & components of low profile hoist gantry cranes

• It is a newly developed European style single girder gantry crane based on FEM and DIN standards, with a small limit size and low power consumption; overall processing, high precision, and low noise. Simple modular design, transportation, and installation; frequency control, smooth operation, and high efficiency;
• It is the first choice overhead gantry crane solution in various material handling places due to its lightweight, low wheel pressure, small bounded size, dependable performance, and simple operation.
• Small wheel pressure, small bounded size, could reduce early stage Engineering investment costs for plant, as well as some costs for lighting, heating, and other facilities;
• Reliable product performance, durable, so that could lower the products additional costs in the post-use process, on the one hand, using high quality and high-performance components, reducing maintenance and repair workload; on the other hand, lowering the overall gantry crane 's energy consumption

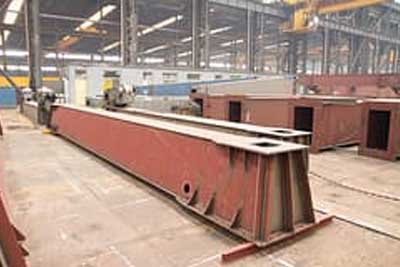

Main girder - main parts of European style single girder gantry crane

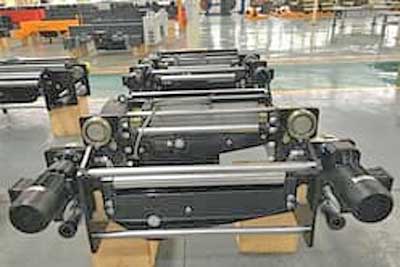

Gantry low headroom hoist - main parts of European style single girder gantry crane

Supporting leg - main parts of European style single girder gantry crane

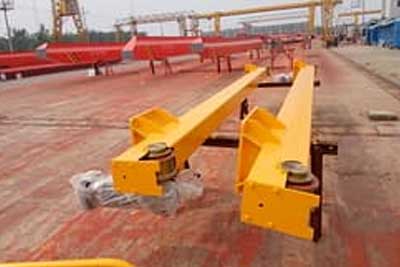

Ground beam - main parts of European style single girder gantry crane

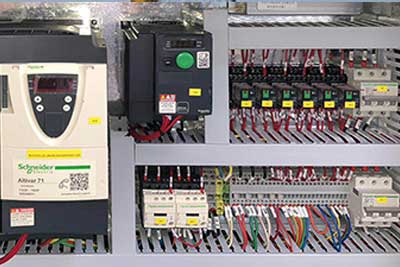

Electrics - main parts of European style single girder gantry crane

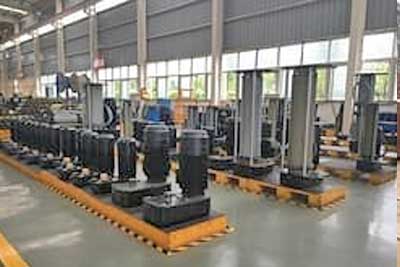

Gantry motor- main parts of European style single girder gantry crane

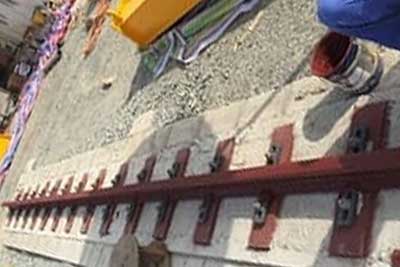

Gantry rail installation - main parts of European style single girder gantry crane

Complete assembly of European style single girder gantry crane

Applications of low profile gantry crane with European style wire rope hoist

European type single girder gantry crane could widely use in machinery manufacture, metallurgy, petroleum, petrifaction, port, railway, civil aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handling situations, esp. applied to material handling that needs precise positioning, large components precise assembly situation.

The European type single girder gantry crane is widely used in machinery manufacturing, metallurgy, petroleum, petrifaction, port, railway, civil aviation, food, paper making, construction, electronics industries workshop, warehouse, and other material handling situations, particularly in material handling that requires precise positioning and large component precise assembly.

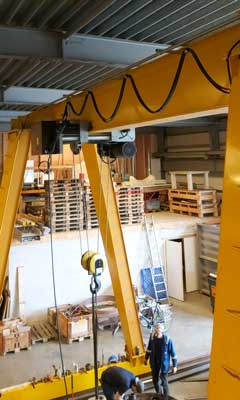

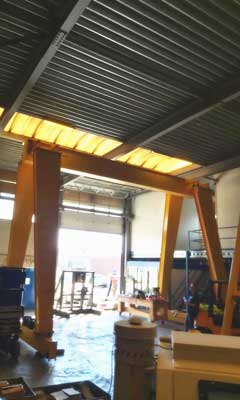

, 10 ton gantry crane single girder design with low headroom hoist for indoor use

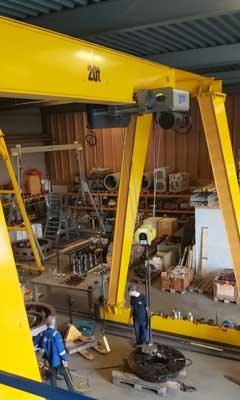

20 ton low profile gantry crane with single girder gantry crane design for sale Poland

20 ton single girder gantry crane for sale Poland

20 ton low headroom gantry crane with single girder gantry crane design for sale Poland

Frequently Asked Questions – Single Girder Gantry Crane with Smart Low Headroom Hoist

Q: What is the main advantage of a low headroom gantry crane compared to a standard design?
A: It provides higher lifting height within the same building space.
Low headroom hoists are designed to reduce the distance between the hook and the girder, making them ideal for workshops with limited ceiling height where maximizing lifting height is critical.

Q: What industries typically use this type of gantry crane?
A: It is widely used in manufacturing, warehouses, and outdoor yards.
Industries such as machinery manufacturing, steel processing, logistics, and construction benefit from its flexibility, especially where overhead cranes are not feasible.

Q: How does the European FEM design improve crane performance?
A: It ensures lighter weight, better efficiency, and longer service life.
Compared to traditional designs, FEM standards optimize structure and components, reducing deadweight and wheel pressure while improving overall operational reliability.

Q: What is the typical capacity range of this gantry crane?
A: It usually ranges from 1 ton to 20 tons.
The crane can be customized based on your application, but this range covers most workshop and yard material handling needs.

Q: Is this gantry crane suitable for outdoor use?
A: Yes, it is ideal for both indoor and outdoor applications.
Its structure is not limited by building constraints, and with proper protection (rain covers, anti-corrosion treatment), it performs reliably in outdoor freight yards and material storage areas.

Q: What kind of control system does this crane use?
A: It uses PLC and frequency conversion control for smooth operation.
This allows precise positioning, reduced load swing, and better speed control, which is especially important for handling sensitive or heavy components.

Q: How does this crane reduce long-term operating costs?
A: It lowers energy consumption and maintenance requirements.
High-quality components, efficient motors, and optimized design reduce wear and tear, minimizing downtime and repair costs over time.

Q: What should I consider before selecting this gantry crane?
A: You should evaluate load weight, span, lifting height, and working conditions.
Also consider installation space, power supply, duty cycle (M5), and whether future capacity expansion may be needed to avoid under-specification.

Q: Can this crane be customized for specific applications?
A: Yes, it can be fully customized based on your requirements.
Options include span, lifting height, control method (remote or cabin), power supply, and special features like anti-sway systems or outdoor protection covers.

Q: How does it compare with a CD/MD hoist gantry crane?
A: It is lighter, more efficient, and more advanced.
The European-style hoist reduces crane deadweight by over 15% and wheel pressure by 10–20%, improving performance and reducing structural load on the ground.

Q: Is installation complicated for this type of gantry crane?
A: No, it is relatively easy to install compared to overhead cranes.
Since it does not require runway beams or building support structures, installation is faster and more cost-effective, especially for new or temporary sites.

Q: What safety features are included?
A: It includes overload protection, limit switches, and emergency stop functions.
Additional safety options such as anti-collision systems, wind alarms, and rail clamps can be added for outdoor or high-risk environments.
