A Bahrain-based manufacturing company was in need of a material handling solution for their indoor facility. They required a crane with a lifting capacity of 5 tons, a maximum outreach of 11 meters, and a maximum lifting height of 6.5 meters under the hook. The crane was to be used for loading and unloading heavy equipment and materials in their production line.
Main specification of jib crane for sale Bahrain
After evaluating their requirements, we recommended a 5 ton jib hoist with electric rotation and remote control. The crane was designed to meet F.E.M class A5 standards and was suitable for indoor use. The power voltage required was 415 V, 50 Hz, 3PH, which was available in their facility.

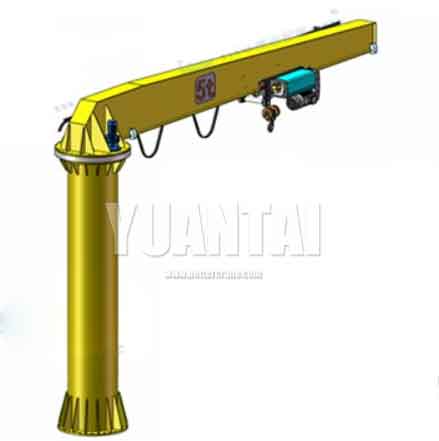

5 Ton jib hoist crane
- Max Outreach – 11m
- Max Lifting height – 6,5m under hook
- Control – remote
- F.E.M class : A5
- Electric rotation
- Indoor environment
- Power Voltage : 415 V , 50 Hz , 3PH
Ask for Jib Hoist Price
Jib crane production
The jib hoist crane was manufactured and delivery by our team of experts within the agreed timeline. The crane was designed with a lightweight yet durable structure that could withstand the load capacity and provide smooth operation. The electric rotation feature allowed for easy maneuvering of the load, while the remote control provided the operator with maximum control and precision.
11 m long rotating arm of 5 ton jib cran for sale
6.5 m column of 5 ton jib hoist with European style design
low headroom design electric hoist for 5 ton jib hoist
The jib hoist was tested and certified to ensure compliance with safety regulations. Our team also provided training to the operators on how to operate the crane safely and efficiently. The client was satisfied with our solution and appreciated our professionalism and attention to detail.
Overall, the 5 ton jib hoist provided an effective material handling solution for the client's production line. The electric rotation and remote control features made it easy to operate, while the lightweight yet sturdy structure ensured safety and durability. Our team's expertise and commitment to quality ensured that the client received a reliable and efficient solution that met their specific requirements.
Overview - What is a jib hoist?
A jib hoist is a type of crane that has a horizontal arm (jib) attached to a vertical mast, which allows it to lift and move heavy objects in a specific radius.
1. What are the different types of jib hoists?
Jib hoists are a type of lifting equipment commonly used in construction and industrial settings. There are several different types of jib hoists, including:
- Wall-mounted jib hoists: These are fixed to a wall or column and are used to lift and move loads in a specific area.
- Free-standing jib hoists: These are not attached to a wall or column and can be moved around a workspace as needed.
- Articulating jib hoists: These have a flexible arm that can be adjusted to reach loads in hard-to-reach areas.
- Telescoping jib hoists: These have a telescoping arm that can extend and retract to reach loads at different heights.
- Portable jib hoists: These are lightweight and can be easily transported to different job sites.
Each type of jib hoist has its own advantages and disadvantages, so it's important to choose the right one for your specific needs.
2. What are the weight capacities of jib hoists?
Jib hoists are typically used for lifting and moving heavy loads in construction sites, warehouses, and other industrial settings. The weight capacity of a jib hoist depends on its design, size, and manufacturer. However, most jib hoists have weight capacities ranging from 500 lbs to 5 tons or more. It is important to note that exceeding the weight capacity of a jib hoist can be dangerous and can cause accidents. Therefore, it is crucial to always check the weight capacity of a jib hoist before using it for any lifting operation.
3. What industries commonly use jib hoists?
Jib hoists are commonly used in industries that require the lifting and moving of heavy objects or materials within a limited range of motion. Some of the industries that commonly use jib hoists include construction, manufacturing, shipbuilding, and warehousing. Jib hoists are particularly useful in these industries because they can be mounted to walls or pillars and provide a versatile and efficient way to move heavy loads in a confined space. They are also commonly used in maintenance and repair work, as well as in outdoor settings such as ports and loading docks.
4. How do you safely operate a jib hoist?
Operating a jib hoist safely requires proper training and following safety guidelines. Here are some general safety tips that you should keep in mind:
- Before operating the jib hoist, make sure that it is in good working condition and that all safety features are functioning properly.
- Always wear appropriate personal protective equipment (PPE), including a hard hat, safety glasses, and gloves.
- Ensure that the load you are lifting does not exceed the capacity of the jib hoist.
- Use a tag line to control the load and prevent it from swinging or spinning.
- Keep a safe distance from the load and never stand underneath it.
- Never leave a load suspended on the jib hoist unattended.
- Follow proper lifting techniques, including lifting with your legs and keeping your back straight.
- Communicate clearly with any other workers involved in the lifting operation.
- Finally, always follow the manufacturer's instructions for operating the jib hoist.
- By following these guidelines, you can help ensure that you operate a jib hoist safely and avoid accidents or injuries.
