Warehouse gantry crane is types of gantry cranes which are used for material handling in warehouse to improve your efficiency and safety. Based on different working conditions and lifting requirements, the warehouse gantries can be designed into different configurations to fulfill your material handling work cost-effectively.
Warehouse gantry crane are a typical types of indoor crane, with the features of compact design, small size, and optional low headroom design. For heavy duty warehouse material handling, the general use single girder & double girder gantry cranes can be used, which are usually designed with a single cantilever or with no cantilever at both sides . For selecting light duty material handling equipment, the portable gantry cranes are widely selected due to cost-effective price and easy operation. The use of the warehouse gantry crane can greatly reduce labor intensity, improve operation efficiency, and realize mechanization and automation of operations.
In some cases, gantry crane for warehouse is more cost-effective than an overhead crane, because the gantry crane equipment eliminates the needs for support columns, which results in great reduction in material costs. Contact us for the most cost-effective material handling solution!
Warehouse gantry crane with single girder crane design
Single girder gantry crane is designed for general lifting purpose, with capacity from 3 ton to 20 tons. The working environment temperature is between -20℃ and ＋40℃. The single girder gantry cranes can be used in various types of warehouses with customized specifications. But with general use gantry crane configurations, they cannot be used to lift molten metal or flammable and explosive materials. The explosion proof gantry crane needs to be customized. Contact us to learn more.

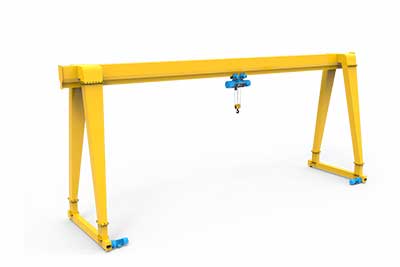

Single Girder Warehouse Gantry Crane
- Model : AQ-MH
- Load capacity : 3-20t
- Span : 8-35m
- Lifting height : 6-18m
- Work duty : A3, A4

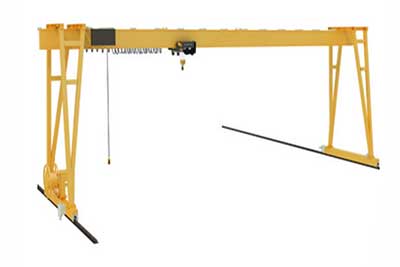

European Type Single Girder Warehouse Gantry Crane
- Model: AQ-NMH
- Load capacity: 3.2-20t
- Span: 8-35m
- Lifting height: 6-12m
- Work duty: A5 Quote

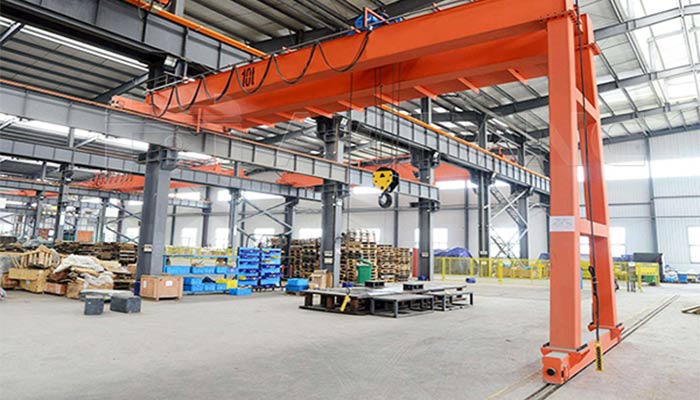

Single Girder Semi Gantry Crane For Warehouse Material Handling
- Model： AQ-BMH European Type
- Load capacity： 3.2-20t
- Span： 8-30m
- Work duty： A5
Warehouse Gantry Crane with double girder crane design
A double -girder gantry crane is ideal for loading and unloading heavy loads with capacity from 3 ton to 550 ton. Due to the large size, they are widely used in open-air warehouses and stockyards. However, the customized design, the double girder gantry cranes also can be used indoor applications. The bridge is built with a box-type double-beam welding structure, the crane traveling mechanism is driven independently, and all mechanisms are controlled from the control room.
Double Girder Warehouse Gantry Crane
- Model AQ-MG
- Load capacity 5-500t
- Span 18-35m
- Lifting height 6-18m
- Work duty A3-A7

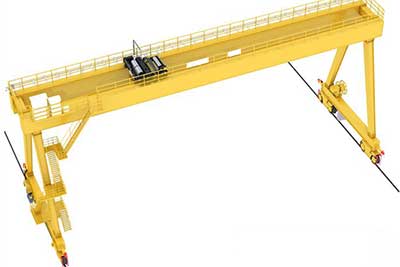

Fem standard double girder gantry crane for warehouse material handling
- Model AQ-MG European Type
- Load capacity 5-500t
- Span 18-35m
- Lifting height 6-18m
- Work duty A3-A7

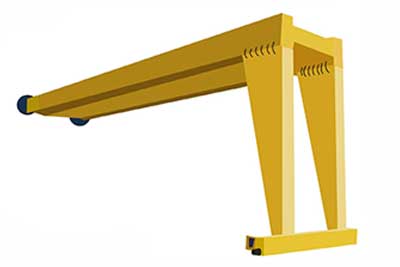

Semi gantry crane for warehouse material handling
- Load capacity 5-32t
- Span 12-30m
- Lifting height 6-12m
- Work duty A3-A6
Overhead Gantry Crane Benefits and Applications
There are several advantages to using warehouse gantry cranes. They are extremely durable and can be used in a wide range of applications. Most other types of overhead cranes require an independent support structure, such as concrete foundations or steel supporting structure, or must be mounted to the structure of the building in a certain way.On the other hand, gantry cranes do not require special support structures because they are self-supporting. This saves the owners time and money both when installing it and later if it needs to be removed.
The versatility of a g antry crane is one of its main advantages. They are available in a variety of sizes and can be used both indoors and outdoors. The ease of use is also an important factor to consider. These gantry cranes can be controlled remotely as well as manually, giving workers on the ground greater flexibility. Maintenance is minimal due to their simple design, saving the owners time and money. It should also be noted that Gantry cranes are energy efficient, which allows users to run more sustainable businesses.

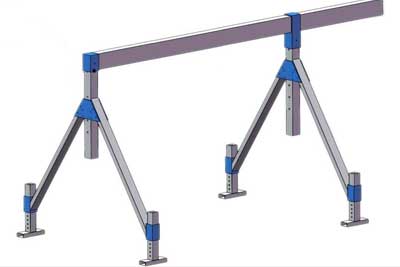

Portable gantry cranes for economical warehouse material handling
Portable warehouse gantrys are a easy and economical way to lift materials anywhere in your facility.
The portable warehouse gantry crane or small gantry crane is widely applied light loads handling in your warehouse, besides, they are also can be used in to supermarkets, factories, farms and stations. Due to its verstile design and custom crane system, it is well received among customers. We are able to manufacture portable gantry crane according to your required dimensions or based on your warehouse applications.
- Height adjustable
- Up to 6 meter span
- Lifting Weights: within 2,000 kg
- Application: substitute of cantilever crane, warehouse and workshop without power supply
- Design Standards: national standard and non-national standard
Types of portable gantry cranes for warehouse material handlings
Beniftits of portable gantry cranes for warehouse material handling
- Portability - The main advantage of portable gantry cranes over other types is that they are not stationary. They are easily transportable to different work sites or manufacturing plants as needed. Some are small enough to fit through narrow gaps or doorways and may not need to be disassembled if moved from indoors to outdoors or vice versa. Instead of legs mounted on rails, the small gantry crane sit on wheels or casters, making them suitable for any flat surface.
- Adjustability -Adjustable gantry cranes are very verstile gantry cranes which can be either fixed or portable. Portable gantry cranes are already very versatile, so having one that is adjustable adds even more versatility. The width, height, and horizontal beam can be adjusted to meet the needs of a location or the specific load(s) being lifted.
- Indoor/Outdoor Use - Gantry cranes can be used outside if they are made of a suitable material and are adequately protected. A steel gantry crane can be painted or finished to protect it from the elements. There would be a risk of rust or corrosion if this was not done.And also you can select the alumnia portable gantry crane
Benefits of selecting Yuantai warehouse gantry crane
We are China's leading lifting equipment manufacturer and supplier, offering one-stop crane services from crane design, manufacturing, sales, installation, and service all under one roof. Overhead cranes, gantry cranes, jib cranes, winches, electric hoists, travel lifts, and other products are among the most popular. Your can benifit from our warehouse crane services in the following ways:
- High quality - To ensure high quality products, we have advanced production equipment, a strict quality control system, and we inspect all raw materials and components.
- Competitive pricing- Our overhead material handling equipment is reasonably priced. Contact us right away to receive a discount.
- Optimal crane solution for your application - We have a professional technical team that will provide the most appropriate and cost-effective material handling solution to maximize your productivity and return on investment.
- After-sales service - ·We provide a comprehensive range of after-sales crane services, such as equipment installation, commissioning, and staff training. To assist customers, we will dispatch experienced engineers to the working site.
