10–20 Tons Overhead Cranes for Pipe Manufacturing in Saudi Arabia

10 to 20 Tons Double Girder Overhead Cranes for HDPE and PVC Pipe Manufacturing in Jubail, Saudi Arabia

Introduction

Overview of the HDPE and PVC Pipe Manufacturing Sector in Jubail

Jubail is one of Saudi Arabia’s largest industrial hubs, and it’s home to several major HDPE and PVC pipe manufacturers. These plants supply essential piping for infrastructure, irrigation, water supply, and industrial systems across the Kingdom. Many of these factories run 24/7 to meet large-scale project demand—especially from the construction, oil, and utility sectors.

• Major players operate in both industrial zones and free zones
• Pipes produced range from small-diameter PVC for building use to large HDPE pipes used in utilities and drainage
• Production lines are long, automated, and built for high output volumes

Importance of Efficient Lifting Systems in Supporting High-Output Pipe Production

Pipe production doesn’t just involve extrusion machines and cutters—it also depends heavily on how materials are handled between each stage. Dies used in HDPE or PVC extrusion are heavy and need to be swapped regularly. Finished pipes are often over 12 meters long and bulky. Relying on forklifts alone slows everything down and increases the risk of damage or accidents.

That’s where lifting systems come in. A reliable overhead crane system supports daily operations by making lifting safer, faster, and more consistent.

• Mold and die changes are frequent and must be handled precisely
• Long pipe bundles need to be moved to cooling racks or stacking areas without sagging or collision
• Fast lifting reduces production downtime and labor strain

Why Double Girder Overhead Cranes (10–20 Tons) Are Suited for These Operations

Single girder cranes often don’t provide the span, strength, or stability needed in pipe plants. Double girder overhead cranes offer the right mix of load capacity, hook height, and bridge stability for this kind of work. Their structure allows for wider spans and supports heavier hoists, which is exactly what’s needed for moving long pipes and heavy molds efficiently.

• Strong enough for 10 to 20-ton lifting needs common in die handling
• Higher hook travel provides better clearance over tall equipment and pipe stacks
• Designed to cover long production bays with consistent lifting speed and control

In short, for plants producing large volumes of HDPE and PVC pipes in Jubail, double girder overhead cranes are not just helpful—they’re essential.

HDPE & PVC Pipe Production Demands in Jubail

Layout of Pipe Plants: Long Extrusion Lines, Heavy Dies, Large Floor Spans

Pipe manufacturing facilities in Jubail are built for volume and size. The layout of a typical plant includes several long extrusion lines running parallel, sometimes stretching over 50 meters. These lines produce pipes in a continuous flow—from raw material feeding to extrusion, cooling, cutting, and stacking.

Because these operations deal with large, bulky products and tooling, the floor span between production lines is wide and open. Overhead space is also important, especially for accommodating crane runways and high hook travel for lifting.

• Production lines may span the full width of the factory—often 20 to 30 meters wide
• Overhead clearance is designed to allow safe lifting above equipment and stacked pipe
• Workflow moves in one direction—raw material in, finished pipe out

Materials Handled

Pipe plants don’t just handle plastic—they move heavy metal molds and very long, awkwardly shaped finished products. These require stable and well-controlled lifting systems.

Heavy extrusion dies and molds

• Can weigh anywhere from 5 to 15 tons
• Must be lifted carefully during setup and maintenance
• Often stored on the shop floor when not in use

Long and bulky finished pipe sections (up to 12–18 meters)

• HDPE and PVC pipes are typically extruded in long lengths
• Final products may be bundled or stacked before dispatch
• Long lengths are prone to bending or flexing if not lifted evenly

Daily Lifting Tasks: Tool Changes, Product Transfers, Bundle Loading

In a busy factory, lifting is a routine part of the process. Workers change dies when switching pipe sizes. Long sections of pipe must be moved from one station to another—sometimes several times. Finished products are loaded onto racks, storage frames, or directly onto trucks.

• Die changes occur multiple times per shift, depending on orders
• Long pipes must be transferred to cooling conveyors or storage without sagging
• Finished bundles need careful handling to avoid scratches or crushing

All of these tasks demand equipment that can handle large, heavy, and often awkward loads. In Jubail’s pipe industry, that means dependable overhead lifting—and that’s exactly where double girder cranes come in.

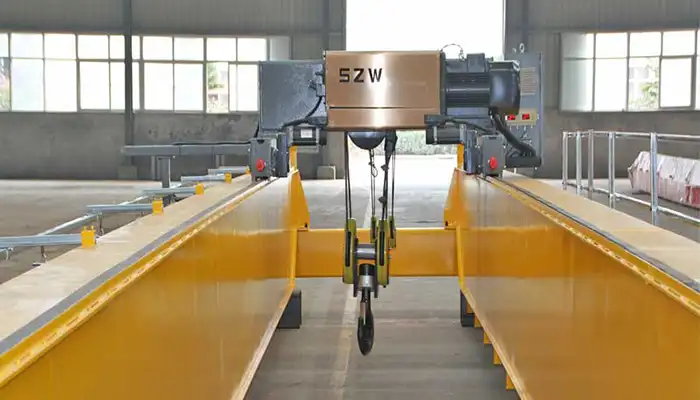

double girder overhead crane for sale

Why Choose Double Girder Overhead Cranes 10–20 Tons

Structural Strength for Heavy Loads and Long Lifting Spans

Pipe manufacturing isn’t light-duty work. Extrusion dies can weigh over 10 tons, and lifting long sections of HDPE or PVC pipe puts serious strain on lifting equipment. Double girder overhead cranes offer the robust structure needed to handle this kind of work. With two girders supporting the hoist trolley, the load is distributed more evenly—especially important when lifting heavy or awkward items across wide spans.

• Strong bridge beams reduce deflection under heavy weight
• Suitable for lifting molds, pipe bundles, and lifting jigs
• Ideal for wide-bay production workshops requiring 20–30 meter spans

High Hook Height and Precise Control for Pipe Handling

In pipe factories, you’re not just lifting heavy items—you’re lifting them over tall machinery and across long distances. A double girder design gives you higher hook travel than a single girder crane, which means more clearance for equipment and smoother stacking or transferring of long pipe sections.

• Higher vertical lift improves clearance over cooling tanks and extrusion lines
• Hoist and trolley movement allows accurate positioning for feeding, aligning, or stacking pipes
• Essential for long items that require smooth and controlled lifts

Built to Handle Harsh Industrial Conditions

Jubail’s pipe factories operate in tough environments. Between the heat, dust, and high humidity from nearby coastal air, crane systems need to be durable. Double girder cranes are built for continuous use and can be equipped with protective coatings, sealed electrics, and high-duty hoists.

• Heavy-duty hoist mechanisms rated for repetitive industrial use (FEM M5–M7)
• Coated steel components resist corrosion in humid, dusty air
• Reduced wear and maintenance even with 2- or 3-shift operations

Key Crane Features for Pipe Manufacturing

Capacity Range: 10–20 Tons for Typical Load Types

This capacity bracket covers most lifting needs in HDPE and PVC production. Whether it's changing a 12-ton mold or lifting bundled pipe sections, 10–20 tons provides a safe and flexible range without overdesigning the system.

• Suitable for mold handling, pipe transfer, and machine servicing
• Allows room for future growth or production scale-ups

Long Span Options to Cover Wide Factory Bays

Pipe production workshops are typically wide, with multiple extrusion lines operating in parallel. Double girder cranes can be configured with long spans—up to 30 meters or more—without compromising lifting performance.

• Ensures full coverage across wide bays
• Reduces need for multiple cranes in the same zone

Robust Hoist Mechanisms with Industrial Duty Ratings

Durability matters when lifting is a daily task. The hoists used in these cranes are typically rated for medium to heavy use, capable of handling frequent starts and stops.

• Standard FEM ratings: M5 to M7, depending on load frequency
• Reliable braking systems and motor protection
• Hoist options available for both wire rope and electric chain

Custom Features for Pipe Production Workflows

Every plant is a little different, and cranes can be customized to match your process.

• Dual hoists: Lift long pipe sections from both ends to avoid bending or imbalance
• Walkways and platforms: Allow safe access for crane inspection and maintenance
• Anti-sway and inverter-controlled drives: Provide smoother lifting and more accurate pipe positioning, especially useful when lowering products into molds or stacking racks

These features not only improve safety and efficiency but also help protect the product during lifting—critical when working with plastic pipe that can flex or scratch easily.

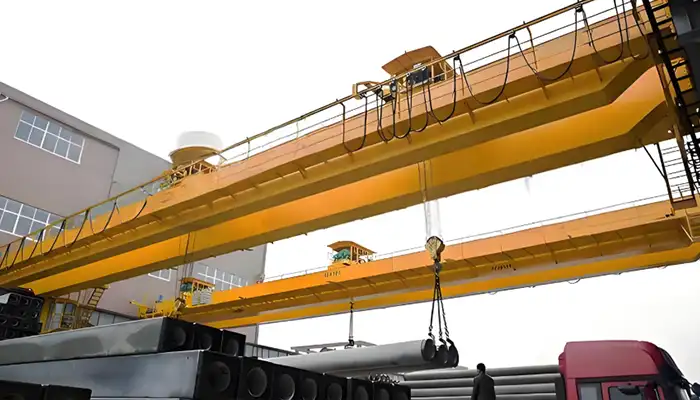

double girder overhead crane  with double trolleys 7.5 ton + 7.5 ton

Benefits to Pipe Production Operations

Reduced Damage When Moving Long Plastic Pipe Bundles

Handling long, lightweight HDPE or PVC pipes isn't as simple as it seems. If not supported evenly, these pipes can bend, deform, or scratch. Double girder overhead cranes allow for controlled lifting from both ends using dual hoists or spreader beams, minimizing the chance of damage.

• Balanced lifting of 12–18 meter pipe lengths
• Less contact and dragging compared to forklifts
• Reduces product rejection due to surface marks or bends

Safer Handling of Molds and Dies Compared to Forklifts

Heavy molds can weigh up to 15 tons, and moving them with a forklift in tight factory spaces is risky. A properly installed overhead crane offers more precise control and reduces the chance of tipping or collisions.

• Lifts molds vertically from storage or machines
• Improves safety for maintenance staff and nearby operators
• Avoids floor traffic congestion caused by forklifts

Faster Mold Changes = Higher Production Uptime

In pipe production, switching molds is a regular part of the job—especially when product sizes vary from order to order. The faster and more accurately a mold can be changed, the less downtime the extrusion line faces.

• Double girder cranes allow quick, stable mold lifting and lowering
• Reduces overall line stoppage time
• Supports multiple shift operations with reliable cycle performance

Supports Automation and Integration with ERP or Production Systems

Modern overhead cranes can be more than just lifting machines. Many come with sensors and control interfaces that integrate with a plant’s broader automation or ERP system. This means better data, smarter maintenance planning, and more streamlined operations.

• Load tracking and operation logs for quality and planning
• Predictive maintenance alerts to avoid breakdowns
• Remote diagnostics and system feedback to plant management

Environmental & Structural Adaptations for Jubail Facilities

Corrosion-Resistant Coatings for Coastal Humidity and Industrial Fumes

Jubail sits on the Gulf coast, and many pipe plants are exposed to salty air and fumes from nearby industrial zones. That’s hard on metal components. Cranes installed here need to be built with protection in mind.

• Use of epoxy or zinc-rich primer coatings on steel structures
• Stainless or galvanized fittings where appropriate
• Enclosed, sealed electrical boxes and components

Rugged Electrical Systems for High Ambient Temperatures

Temperatures in Jubail can easily exceed 45°C in summer. Electrical gear that isn’t rated for high-heat environments can suffer premature failure or trigger shutdowns. Crane systems must be built to cope with these extremes.

• High-temperature-rated motors and cables
• Cooling fans or ventilated enclosures for control panels
• Thermal overload protection for motors and hoists

Designed to Match Existing Runway Beams or Integrate into New Workshops

Many pipe plants in Jubail are expanding or upgrading. Whether you’re fitting into an existing facility or designing a new one, crane structures must be adapted to suit your layout and available steelwork.

• Custom span and support designs based on actual bay width
• Flexible end carriage options for connecting to new or old runway beams
• Load testing and layout drawings provided during the planning phase

Options for Explosion-Proof or ATEX Components if Operating Near Petrochemical Zones

Some pipe factories sit close to petrochemical complexes or use flammable materials in cleaning or processing. In these cases, you may need cranes with explosion-proof features.

• Explosion-proof motors, control panels, and limit switches available
• IECEx or ATEX-certified components to meet safety codes
• Zone-rated crane designs for hazardous working environments

These environmental adaptations make double girder cranes not just functional—but reliable and long-lasting in Jubail’s demanding conditions.

Selection Guide: Matching Crane Specs to Your Plant

Choosing the right double girder overhead crane for a pipe manufacturing plant isn’t just about lifting power. You need a system that fits your workflow, factory layout, and the size and weight of the items you handle every day. Here’s how to break it down.

Load Chart Planning: Mold and Pipe Weights + Safety Margin

Start by listing all the heaviest items you expect the crane to handle—dies, molds, pipe bundles, jigs, or even machinery parts. Add a safety margin (usually 20–25%) to account for unplanned variations in load.

• Typical molds: 8–15 tons
• Pipe bundles: 3–6 tons depending on length and quantity
• Safety margin ensures you’re not lifting near the crane’s max limit every time

Determine Required Lifting Height for Pipe Stacking or Equipment Clearance

Next, look at the vertical space. Pipes are often stacked or lifted over tall extrusion machines. If the hook height is too low, you may hit equipment or limit your lifting options.

• Measure from the floor to the highest obstacle or machine
• Add extra clearance for the hook, sling, and load swing
• Don’t forget about the maximum stacking height for bundled pipe

Crane Span Planning Based on Workshop Width and Aisle Layout

Most HDPE/PVC factories have multiple bays or wide shop floors. Your crane’s span should cover all the production lines that need lifting support, without oversizing the system.

• Measure the clear width between crane runway beams
• Confirm runway strength and rail alignment if using existing beams
• If designing new, coordinate crane span with bay layout and any future expansion

Choose Appropriate Control System: Remote, Pendant, or Cabin

Different plants have different control needs. For open work areas, a pendant is often fine. For high-bay setups or tight control over mold positioning, radio remote or cabin control may be better.

• Pendant control: Simple and cost-effective
• Radio remote control: Gives operator more freedom to move around
• Cabin control: Best for long travel distances or complex operations with multiple cranes

The right control system can improve operator comfort, reduce fatigue, and boost overall safety during daily lifting tasks.

Conclusion & Inquiry Prompt

Double girder overhead cranes in the 10–20 ton range are a smart match for the demands of HDPE and PVC pipe manufacturing in Jubail. They give you the strength to lift heavy molds, the reach to span wide workshops, and the precision to handle long, delicate pipe sections without damage.

If you're running a pipe factory in Jubail—or planning to expand—investing in a properly sized, durable crane system will save time, reduce wear on equipment, and make your lifting safer and more consistent.

Need help designing the right crane for your plant?
We specialize in overhead cranes for plastic and pipe industries in Saudi Arabia. Contact us for a detailed consultation, layout advice, or a customized quote based on your plant’s exact needs.
