10 Ton Single Girder Overhead Crane Sold to Nigeria, Good Price

10 ton overhead crane for sale Nigeria good price. 10 Ton bridge crane, single girder & top running design, with low headroom hoist for low ceiling workshop. Check 10 ton single girder overhead crane specifications and production to get your custom overhead crane.

European style overhead crane 10 designing drawing - Yuantai single girder overhead crane series

Overview of 10 ton overhead crane project in Nigeria

• Crane type:  single girder overhead crane
• Crane specifications: Lifting capacity 10 ton, Span 19.24m, Height 5.8m
• Application: Steel factory for stainless steel production.
• Project Location: Nigeria

Background and lifting requirements on overhead material handling crane

The client is a steel factory which has a low ceiling workshop which need an overhead crane to help loads such as stainless steel products and others to improve the production line efficiency and safety.

While increasing production and the volume of steel moved on a daily basis. Because of the increased volume, their fleet of trucks was constantly transporting and delivering stock, and their bridge crane application cycles increased significantly due to constant loading and unloading.

Our client required an efficient solution to ensure they had the most dependable bridge cranes to avoid downtime and handle a high-demand operating environment.

They prefer the European bridge crane design scheme over the traditional bridge crane design scheme.

10 ton overhead crane solutions for low ceiling workshops

Design that is small FEM standard overhead cranes are typically good choices for workshops with limited space. The most suitable overhead travelling crane solution for the existing Nigeria stainless steel production workshop is a European style hoist crane 10 ton, which not only increases the lifting height in the space limited workshop but also improves their working efficiency and safety.

After learning the specifics of our customer's requirements, we quickly sent him a price quotation and technical drawing. The crane application condition is better understood during email and WhatsApp communication. There is no supporting rail beam on the bracket in the new stainless steel workshop. Our engineer designed the supporting rail beam across their workshop based on their workshop dimensions in order to provide adequate support for the 10 ton overhead crane.

The Nigerian customer decided to place the order after receiving confirmation on the 10 ton overhead crane details.

Two sets of ten-ton overhead cranes have now been completed and are ready for export.

Production & Delivery of Overhead Crane For Sale Nigeria

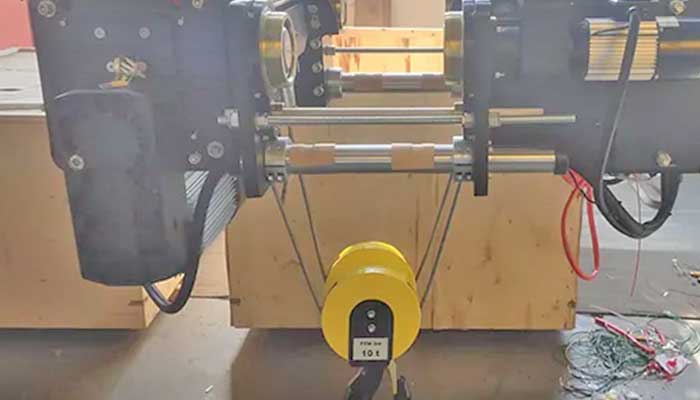

 10 ton electric hoist with low headroom design for sale Negeria

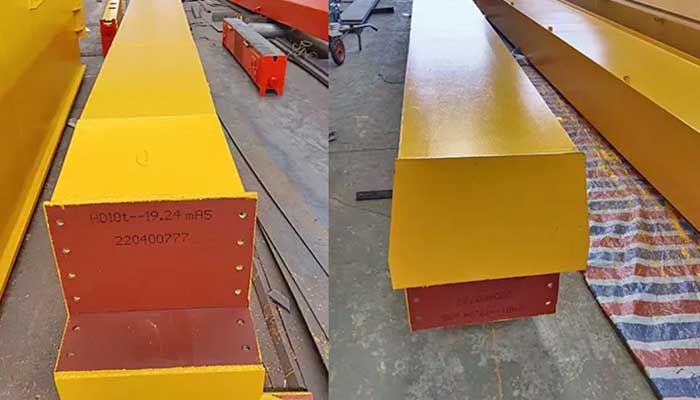

 Main girder of overhead crane for sale Nigeria

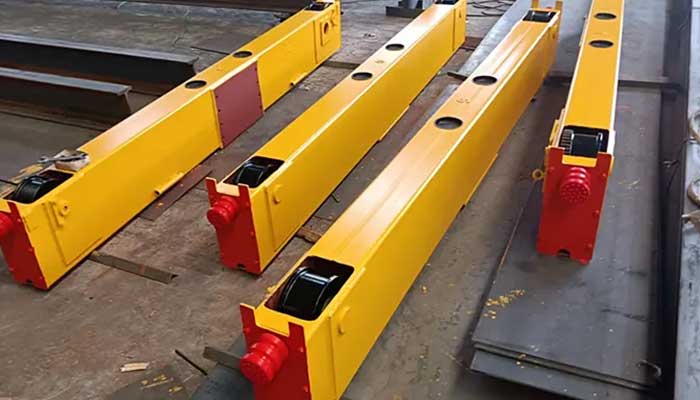

 End carriages of single girder overhead crane 10 ton for sale Nigeria

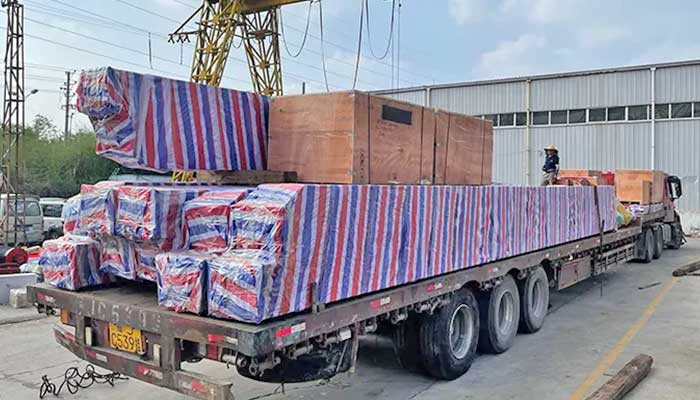

 Package & delivery of 10 ton  top  running single girder overhead  crane for Nigeria

Why Choose to  Yuantai Cranes as your crane supplier ?

Low headroom cranes are a new type of single girder overhead crane designed to European standards, with small dimensions and light dead weight. In comparison to traditional overhead cranes with CD/MD rope hoists, the limiting distance from hook to wall is the shortest, and headroom is the smallest, allowing 10 ton low headroom cranes to work closer to the front, and lifting height to be higher, increasing the effective working space of the workplace.

• Competitive pricing, a high-quality overhead crane, and an experienced support team.
• Quick delivery.
• ·Professional staff with accurate answers to your crane questions and provide information and crane drawings for building design and/or current layout.
• Assist with assembly or installation questions over the phone, email, or video as soon as possible.
• Installation and operation instructions.
• Crane Quotes that are Quick, Free, and Competitive.

Related product -European style single girder overhead crane

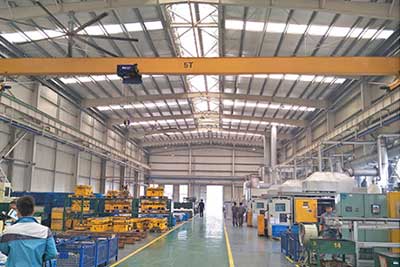

Single Girder Overhead Crane with European Style Design

The European Single Girder Overhead Crane has a high configuration and was developed using advanced design technology in accordance with the European FEM standard.

• Capacity:-20 T
• Crane span : 7.5-25.5 M
• Max.Wheel Load:13.5~90.94 kn
• Traveling Rail:P24~P43

Customized overhead crane are available based on your lifting requirements and application conditions.

Single girder overhead cranes of European style based on fem standards have the most cost-effective steel structures, hoisting mechanisms, and accessories. Large-scale use of high-strength materials reduces overall weight while also improving machine carrying capacity. The maximum distance from the hook to both sides is short, but the working area is large. With a lower height above the rails, it maximizes factory building space.

Single girder electric hoist overhead crane could be widely used in many industries' workshops and warehouses to handle materials. They are populared to be used in applciations and places such as, manufacturing, warehouse, logistics, food, paper making, electronics industries workshop, and other material handling situations are examples. The M5 working class lifting hoist has a double lifting speed. ABM German brand motor is used. SEW European brand gear motors are used in the traveling motor. Cross-country and long-distance travel have variable travel speeds. Siemens is the brand of electric parts. The IP 54 high class of protection is used. Under ISO standards, the working class can reach the A5/M5 class.

Get your overhead crane design for Nigeria

Yuantai Crane, a well-known overhead crane supplier in Nigeria, offers a diverse range of cranes for both light duty applications and demanding processes.

Our overhead cranes are used in a variety of industries, including steel fabrication, coil handling, power, defense, railroad, automotive, and paper milling, as well as specialized environments such as medical, semi-conductor, biotechnology, and food production.

Looking for a professional and trustworth material handling solution that goes above and beyond your expectations? Leave us a message down blow to check what we can do for you and what we can do to save your crane cost now.
