32 Ton Gantry Crane for Sale Uzbekistan, Truss vs. Box girder Design

Gantry Crane 32 ton for Sale Uzbekistan, good price. Compare Truss girder vs. Box girder gantry crane for you to select most suitable gantry crane design !

Background of 32 ton gantry crane project in Uzbekistan

Our working connection with our Uzbekistan agent is excellent. Yuantai places a high value on the creation and upkeep of competent international agents. The two parties have collaborated with clients in Uzbekistan for mutual gain and win-win outcomes. Together with customers from Uzbekistan, Yuantai finished the project.

Lifting requirements for the 32 ton gantry cranes

Uzbekistan's gantry crane is used to lift steel coils. Yuantai pays special attention to the production and manufacturing of 32 ton gantry crane with truss girder design due to the low temperature and complicated site conditions.

The Uzbekistan customer appoints a professional supervisor to inspect the 32 ton crane , and our company's products are manufactured with high quality which wins long term cooperations.

The 32-ton gantry crane is currently being packed and will be shipped to the customer site soon.

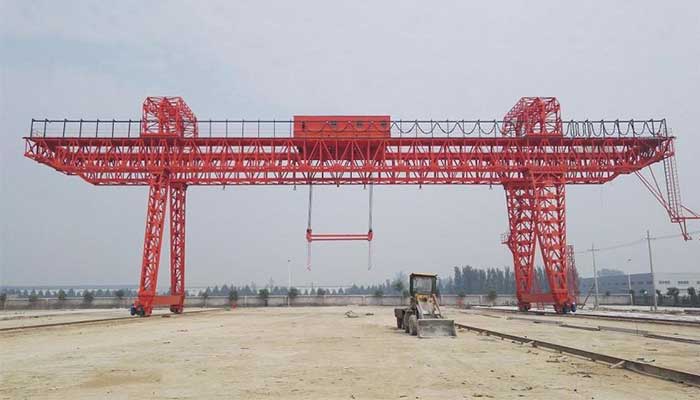

 32 ton gantry crane with truss girder design - Yuantai Double Girder Gantry Crane Series

Features of truss girder gantry crane 32 ton

• Wind-resistant truss girder.
• The trolley power supply is built with profiled rails, a conductor bar, and a cable conductive device system.
• Standardization, seriation, and generalization of components
• Adapted to the needs of the user in terms of working environment, power source, and other technical requirements. In addition, span is designed and manufactured in accordance with the needs of the users.

Advantages of truss gantry cranes

• The main beam camber will be designed as Span*1-4/1000.
• Steel Grade: Q235 or Q345.
• Sa2.5 shot-blasting for the main girder and supporting beam.
• High-quality epoxy zinc-rich painting.
• Electricity and equipment.
• Conductor power supply options include a cable reel or a busbar.
• Conversion of frequency, double speed, single speed, and All hoist and crane movements are independent and can be run concurrently. Different design duos are available to meet crane applications.
• The entire layout provides adequate protection against hazardous working conditions. For example, a gas workshop.

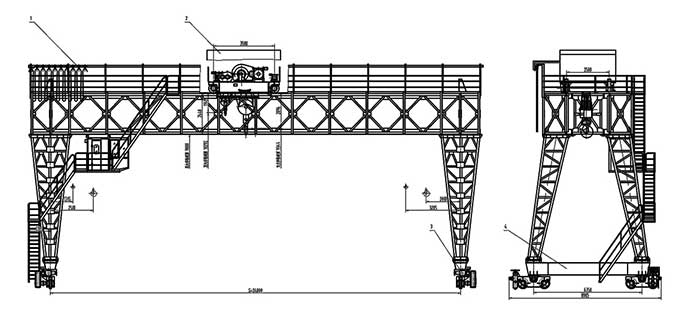

Overview of Truss girder gantry crane for sale Uzbekistan

A double girder truss type gantry crane is ideal for outdoor applications where lifting facilities are required but no building or supporting steel work is required. They are also suitable for indoor applications where existing building structures are not suitable for overhead cranes.

Main parts and components of truss girder gantry crane

Crane Leg of truss gantry

• Supporting effect
• Ensure safety and stability
• Improve the lifting

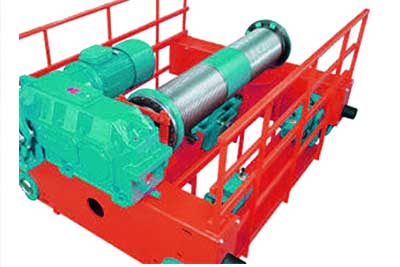

Crane Trolley of Truss gantry

• High working duty hoist
• mechanism.
• Working duty:A3-A8
• Capacity:5-320t.

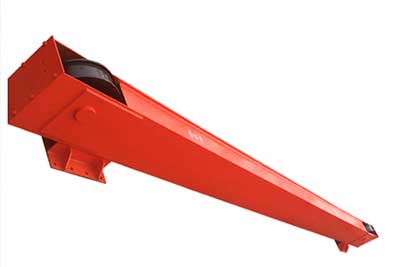

Ground Beam of Truss gantry

• Supporting effect
• Ensure safety and stability
• Improve the lifting

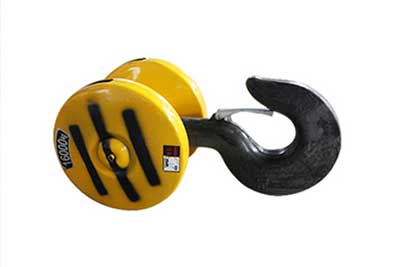

Crane hook of Truss gantry

• pulley diameter:Φ125/Φ160/
• Φ209/Φ304
• material:hook 35CrMo
• tonnage:5-320t

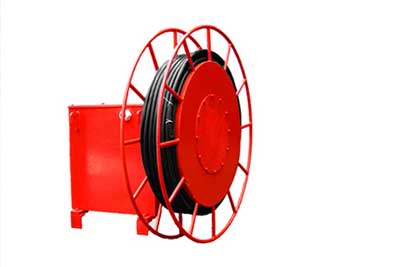

Cable Drum of Truss gantry

• The altitude does not exceed 2000 meters.
• The protection class of the collector box is IP54.

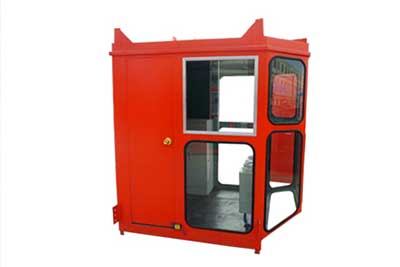

Crane Cabin of Truss gantry

• Close and open type.
• Air-conditioning provided.
• Interlocked circuit breaker provided.

Comparison of truss gantry crane vs box girder gantry crane

The box girder of a gantry crane is primarily made of steel plate or I-beam welded steel processing box structure, which has the advantages of high safety and reliability, stiffness, and other advantages, but the gantry structure of the gantry crane is expensive, heavy, and has a relatively poor wind resistance.

Box Girder Double Beam Gantry Crane

• Capacity:5-350t
• Span:18-35m
• Lifting height:10-13m
• Lifting speed:5-17m/min
• Cross travelling speed:34-45m/min
• Long travelling speed:34-47m/mim

Gantry crane truss beams are typically welded from angle steel or I-beam. Although it has the advantages of low cost, light weight, and good wind resistance, the truss has the disadvantages of a large surrounding degree and low rigidity due to many welding points and truss defects, low security and stability, the need for frequent solder joint testing, and other shortcomings.

Truss girder double beam gantry crane

• Capacity:5-350t
• Span:18-35m
• Lifting height:10-13m
• Lifting speed:5-17m/min
• Cross travelling speed:34-45m/min
• Long travelling speed:34-47m/mim

Benifits of box girder and truss girder gantry cranes

Gantry cranes are classified into two types based on their structure: box girder gantry cranes and truss girder gantry cranes. There are numerous distinctions between the two types of gantry cranes. :

The benefits of a truss girder gantry crane include:

•  This type of gantry crane is commonly used in light duty manufacturing facilities such as steel plants, goods yards, and so on.
• It is windproof, light in weight, and inexpensive. However, the stability is weaker when compared to the box girder girder structure.

The benefits of a box girder gantry crane:

• This type of crane is commonly used in steel coil plants, rail cart manufacturing workshops, power stations, and so on.
•  Because it is a box girder structure, it has high stability and safety. However, its weight is greater than that of a truss girder crane.
• Because of its unique box girder structure, the price is slightly higher than that of a truss girder crane.

 If you have any requirements or questions about the gantry crane, we can provide an appropriate solution.

Differences between Box-type and Truss Crane Girders

• Under the same conditions, the truss structure crane girder is stronger than the box-type structure crane beam, but it is more prone to stress concentration and cracking.
• Box-type crane girders are heavier than truss-type crane girders.
• Box-type crane girders are simple to manufacture.
• Box-type crane girders can use angular bearing boxes, which are connected to the end of the beam stress concentration and are easily cracked.
• Crane girders serve as the crane's foundation.

Yuantai Crane can design crane girders for you. We can also supply overhead cranes, gantry cranes, and crane spare parts.
