 10 Ton Gantry Cranes Streamlining Mold Transfers in UAE Plastic Manufacturing Plants10 ton mobile gantry crane for mold handling. Benefits of mobile 10-ton gantry cranes for flexible mold movement and outdoor loading in Dubai workshops.

Introduction

Plastic Manufacturing in the UAE: A Growing Industry with High Demands
Plastic manufacturing in the UAE, especially in Dubai, has been expanding rapidly over the past decade. With industrial zones like Dubai Industrial City and Al Quoz housing numerous plastic product factories, the demand for reliable and time-efficient equipment is growing just as fast. From packaging materials and household items to automotive parts and construction plastics, factories are handling a wide range of molds daily—some small, some very large and heavy.

What does this mean for daily operations? Simple: mold handling has become one of the most repetitive and physically demanding tasks in many of these facilities.

• Most plastic plants in the UAE run 24/7 operations with frequent mold changes.
• A single mold can weigh between 3 to 8 tons—or more—especially for blow molding and injection molding applications.
• Traditional forklifts or manual shifting often take longer, increase safety risks, and demand more labor coordination.

Why Efficient Mold Movement Matters More Than Ever
In any plastic production line, especially injection molding, the speed and safety of mold changes directly affect daily output. Delays in switching out molds can create backlogs and idle machines—something no plant wants.

Here’s what inefficient mold handling leads to:

• Extended downtimes between production batches
• Higher risk of mold damage from poor lifting angles
• More manpower needed to guide and position molds
• Safety hazards when using unsuitable equipment for heavy loads

This is particularly pressing in the UAE, where many workshops are tight on space and rely on a combination of indoor and outdoor handling.

Introducing the Mobile 10-Ton Gantry Crane: A Practical Solution
This is where mobile 10-ton gantry cranes come into play. These cranes aren't fixed in one spot. They’re designed to move where the work is—indoors, outdoors, between buildings if needed. For plants without permanent overhead crane systems or with molds stored in container yards, mobile gantries offer just enough lifting muscle without the heavy investment or structural modifications.

• Rated for 10 tons, these cranes cover most mid-to-large mold handling needs.
• Designed with polyurethane wheels or rail-guided options for easy repositioning.
• Can be operated manually or motorized, depending on your layout and frequency of use.

Whether you’re loading a mold from the back of a delivery truck or shifting it from the tool room to a molding machine, a mobile gantry crane lets you do it with minimal fuss and maximum control. Think of it as your workshop’s heavy-duty helper—always on call, always ready to lift.

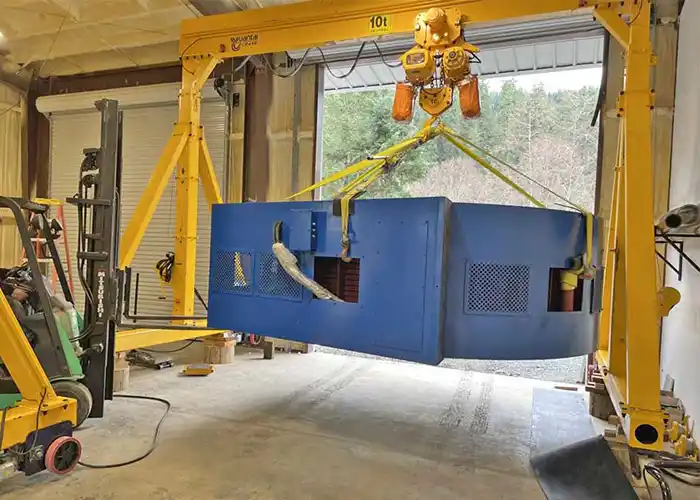

10 ton portable gantry crane project for your reference, Yuantai Portable Gantry Crane Cusomized for Your Die or Mold Handling Needs


Challenges in Mold Handling for Plastic Plants

Handling Molds Isn’t Just About Lifting — It’s a Workflow Issue
Plastic manufacturing plants, especially those in urban areas like Dubai, face daily hurdles when it comes to moving molds. These molds aren’t just heavy—they’re bulky, sensitive, and require precise positioning. A small mistake during handling can mean thousands of dirhams in repair or downtime.

Let’s break down the typical challenges:

Frequent Mold Changes Disrupt Workflow
Injection molding and blow molding machines often run different product lines in the same shift. That means molds need to be swapped in and out—sometimes several times a day.

• A mid-size plant may do 4–6 mold changes per shift.
• Mold weights vary widely—from a few hundred kilograms to over 10 tons.
• Each change eats up time, especially if lifting equipment isn’t positioned correctly.

The result? Delayed production schedules and more idle time on machines.

Tight Indoor Spaces Leave Little Room for Large Equipment
Dubai’s industrial workshops are often built for efficiency, not excess space. That means mold storage racks, CNC machines, and injection presses are placed close together.

• Fixed overhead cranes can’t always reach corner areas or narrow aisles.
• Forklifts need turning space and flat surfaces, which isn’t always available.
• Moving a mold across the shop can require clearing space—slowing down the entire operation.

Outdoor Mold Transfers Are a Daily Reality
Many workshops receive new molds or ship finished ones in outdoor yards or at loading docks. Moving molds in or out of storage containers, or between buildings, is part of the job.

• Not every building has a covered transfer area.
• Rain, heat, or uneven ground can complicate outdoor lifting.
• Without proper mobile lifting equipment, operators resort to risky manual methods or oversized forklifts.

Manual Handling and Forklifts Have Limits
Forklifts are widely used, but they’re not always the safest or most practical for mold handling.

• Fork tines can damage mold bases or press alignment pins.
• Limited vertical reach makes loading onto high mold racks difficult.
• Forklift use often requires two operators for guidance and positioning.

Plus, it’s worth mentioning: not all molds have slots or lifting points ideal for forklift tines. That’s a frequent headache for maintenance crews and machine operators.

In short: mold handling isn’t just a lifting task—it’s a logistical challenge that affects safety, efficiency, and output. That’s why many UAE workshops are looking toward more adaptable solutions like mobile gantry cranes.

Why 10 Ton Mobile Gantry Cranes?

Right Capacity for Most Mold Handling Needs
A 10-ton mobile gantry crane hits a practical sweet spot for many plastic manufacturing plants. Most molds in injection and blow molding fall within this weight range, making the crane strong enough without being oversized or too heavy to handle.

• Handles molds weighing anywhere from 3 to 10 tons comfortably.
• Supports various mold types, including complex multi-cavity molds and heavy die sets.
• Provides enough lifting margin for safety and occasional over-capacity lifts.

This capacity suits medium to large molds, covering the majority of needs without the expense of a bigger, more complex crane.

Mobility Means Flexibility in Daily Operations
Unlike fixed overhead cranes or jib cranes, mobile gantry cranes roll where you need them. This is a big deal in busy, space-restricted workshops.

• Easily moved on polyurethane wheels across smooth floors or light outdoor surfaces.
• Allows operators to bring the crane directly to the mold storage area, loading dock, or machine.
• Can be repositioned for special jobs, maintenance, or temporary projects without disassembly.

This flexibility helps plants adapt to changing layouts or unexpected tasks without major downtime.

More Affordable Than Permanent Overhead Crane Systems
Installing permanent crane runways and overhead systems involves high costs and long lead times.

• Structural reinforcements, electrical wiring, and engineering design add to expenses.
• Installation may require downtime or shutting parts of the plant temporarily.
• Maintenance and inspections of permanent systems can be costly over time.

Mobile gantry cranes cut out many of these costs. You get a powerful lifting tool without the hefty price tag or structural modifications.

Fast Setup and Ready to Work
Time is money, especially in fast-paced production lines. Mobile gantry cranes require minimal installation.

• Delivered mostly assembled or in simple parts that bolt together on-site.
• No need for foundation pouring or overhead rails.
• Can be put to use immediately after a brief safety check and operator training.

This quick deployment means your mold handling improves almost as soon as the crane arrives.

In summary, 10-ton mobile gantry cranes combine the right lifting capacity with practical mobility and cost savings. They offer UAE plastic workshops a straightforward, flexible tool to handle molds safely and efficiently without big upfront investments.

Key Benefits for UAE-Based Plastic Workshops

A. Mobility for Layout Flexibility

One of the biggest advantages of 10-ton mobile gantry cranes is their mobility. Thanks to their wheel-mounted design, these cranes can be pushed or powered across the workshop floor, moving molds exactly where they’re needed—no fixed crane runway required.

• Allows quick repositioning between mold storage, production lines, and maintenance areas.
• Can be used indoors on smooth concrete floors or outdoors on level ground with minimal preparation.
• Supports varied workflows—whether shifting molds for machine changeovers or loading/unloading outside.

This flexibility is especially useful in UAE workshops where space is tight and processes often change based on order volume or product type.

Improved Mold Change Efficiency

Mobile gantry cranes simplify the entire mold change process. Instead of relying on forklifts or multiple operators, the crane lifts molds directly from storage racks or trucks and sets them onto CNC machines or molding presses smoothly.

• Cuts down the time needed for mold transfer by reducing manual handling steps.
• Reduces chances of damaging delicate mold surfaces or misaligning mounting points.
• Requires fewer operators to safely handle heavy molds, improving workplace safety.

This efficiency gain leads to less downtime between production batches and smoother workflow overall.

Outdoor Handling Capability

Many UAE plastic plants handle mold deliveries and shipments outside the main building. Mobile gantry cranes excel in these situations.

• Can be wheeled directly to truck docks or container yards to lift molds off vehicles.
• Work well in tight outdoor areas without the need for permanent cranes or beams.
• Allow loading and unloading without waiting for forklifts or other heavy equipment.

Their design ensures mold transfers happen quickly and safely, even under the hot UAE sun or mild weather conditions.

Space Optimization in Compact Workshops

Space is at a premium in many Dubai workshops, so saving floor and ceiling space is critical.

• Mobile gantry cranes don’t require overhead crane rails or structural supports, freeing up wall and ceiling areas.
• When not in use, the crane can be rolled into a corner or designated storage zone, keeping aisles clear.
• Compact footprint helps keep the workspace organized and safer for all operators.

This means you get powerful lifting capability without sacrificing valuable shop floor space.

Overall, 10-ton mobile gantry cranes offer UAE plastic manufacturing plants a practical, flexible, and safe way to handle molds—improving efficiency, protecting equipment, and making the most of limited workshop space.

Case Example: Mold Transfer in a Dubai Plastic Packaging Plant

Setup of 10-Ton Gantry Crane for Loading and Unloading
In a busy plastic packaging plant located in Dubai Industrial City, the management faced frequent delays in mold handling. Molds arriving from suppliers were often offloaded manually or with forklifts, causing bottlenecks at the loading dock. The plant decided to invest in a 10-ton mobile gantry crane to streamline this process.

• The crane was set up near the outdoor loading dock to lift molds directly from delivery trucks.
• Its adjustable span allowed the crane to work in tight dock areas and transfer molds safely onto transport carts.
• Operators received quick training on maneuvering the crane indoors and outdoors, ensuring smooth operation.

This setup enabled seamless lifting without relying on fixed crane infrastructure or bulky forklifts.

Workflow Improvement: From Mold Warehouse to Production Floor
Previously, molds had to be transported multiple times using forklifts between the warehouse, maintenance area, and molding machines. This caused workflow interruptions and increased the risk of mold damage.

With the gantry crane in place:

• Molds were lifted directly from storage racks using the crane’s hoist, then moved to the molding machines without extra handling.
• The crane’s mobility meant it could be repositioned quickly to where the mold was needed, reducing walking and waiting times.
• Changeover times between different mold runs dropped by nearly 25%, improving overall production efficiency.

The plant noticed smoother coordination between warehouse and production teams thanks to the simplified transfer process.

Impact on Downtime Reduction and Safety Improvement
The addition of the 10-ton mobile gantry crane brought clear benefits in both uptime and workplace safety.

• Downtime caused by slow or risky mold handling was significantly reduced. Machines spent more time running and less time idle.
• The crane’s precise lifting reduced the chances of mold damage, avoiding costly repairs or remakes.
• Safety incidents related to manual handling and forklift maneuvering dropped, with fewer near misses reported.
• Operators felt more confident and in control when using the crane, leading to better morale and fewer work interruptions.

Overall, the investment paid off quickly by increasing productivity and creating a safer work environment.

This case shows how a practical, mobile 10-ton gantry crane can transform mold handling operations in UAE plastic plants, turning a common bottleneck into a smooth, reliable process.

Technical Considerations

Span, Lifting Height, and Power Supply Options
When selecting a 10-ton mobile gantry crane, it's important to consider the specific dimensions and power needs that fit your workshop and workflow.

• Span: The distance between the two legs of the gantry crane affects how wide a mold or load you can lift. Adjustable-span cranes let you customize this width to fit different mold sizes or workspace constraints.
• Lifting Height: Make sure the crane’s hoist can raise molds high enough for your storage racks or machine clearances. Typical lifting heights range from 3 to 6 meters, but custom options are available.
• Power Supply: Depending on your facility, cranes can be powered by electric motors (usually 380V three-phase) or manual operation. Some workshops may prefer battery-powered or diesel options for outdoor use without access to fixed power.

Manual vs. Motorized Travel Depending on Usage Frequency
How often you move the gantry crane impacts whether manual or motorized travel is best.

• Manual Travel: Best for occasional moves or short distances within a clean, flat indoor space. Operators push or pull the crane on its wheels or rails. This option reduces cost and maintenance but requires more physical effort.
• Motorized Travel: Ideal for frequent repositioning or longer distances, especially outdoors. The crane moves on powered wheels controlled by an operator via pendant or remote control, allowing smooth and controlled movement with less effort.

Choosing the right travel method can improve efficiency and reduce operator fatigue.

Wind Protection and Leveling for Outdoor Use
Using a gantry crane outdoors in the UAE means dealing with wind, uneven surfaces, and sometimes hot temperatures.

• Wind Loads: Mobile gantry cranes should be designed or anchored to resist wind gusts, especially when lifting heavy loads. Some models include stabilizing outriggers or wheel locks to prevent tipping.
• Leveling: Outdoor surfaces can be uneven, so adjustable leveling feet or wheel suspension systems help keep the crane stable during lifting and moving.
• Surface Preparation: Smooth, firm ground improves safety and ease of movement. In some cases, adding temporary mats or paving sections may be necessary.

Optional Add-Ons for Better Performance
Many mobile gantry cranes come with optional features that enhance usability and safety.

• Electric Chain Hoist: Provides smooth, controllable lifting with adjustable speeds and overload protection.
• Remote Control: Allows the operator to move and lift from a safe distance, improving visibility and safety during operation.
• Adjustable Span: Enables the crane width to be quickly changed to handle molds of varying sizes without needing a different crane.
• Lighting and Weather Covers: For outdoor operations during night shifts or harsh weather conditions.

Considering these technical factors ensures that the gantry crane you choose fits your workshop environment, lifting needs, and operational style—making mold transfers safer, faster, and easier.

Installation and Maintenance

Quick Setup with Adjustable Design
One of the main advantages of mobile 10-ton gantry cranes is how fast and simple they are to set up. Most models come with adjustable legs and spans that can be configured quickly to fit your workspace and mold sizes.

• Delivered mostly pre-assembled or with easy-to-connect parts
• Adjustable height and width make it easy to tailor the crane to different tasks
• Setup usually takes a few hours, allowing plants to start using the crane almost immediately

This flexibility means you can move the crane between different locations or projects without complicated disassembly.

Minimal Foundation or Anchoring Required
Unlike permanent overhead cranes, mobile gantry cranes generally don’t need heavy foundations or fixed anchoring.

• Designed to roll or move on smooth, level surfaces such as concrete floors or paved yards
• Some models include optional wheel brakes or stabilizers for added safety during lifting
• For outdoor use, light anchoring or wheel chocks might be used to prevent movement in windy conditions

This reduces installation costs and avoids downtime caused by construction or modifications.

Routine Checks for Wheel Alignment, Hoist Condition, and Stability
Regular maintenance keeps the crane safe and reliable over time. Because mobile gantry cranes are used in different areas, keeping an eye on key components is essential.

• Wheel Alignment: Check wheels and casters for wear, alignment, and smooth rolling. Misaligned wheels can cause uneven loads and instability.
• Hoist Condition: Inspect the electric or manual hoist mechanism, chains, hooks, and brakes for wear or damage. Lubricate moving parts as recommended.
• Stability: Ensure that adjustable legs, outriggers, and any locking mechanisms are secure and functioning properly before each use.
• Structural Checks: Periodically examine the crane frame for cracks, rust, or deformations, especially after heavy use or outdoor exposure.

Routine maintenance not only prevents accidents but also extends the working life of your gantry crane.

By keeping setup simple and maintenance straightforward, mobile 10-ton gantry cranes offer plastic plants an effective mold handling tool with minimal downtime and hassle.

Conclusion

Mobile 10-ton gantry cranes bring real practical benefits to plastic manufacturing plants in the UAE. They offer the kind of operational flexibility that fixed cranes simply can’t match. Whether you need to move molds between tight indoor spaces or handle outdoor loading and unloading, these cranes adapt quickly to your needs. Their mobility means less waiting, fewer delays, and safer handling of heavy molds, all without requiring expensive infrastructure changes.

For plastic manufacturers in Dubai and across the UAE, investing in a mobile gantry crane is a smart step toward improving efficiency and reducing downtime. It’s a cost-effective way to streamline mold transfers while making the workplace safer for operators.

If you’re considering this solution, it’s a good idea to work closely with experienced crane suppliers. They can help customize the gantry crane’s span, lifting height, and additional features to match your exact mold sizes and workflow requirements. That way, you get a tailored solution that fits your plant perfectly and keeps production running smoothly.
