The low profile trolley hoist is transformed from CD / MD electric wire rope hoist. Compact structure, single and double speed lifting, high effective lifting stroke, and steady operation are all features of the lifting hoist. It has a wide range of applications, particularly in modern industry buildings. The height of the journey can be used to minimize the building's height and expense of construction.
Manufactured as a low-profile trolley hoist for situations when the rope hoist's operating area necessitates a very small hook block dead area. The main goal is to provide the user with the smallest possible space. Unlike traditional monorails, the lifting system is not located in the lower portion of the traveling trolley; instead, the trolley is attached to the wire rope drum by a balanced weight.
- √ Lifting capacity of low profile trolley hoist : 0.5~16 tons.
- √ Lifting height of low profile trolley hoist : 6~30 m.
- √ Used by industrial and mining enterprises, warehouses.
Low profile trolley hoist for sale to lower your cost
Higher Reliability and Security
- 1. Brakes and clutches assure safety in any situation, with no slippage under load.
- 2. The IP55 rating of the hoist frame and brake assures that they will not corrode in a severe environment.
- 3. An up and down limit switch ensures that the hook may operate safely in both the top and bottom positions.
- 4. The low voltage contactor guarantees that the system operates safely and reliably.
Features of low profile trolley hoist
- Compared to typical CD / MD wire rope hoists, the best clearance height can enhance the lifting height by 200-500mm.
- Excellent three-in-one transmission technology, with a high-quality alloy steel hoist reducer, three-stage deceleration, stable operation, long life, and reliable performance, avoiding many of the disadvantages of CD hoist intermediate shaft long-distance transmission.
- The motor's overall performance is superb. The new self-cooling cone type motor requires a motor that is specifically built for it. The motor case is built of an aluminum alloy with excellent heat dissipation capabilities. The motor has an insulating grade of F and an IP54 protection rating, which is one notch greater than a standard motor.
- Depending on the needs of the user: hoist operation, lifting single and double speed or variable frequency stepless speed control, remote control, overload protection, motor overheat protection, and other features.
- The structure is excellent, the outlook is compact and there are numerous original inventions;
- The entire structure is simple to remove, install, repair, and maintain.
About Headroom
What is the headroom room of a hoist?

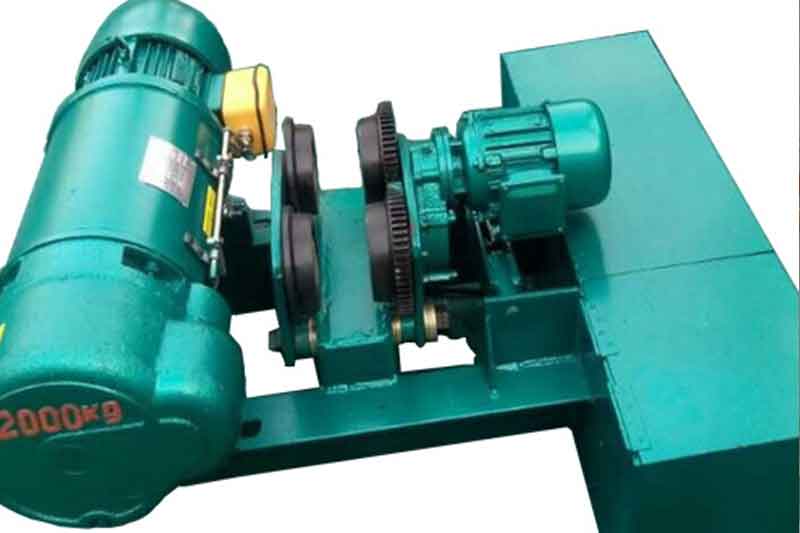

Low profile trolley hoist
What is the headroom o f a hoist ? The distance between the point on the hook where the load will be hung and the point where the hoist, or hoist and trolley, links with the support member the hoist hangs from is referred to as headroom.
An I-beam, such as a horizontal building support, or a crane, such as a jib crane or gantry crane, are common examples.
The headroom is defined as the distance between where the trolley rides on the beam and the load point on the hook in the figure to the right and in the schematic above. Always remember to measure headroom with the load rope at the highest position, as shown here.

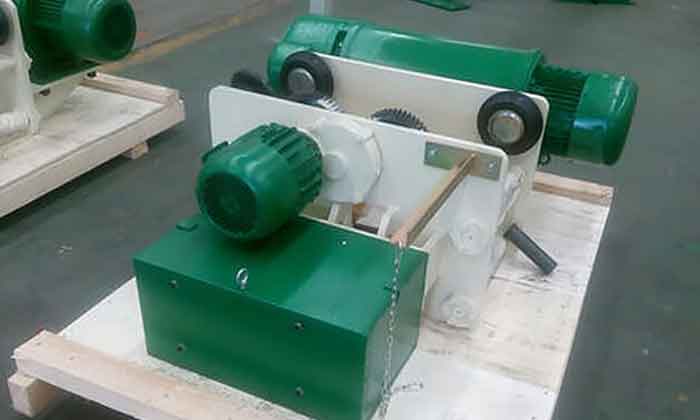

Low profile trolley hoist
General use travelling trolley hoist
Why choose Yuantai Low profile trolley hoist ?
Safety, reliability, and low maintenance
We are dedicated to assisting you in overcoming the challenges that you face on a daily basis. The Yuantai Crane low profile trolley hoist helps you to get the most out of your equipment thanks to its safety, reliability, and low maintenance.
Simple to Use
While limiting hook drift and optimizing end approaches, our revolutionary hoist design gives the finest headroom in the market. This means you'll have more floor covering and the equipment will be easier to operate. The trolley's standard inverter controls reduce load swing and brake wear.
Reliable
All of Yuantai Crane's crane and hoist equipment is custom-designed for specialized lifting purposes. The novel gear case design reduces stress on drum bearings, reducing maintenance requirements and increasing the equipment's life. While enhancing motor cooling efficiency, our innovative rope drum design provides the least hook drift in the industry. If you have any need of low profile trolley hoist or any other types of lifting equipment, please feel free to contact us by leave a message below. Your message will be replied in 24 working hours. Contact us to check what we can do to save your cost.

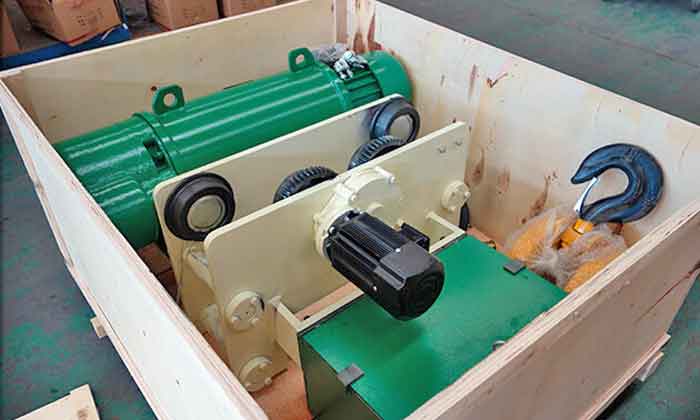

Wire rope low profile hoist packed for delivery
