5 Ton Electric Chain Hoist With Trolley, Good 5 Ton Electric Hoist Price

Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

5 ton electric chain hoist with motorized trolley for sale, good electric hoist 5 ton price. Check specifications & features of trolley chain hoist.

5 Ton Electric Chain Hoist With Trolley, Good 5 Ton Electric Hoist Price

Product Type:	Electric chain hoist
Lifting Capacity:	5 ton
Span:	/
Lifting Height:	as your requirement
Working Class:	A3,A4
Ambient Temperature:	-25~40℃
Crane Price Rangs	More Inquiry Form
Price Range: $2,500 – $3,800+ (for reference only) Note: Ideal for moderate lifting tasks, with longer service life and easy control. Get Latest Price: Contact us to confirm current pricing.
	[email protected] 008615038346929

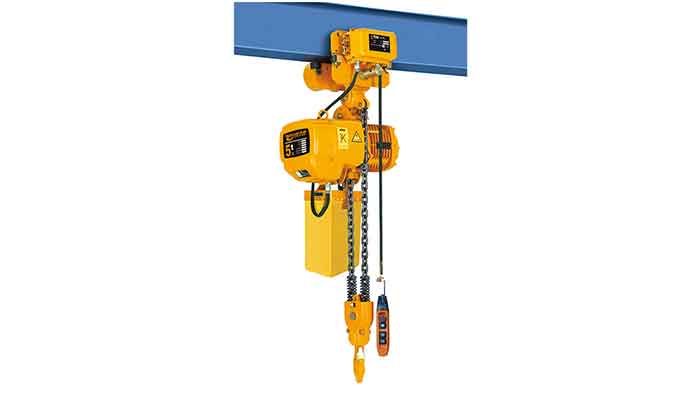

Overview of 5 ton electric chain hoist with trolley

5 ton electric chain hoist with motorized trolley for sale, good electric hoist 5 ton price. Check specifications & features of trolley chain hoist.

Electric chain hoist 5 ton with motorized trolley is the heavy duty electric chain hoist. Based on the different speed requirement, it can be manufactured as the 2 speed electric hoist.As one of the electric chain hoist suppliers in China,Yuantai Industry devoted to supplying different types of electric chain hoists as customers’ requests.

Electric chain hoist with motorized trolley is an important light duty hoisting equipment. The 5 ton hoist usually is consisted of a motor, a transmission mechanism, a sprocket and a hook. The 5 ton electric chain hoist is usually small and easy to replace, and can be used in a variety of applications with types of cranes, such as, monorail hoists, single girder overhead crane, portable gantry cranes,etc.

Main parameters of 5 ton electric chain hoist with trolley

Load capacity: 5 tons
Drive unit: Motorized
Lifting height: 3~30m
Power source: Customized
Working duty: A3
Reverse phase protector, Emergency stop switch,Limit switch protection device,Double brake systems:mechanical brake and electromagnetic brake,
Small dimension, easy to replace, used in a variety of scenarios,etc.

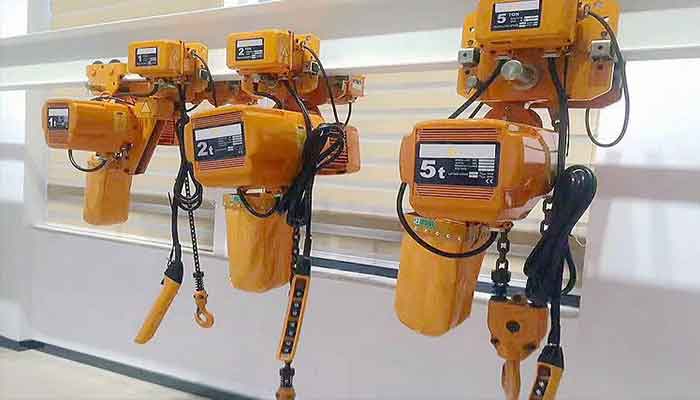

Motorized trolley electric chain hoist 5 ton for sale

Main specifications of 5 ton electric chain hoists with trolley


Capacity (T)	5
Lifting Speed (m/min)	2.7	2.7/0.9
Lifting Motor Power (kw)	3.0	3.0/1.0
Traveling Speed (m/min)	11	20/5
Traveling Motor Power (kw)	0.75	0.8/0.27
Rotation Speed (m/min)	1440	2880/960
Power Supply	3P 220V-690V
Control Voltage	24V/ 36V/ 48V
No. of Chain	2
Spec. of Chain	Ф11.2mm

Features of 5 ton electric chain hoist with trolley

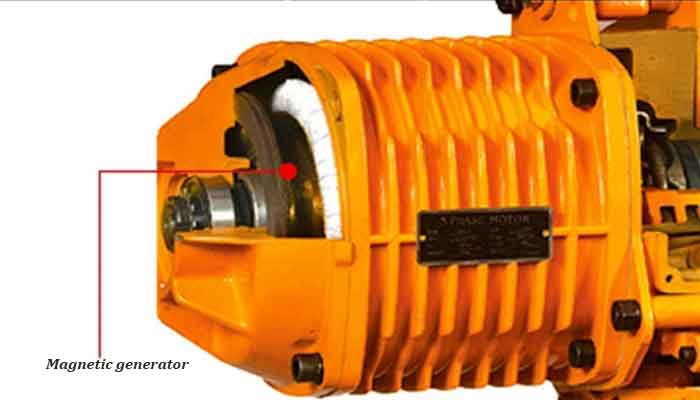

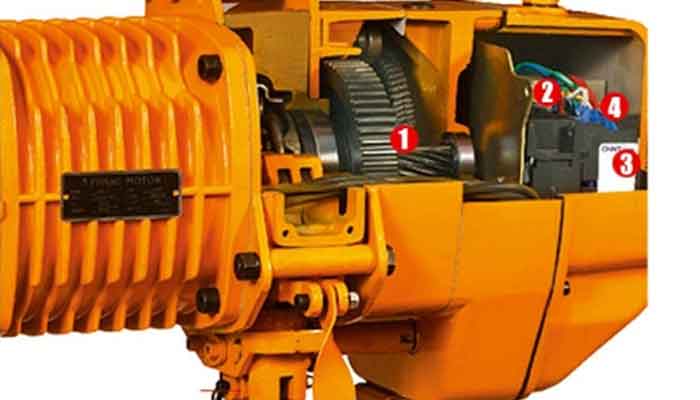

Double brake systems: Having two complete and independent brake systems not only reduces the possibility of brake failure, but also improves brake safety and heat dissipation.
1. The electromagnetic braking system is quick to respond and offers forward braking force. Non-asbestos brake linings significantly increase maintenance intervals.
2. When the mechanical and electromagnetic brakes work together, the machine can be stopped at any time.
Limit switch: When the 5 ton electric chain hoist reaches its limit, the limit switch turns off automatically. The limit switch prevents the weight from colliding with the body.
Gears: Helical gears are commonly used in standard electric chain hoists to improve reliability and extend life by minimizing the effects of gear meshing and vibration.
Reverse phase protector: A reverse protector can protect the hoist or hoist motor from damage caused by incorrect power cord connection (reverse connection).
In an emergency, this button is used to stop the action of the 5 ton electric chain hoist. When you press the button, the hoist power is turned off. The button also has an automatic lock function.
