7.5 Ton Electric Chain Hoist with Electric Trolley, Good Price

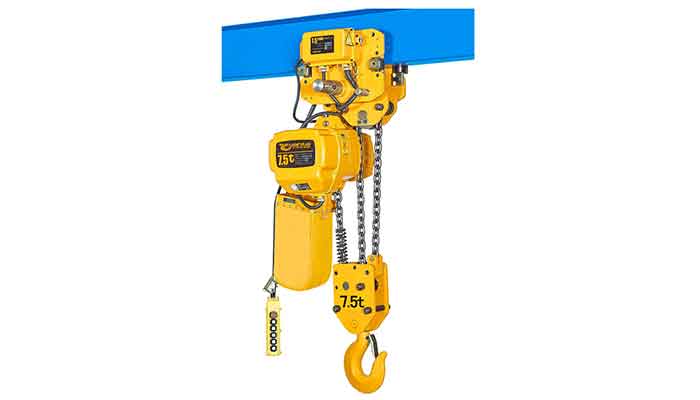

Overview of 7.5 ton electric chain hoist with motorized trolley

7.5 ton electric chain hoist 220V is the large capacity hoist among chain hoists. Its conventional lifting height is 10 feet. Longer chain is available and the remote control and pendant control are optional for your selection. Electric chain hoist 220v, 3 Phase is welcomed in Canada, Mexico, Vietnam.

Among electric chain hoists, the 7.5 ton electric chain hoist is used for heavier loads handling. A longer chain is available, and the remote control and pendant control are optional. In Canada, Mexico, and Vietnam, electric chain hoists 220v, 3 phase are welcomed.

7.5 ton electric  hoist with compact structure, light weight, small size, easy to operate, easy to maintain, and other characteristics, can be installed alone in an overhead i-beam, and can also be matched to be installed in an electric or manual single beam, double beam, cantilever, gantry, and other types of cranes.

Single speed data  of 7.5 ton electric chain hoist with electric trolley

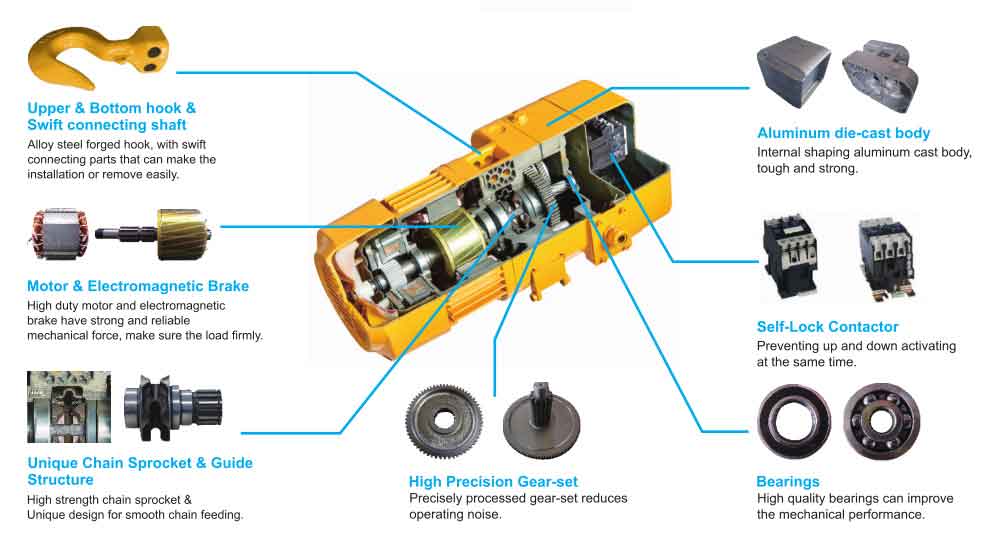

Main components of 7.5 ton electric chain hoist with trolley

A light duty hoisting equipment is an electric chain hoist with an electric hoist trolley. Hooks and straps, as well as lifting rings,  clamps, and forks, are the most commonly used lifting devices for lifting loads. Electric chain hoists can be customized. The main parts and components of the electric chain hoists and features of them are presented for your reference.

Features for the electric chain fall hoist with motorized trolley

• Hooks - Heat treated and fracture resistant drop forged steel suspension and load hooks. In the event of dangerous overloading or abuse, the hook will gradually yield rather than fracture.
•  Operating voltage 220-440V, 50/60Hz, 1-3 phase
• Standard low voltage control is 36V.
•  Motor - A high-efficiency, energy-saving motor with an asbestos-free braking system. A two-speed motor is available.
•  Chain - Super strong alloy steel chain that has been surface hardened for maximum strength and wear resistance.
•  Chain Bucket - A solid chain bucket is included as standard equipment for safer operation.
•  Limit Switch - Limit switch devices installed at both the top and bottom ends of the load chain automatically turn off power to prevent the load chain from running out.
• Phase Error Relay - A phase error relay, a specially designed current-post, prevents the motor from running when the wire connections are incorrect.
• Pushbutton Swith - Pushbutton swith is rain-proof plastic with mechanical interlocking for severe impact and corrosive atmosphere resistance.
•  Safety Latches - Top and bottom hooks come standard with safety latches.
• Light Weight - The case is lightweight, compact, and solid.
•  Remote control and push button control are optional.

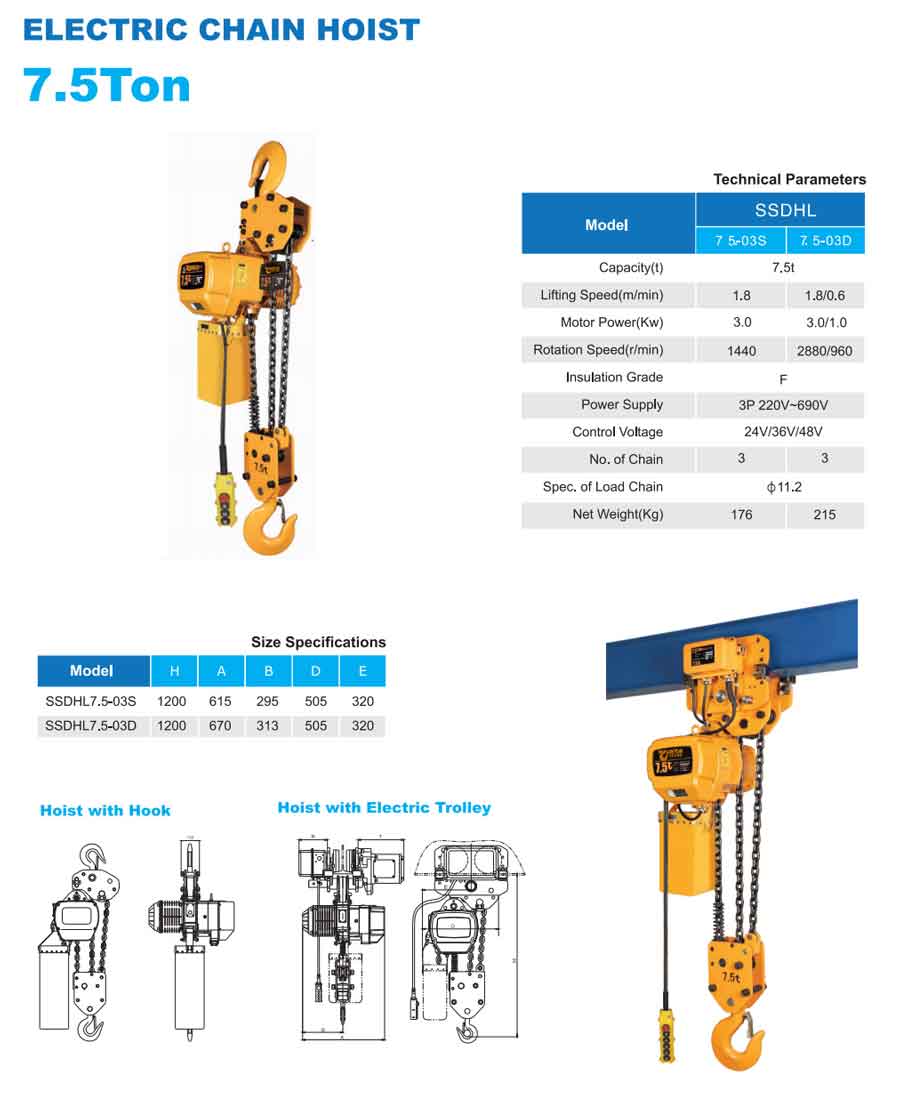

Comparison of 7.5 ton electric chain hoist with trolley & hook mounted design

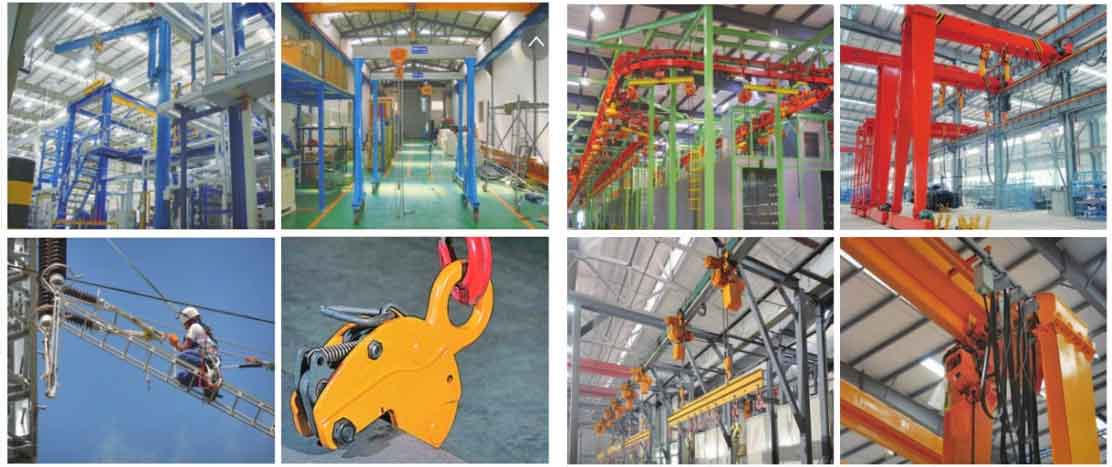

Applications of 7.5 ton Electric Chain Hoist with Trolley

Electric chain fall hoists are widely used, primarily in the workshop, warehouse, wind power, logistics, port, construction, and other industries, for lifting, loading, and unloading goods. They can also be useful for lifting heavy weights and working on or repairing large machines. The operator can control the electric chain fall hoist with a push button on the ground. It can also be controlled from the control room or with a wireless remote control. The 7.5 ton electric hoist is available with fixed suspension as well as electric monorail trolley and push/pull monorail trolley.

Why to Select Us Yuantai Electric Chain Hoists?

Our Yuantai Better Crane electric chain hoists are built to last. Every detail of this 7.5 ton hoist was created with the customer’s needs in mind, from the ergonomic pushbutton control grip to the best-in-class design. The Yuantai Better Crane electric chain hoist is designed to help you rise above the competition and keep your facility running at peak efficiency.

Lower hoist maintenance

The Yuantai Better Crane electric chain hoist's major drive train parts, including the gearbox, motor brake, and hoist motor, are all built to last for the duration of the hoist's intended operating life. The self-adjusting electric hoist brake eliminates the need for air gap adjustments, and the hoist gearbox is permanently oiled. The Yuantai Better Crane hoist is made to be simple to maintain when it is necessary. The motorized chain block hoist's chain guide and sprocket are easily accessible from the exterior, and all of the electrical parts have plug-and-play connections for easy inspections and replacements.

Rugged hoist design

For industrial application, electric chain hoists must be durable. The entire pressure-case aluminum body of the Yuantai Better Crane chain hoist protects the electrical components inside the chain fall hoist. The cable gland entrances are tested for maximum use to hold up to 400 pounds, and the plug and play connection and rocker-style electrical limits are all located inside the hoist body for enhanced protection. Additionally, the hoisting gearbox for Yuantai Better Crane satisfies a minimum AGMA 10 rating to give you the highest precision and durability on the market.

High hoist safety

Safety is crucial in every industrial process. Our Yuantai Better Crane hoists include an innovative slip clutch overload system with the overload factory-set at 110% of the rated capacity, and they are load tested at 125% of the rated capacity at the factory. From the end of the hoist body, it is simple to access the slip clutch. By stopping the hook and chain from traveling too far, the rocker style upper and lower hoisting limits also keep you safe and safeguard the equipment. Additionally, the Yuantai Better Crane hoist will come with maintenance and safety guidelines tailored especially for your machinery. Stop speculating about whether you are adhering to the right rules!
