Shield Tunnel Gantry Crane for TBM Installation & Lifting

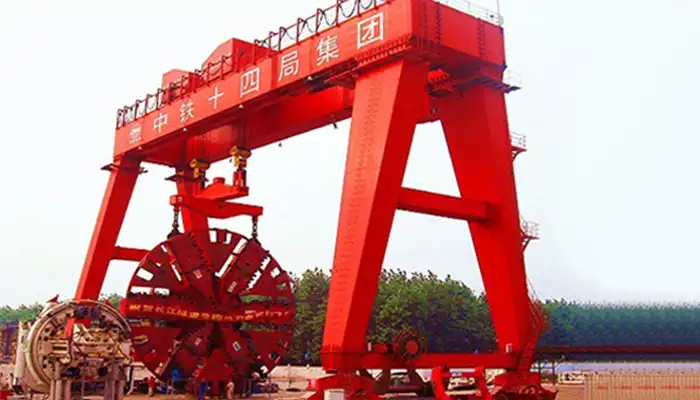

Shield tunnel gantry cranes, often called TBM gantry cranes, are specialized lifting systems designed for underground tunneling projects. If you’ve ever been on a metro construction site, you know how tight the shafts can be and how precise the lifting needs to be. That’s exactly where these cranes come into play.
These cranes are mainly used for lifting and installing TBM cutterheads, shield bodies, and tunnel support segments. They are built to operate in confined underground spaces where regular overhead cranes simply can’t fit or work efficiently.
Key applications include:
- Metro and subway tunnels – handling cutterhead installation and segment placement.
- Railway tunnels – supporting TBM operations in long-distance or mountain tunnels.
- Highway and road tunnels – lifting shield machine sections and concrete segments.
- Hydropower and utility tunnels – moving heavy tunnel components in underground shafts.
These cranes are specifically designed for underground non-excavation construction, which means they work in trenchless tunnel projects, without disturbing the surface above. They are ideal for environments where precise, heavy lifting is needed, and space is limited.
Practical advantages and uses:
- Provides safe and reliable lifting of heavy TBM components.
- Supports continuous tunnel construction cycles, minimizing downtime.
- Can handle both tunnel boring machine assembly and segment placement, so you don’t need multiple cranes on site.
- Adjustable span and lifting height options make it suitable for shafts of different diameters and depths.
Main Features & Benefits
Shield tunnel gantry cranes (also known as TBM gantry cranes) are designed around one simple requirement: lifting heavy TBM parts safely inside tight underground spaces, again and again, without interruption during construction. In metro and tunnel projects, the workload is not occasional—it is continuous, and often under difficult site conditions.
High-Precision Lifting
In TBM installation work, positioning accuracy matters just as much as lifting capacity. A few millimeters off, and assembly becomes difficult on site.
- Dual trolley synchronized lifting for TBM cutterhead

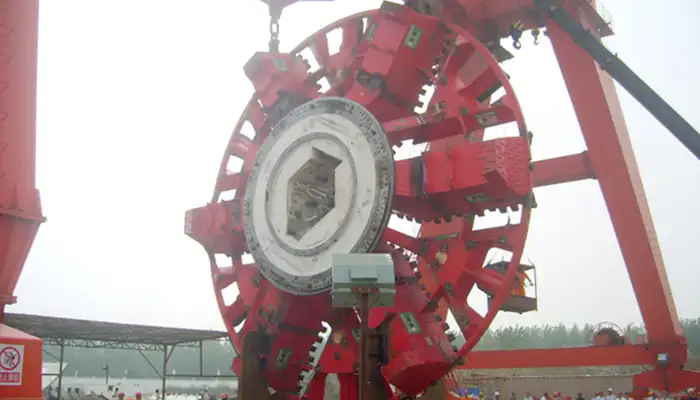

The two-trolley system works together to lift and balance extremely heavy cutterheads. This is commonly used in TBM cutterhead lifting crane operations, especially in large metro tunnel projects. - 360° rotating spreader for multi-angle positioning
The lifting spreader can rotate fully, allowing the operator to adjust the cutterhead direction during installation. This is useful when working in narrow shafts where space for repositioning is limited.
In industrial tunnel projects, this means less manual adjustment and smoother alignment during shield machine assembly.
Flexible Operation Modes
Tunnel construction does not follow one fixed lifting pattern. Sometimes you are handling a 200–400 ton cutterhead, and sometimes you are moving repetitive concrete segments.
- Tandem operation for heavy components
Both trolleys work together for synchronized lifting. This is typically used for shield machine installation crane tasks, especially during TBM assembly or disassembly. - Independent operation for tunnel segments
Each trolley can operate separately for handling tunnel segment lifting and placement. This improves efficiency during repetitive lining work in metro tunnels.
This dual-mode structure reduces the need for multiple lifting systems on site, which is often a practical advantage in underground construction planning.
Cost-Effective Design
In long tunnel projects, maintenance cost and downtime matter as much as lifting capacity.
- Open gear hoisting mechanism
The crane uses an open gear system, which is simpler in structure and easier to inspect. It is widely applied in heavy-duty gantry crane systems for tunnel construction where reliability is more important than complexity. - Easy maintenance for continuous construction cycles
Tunnel projects often run 24/7. The design allows faster inspection and servicing, which helps reduce stoppage time during TBM excavation work.
This structure is especially practical for contractors working on long metro or railway tunnel drives.
Safety & Reliability
Underground lifting is not forgiving. Loads are heavy, space is tight, and operations often happen in continuous cycles.
- Heavy-duty structural stability for concentrated loads
The crane structure is designed to handle high point loads from TBM components, including cutterheads and shield bodies used in underground construction lifting crane applications. - Anti-tilt and overload protection systems
Built-in safety systems help prevent uneven lifting and overload situations. This is critical during synchronized lifting of large TBM parts.
In practice, these safety features support stable operation during long-term tunneling projects where repeated heavy lifting is required.

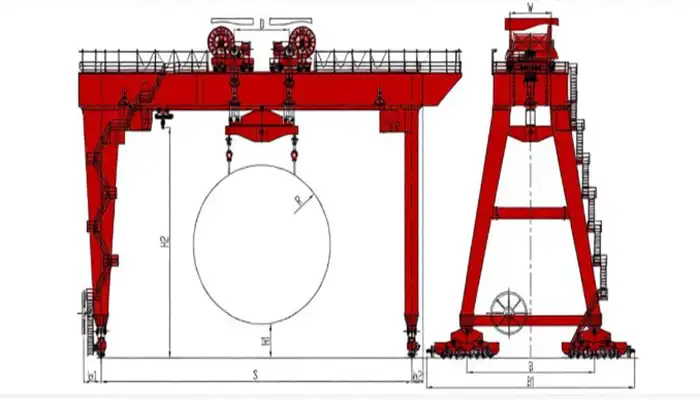

Technical Specifications
In shield tunneling and TBM construction projects, crane parameters are usually defined by site constraints rather than standard industrial layouts. Shaft depth, tunnel diameter, and cutterhead weight all directly affect the final configuration of the gantry crane. This section provides typical technical ranges used in shield tunnel gantry crane systems for metro and underground construction projects.
Capacity
- 400t heavy-duty gantry crane
- 100t / 130t medium-capacity gantry crane
- 100t + 100t dual hoist for tandem lifting
Span
- Span ranges: 18–36m, adjustable for different shaft widths
Lifting Height
- 33–40m total lifting height for deep underground tunnels
Speed & Movement
- Main hoist: low-speed precision control
- Trolley travel: 1.15–25 m/min
- Crane travel: 1.4–20 m/min
Structure & Rail
- Compact design for confined tunnel shafts
- Recommended rails: QU80 / QU100
Power Supply
- 3-phase AC, 50Hz, 380V
Typical Applications
Shield tunnel gantry cranes are designed to handle heavy TBM components and tunnel segments in underground construction projects where space is limited and lifting accuracy is critical. These cranes are widely used in both urban and infrastructure projects, making them a practical choice for contractors and engineering teams.
Common applications include:
- Metro and subway tunnels – for TBM cutterhead installation and tunnel segment placement.
- Railway shield tunneling projects – supporting long-distance or mountain tunnel excavation.
- Highway and road tunnels – lifting shield bodies and precast segments efficiently.
- Hydropower diversion tunnels – moving heavy TBM parts in underground shafts.
- Large-diameter TBM excavation – handling oversized shield machines and deep tunnel segments.
In practical terms, these cranes allow operators to perform continuous lifting cycles with precision and safety, reducing the need for multiple lifting systems on site. They are built to integrate into confined tunnel shafts, making them ideal for projects where traditional overhead cranes cannot operate.
Why Choose Gantry Crane
In shield tunneling projects, the lifting equipment is not only about capacity. It is more about whether the crane can follow the industrial working rhythm inside a tunnel shaft, where space is limited and every lift must be controlled and predictable. This is where a TBM gantry crane system becomes a practical choice for contractors handling metro and underground construction projects.
Key advantages include:
- Handles both TBM cutterhead and shield body in one system, reducing the need for multiple lifting setups on site
- Supports efficient handling of precast tunnel segments during continuous lining work
- Designed specifically for confined shaft environments, where installation space and lifting clearance are restricted
- Maintains stable performance in long-hour tunneling operations with repeated lifting cycles
- Provides controlled lifting accuracy, especially during shield machine assembly and disassembly
In industrial construction conditions, these cranes are often used from the early TBM installation stage all the way through segment erection and maintenance operations. This reduces downtime and helps keep tunneling progress steady, especially in metro and railway projects where schedules are tight.
From a procurement point of view, choosing a proper shield tunneling machine crane also means reducing coordination issues between different lifting equipment. One system can cover multiple working stages, which simplifies site planning and improves operational consistency.
Selection Guide for Buyers
Selecting a shield tunnel gantry crane / TBM gantry crane system is usually based on actual project conditions rather than standard catalog parameters. In tunnel construction, every site is different, especially in metro shafts and deep excavation pits, so the crane must be configured according to industrial lifting needs on site.
Before finalizing a design, most buyers and engineering teams will evaluate the following key points:
- TBM cutterhead diameter & weight – determines whether a 100t, 130t, 200t, or 400t lifting capacity is required
- Shield machine total weight – includes shield body, cutterhead, and auxiliary components during assembly
- Tunnel shaft dimensions & span requirements – affects gantry span (commonly 18–36m range) and structural layout
- Lifting height & duty cycle – especially important for deep shafts and continuous tunneling operations
- Site power conditions & construction environment – including voltage stability, underground humidity, dust, and space restrictions
In many metro and railway projects, these factors are reviewed together at the planning stage to avoid redesign during installation. A properly matched underground tunnel lifting solution helps reduce downtime during TBM assembly and improves coordination between excavation and segment erection work.
In practical terms, choosing the right crane is not only about capacity. It is about ensuring the crane can continuously support shield machine lifting, cutterhead installation, and tunnel segment handling without interruption during the full construction cycle.
Frequently Asked Questions (FAQ)
In TBM and shield tunneling projects, buyers usually compare different shield tunnel gantry crane systems before making a final decision. The questions below reflect what is commonly asked during technical discussions for metro and underground construction lifting solutions.
Q: What is the lifting capacity of the gantry crane for TBM projects?
A: It typically ranges from 100t to 400t depending on TBM size and project conditions.
Explanation: In industrial tunnel construction lifting crane projects, smaller metro TBMs often use 100t or 130t systems, while large cutterhead lifting may require 200t or 400t configurations based on shield machine weight and installation requirements.
Q: Can this crane handle both TBM cutterhead and tunnel segments?
A: Yes, one system is designed for both TBM cutterhead lifting and tunnel segment handling.
Explanation: The same shield tunneling crane system is used for cutterhead installation, shield body assembly, and repetitive precast segment lifting, which helps simplify underground construction workflows.
Q: How is synchronized lifting achieved?
A: It is achieved through a dual hoist or dual trolley synchronized control system.
Explanation: In TBM gantry crane systems, both hoists work in tandem to keep heavy loads balanced, which is important during cutterhead installation in confined tunnel shafts.
Q: What safety systems are included for underground lifting operations?
A: Key systems include overload protection, anti-tilt control, and emergency stop functions.
Explanation: These safety features are standard in underground construction lifting crane systems, ensuring stable operation during continuous tunneling cycles.
Q: How do tunnel shaft dimensions affect crane design?
A: Shaft width and depth directly determine crane span, lifting height, and structure layout.
Explanation: Each shield tunnel gantry crane design is typically customized based on tunnel geometry to ensure safe operation and proper clearance inside underground shafts.
Request a Quote / Technical Consultation
To get the right shield tunnel gantry crane for your project, it’s important to share as much information as possible. This ensures the crane is designed to match your TBM, tunnel geometry, and lifting requirements.
How it works:
- Provide tunnel drawings, TBM specifications, and lifting cycle details so engineers can assess your project accurately.
- Receive a customized gantry crane layout and capacity recommendation, tailored to your underground construction needs.
- Access project-based engineering support, including guidance for metro, railway, highway, or hydropower tunnels.
Working with a qualified TBM gantry crane supplier ensures that the crane system is practical, safe, and optimized for your tunnel shaft conditions. Our team helps deliver a customized tunnel crane solution, minimizing downtime and improving efficiency during cutterhead installation and segment handling.
