Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

Low profile electric chain hoist 7.5 ton for limited room worshops. Low proof electric hoist with 3 chain falls, 4 movement, 1 or 2 hoisting speed for sale.

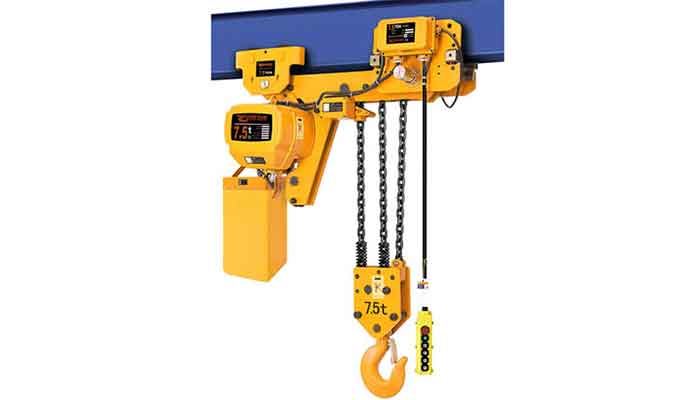

7.5 Ton Low Profile & Low Headroom Electric Chain Hoist

Product Type:	Low Profile Electric chain hoi
Lifting Capacity:	7.5 ton
Span:	/
Lifting Height:	As your requirement
Working Class:	M3,M4
Ambient Temperature:	-20-+40 ℃
Crane Price Rangs	More Inquiry Form
PRICE RANGE: $2,500 – $4,500+ / set (for reference only) NOTE: Designed for limited room workshops. Typically with 3 chain falls, 4-way trolley movement, single or dual hoisting speed. Contact us to get the latest price.
	[email protected] 008615038346929

7.5 Ton Low Profile & Low Headroom Electric Chain Hoist

Low profile electric chain hoist 7.5 ton for limited room workshop . Low proof electric hoist with 3 chain falls, 4 movement direction including up and down, left & right , 1 or 2 hoisting speed for sale. Customized low profile electric chain hoist for sale at good price. Contact us today and get good price quotation tomorrow .

Technical specifications of 7.5 ton low profile chain hoist 3 chain fall & 4-motion

Carrying Capacity	Kg	7.500
Lift Height	mt	6
Lifting Speed	mt/dk	1.8
Execution Speed	mt/dk	11
Weight	Kg	193
Lifting Engine	kw	3.0
Execution Engine	kw	0.75
Engine Speed	r/min	1440
Phase	Adet	3
Energy	Volt	380
Frequency	Hz	50
Under Hook Distance	mm	890

Low profile electric hoists, which have different options depending on their use and location, can convert their various frequencies using an inverter. It is used to adjust the speed of the electric trolley and lift motor in order to provide a soft start and stop. As a result, vibration, mechanical stress, and wear during load transport are reduced. Please contact us to order your personalized low profile electric chain hoist.

Application of 7.5 ton electric Low profile chain hoist 4-motion 3 chain fall

Crane of Yuantai Low profile electric hoists can be configured and modified based on usage and requirements. These low profile hoist can also be used as a type of supplemental lifting equipment. Jib cranes, gantry cranes, overhead cranes, hoists, and chain hoists are all used in conjunction. It is suitable for use in mining operations, ports and docks, light and heavy industry, workshops, food and chemical industries, rolling mills, treatment plants, and other similar settings.

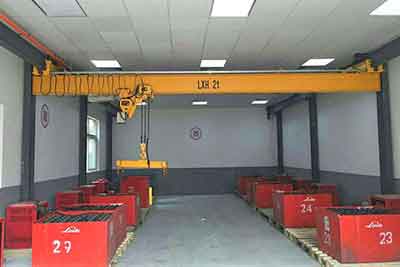

Overhead low headroom and low profile electric chain hoist crane

Low headroom gantry crane with eletric chain hoist

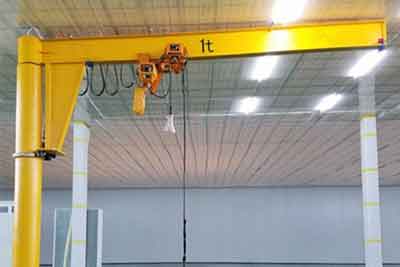

Low headroom jib crane with electric chain hoist

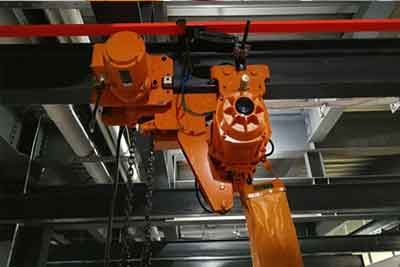

low headroom electric chain hoist on H beam

Features of 7.5 ton electric 4 motion low profile chain hoist

7.5 Ton low profile electric chain hoist from Yuantai Crane is designed with 4 movement direction and 3 chain falls for heavy load handling with capacity no above 7.5 ton.
Yuantai Crane Low profile chain hoists are ideal for long and strenuous tasks.
Worm gear transmission is used perpendicular to the axis of the roller's motor in its compact structure.
The Low profile electric hoist's body is made of a light yet strong high-quality alloy aluminum.
All metal parts are made of high-quality casting steel and meet IP 55 protection class.
The control equipment for the electric carrier motor is housed within the body and the entire thermoplastic panel.
The overload limit switch automatically stops the motor when it reaches the last point during lowering and lifting, preventing chain damage.
In the event of a power failure, the magnetic brake mechanism activates and provides abrupt braking.
Chain Storage Bag It is a lightweight and long-lasting that allows the lifting chains to be collected during chain descent.
It is used in conjunction with the remote control to allow for easy control by hand. It is possible to use wired or remote control options with lengths parallel to the lifting height.
Low profile electric hoists are connected to loads via hooks located at the chain's ends.
Chain hoist hooks are suspended, can rotate 360°, and have safety pins.
