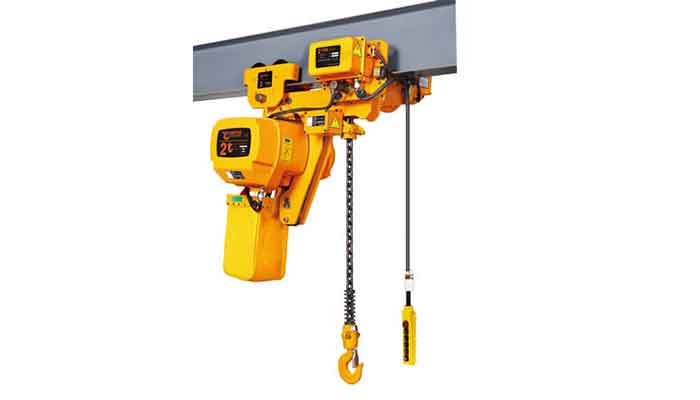

Low Headroom monorail electric chain hoist 500KG, 1 Ton, 2 Ton, 3 Ton,5 Ton
A low headroom monorail chain hoist is a lifting tool designed specifically for low ceiling workshops or for facility to lower construction cost.
It has remarkably low headroom when compared to standard electric hoists. The distance between the upper and lower hooks is shorter than on standard monorail chain hoists. The hook can be raised underneath the track, reducing the distance between the electric chain hoist body and the main beam track.
As a result, the lifting height is greatly improved, making it suitable for low workshops and other places with strict lifting height requirements.
Main specifications of low headroom electric chain hoist for light load handling
- Load capacity of low headroom hoist : 500KG, 1 Ton, 2 Ton, 3 Ton,5 Ton
- Lifting height of low headroom hoist : 3~30m
- Drive unit of low headroom hoist : Motorized
- Type of monorail chain hoist : Low headroom
- Working duty: A3, A4
- Power source: Based on your power supply
Technical data of monorail electric chain hoist
|
Type |
Capacity(ton) |
Lifting Height(m) |
Lifting Speed(m/min) |
Lifting motor |
Operating motor |
|
I-beam |
|
Power(kw) |
Rotation Speed(r/min) |
Power(kw) |
Rotation Speed(r/min) |
Operating Speed(m/min) |
|
HHBBL0.5-01S |
0.5 |
3/9 |
7.2 |
1.1 |
1440 |
0.4 |
1440 |
10/20 |
100-180 |
|
HHBBL01-01S |
1 |
3/9 |
6.8 |
1.5 |
1440 |
0.4 |
1440 |
10/20 |
100-160 |
|
HHBBL01-02S |
1 |
3/9 |
3.6 |
1.1 |
1440 |
0.4 |
1440 |
10/20 |
100-160 |
|
HHBBL02-01S |
2 |
3/9 |
6.6 |
3 |
1440 |
0.4 |
1440 |
10/20 |
100-160 |
|
HHBBL02-02S |
2 |
3/9 |
3.5 |
1.5 |
1440 |
0.4 |
1440 |
10/20 |
120-160 |
|
HHBBL03-01S |
3 |
3/9 |
5.6 |
3 |
1440 |
0.4 |
1440 |
10/20 |
120-180 |
|
HHBBL03-02S |
3 |
3/9 |
3.3 |
3 |
1440 |
0.4 |
1440 |
10/20 |
120-180 |
|
HHBBL05-02S |
5 |
3/9 |
2.8 |
3 |
1440 |
0.75 |
1440 |
10/20 |
120-180 |
|
HHBBL7.5-03S |
7.5 |
3/9 |
1.8 |
3 |
1440 |
0.75 |
1440 |
10/20 |
120-180 |
|
HHBBL10-04S |
10 |
3/9 |
2.8 |
3.0*2 |
1440 |
0.75 |
1440 |
10/20 |
120-180 |
|
HHBBL10-08S |
20 |
3/9 |
1.4 |
3.0*2 |
1440 |
0.75*2 |
1440 |
10/20 |
130-180 |
Application of low headroommonorail chain hoist 0.5 ton -5 ton
Due to its unique features and advantages, the low headroom monorail chain hoist is widely used in workshops where the headroom is low and the lifting height is high, such as general machinery production workshops, assembling, and warehouses.
Tailored low headroom hoists are available. Low headroom monorail chain hoists from Yuantai save working space, reduce building production costs, and meet material handling requirements.
Low headroom hoists can be configured and modified to meet specific needs. These low headroom electric chain hoists can also be used as complementary lifting equipment. These electric hoists are used in conjunction with various types of hoist cranes, such as gantry cranes, overhead cranes, jib cranes, and other workstation cranes, among others. It can be used in mines, ports and docks, light and heavy industry, workshops, food and chemical industries, rolling mills, treatment plants, and other similar settings.
What is a Low Headroommonorail chain hoist?
Heavy engineering products are made with precision, and Yuantai's low headroom monorail chain hoist is a prime example. This low headroom chain hoist is ideal for applications with limited headroom and offers smooth, safe, and maintenance-free operation.
When a standard electric chain hoist has insufficient headroom above the machinery to be lifted, an low headroom monorail chain hoist is used. The low headroom monorail chain hoist with low headroom is the result of extensive engineering and unique design, making it ideal for a wide range of applications.
Headroom comparison of electic chain hoists with standard, low headroom & hook mounted designs

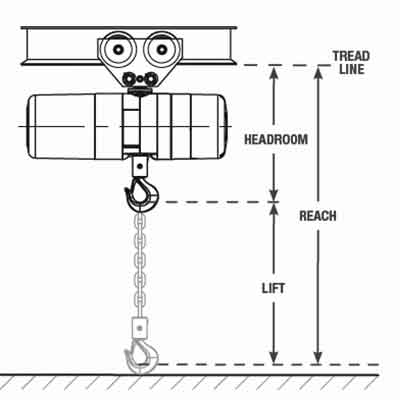

Headroom of standard electric chain hoist

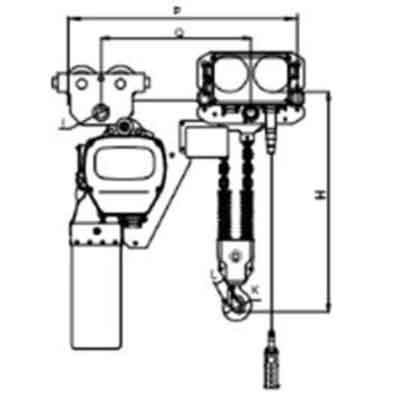

Headroom of low headroom electric chain hoist design drawing - H is the headroom

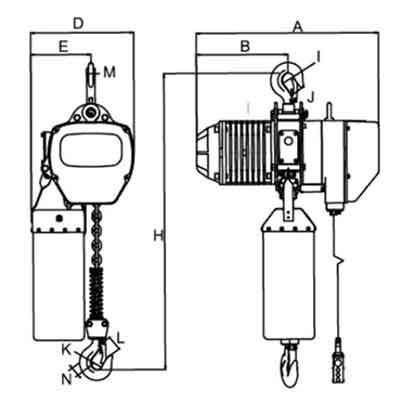

Headroom of hook mounted electric chain hoist design drawing - H is the headroom
What’s headroom of a hoist? The distance between the hoist suspension point and the fully raised hook saddle is referred to as headroom. The headroom dimension of a hoist with top-hook suspension is the distance between the saddle of the top hook and the saddle of the fully raised lower hook.
Benefits of low headroom electric chain hoist for new building
During the planning stage of a new building- When the construction of a new building is planned, the use of low headroom hoists allows the structure's height to be reduced because they require less space than standard hoists. This reduces the required height of the building or structure and helps save money on heating, materials, and air conditioning. Because of their configuration, low headroom monorail chain hoists are an ideal solution in such situations.
Benefits of low headroom electric chain hoist for existing workshops
When height becomes an issue in an existing building- When every centimetre counts for a building or structure, an low headroom monorail chain hoist is ideal. The load can be raised almost to the support beam with this series. These low headroom hoists are made with cutting-edge technology and can easily complete the tasks. This also allows for the possibility of using the existing frame without lifting the track upwards or downwards from the floor level. It has a wide range of applications, including below deck in ships and on oil platforms.
Features of low headroom electric chain hoist
- It runs smoothly and quietly and requires little maintenance.
- It comes with a plastic or canvas chain container.
- Safety upper-lower limit switch to prevent excessive lifting and lowering.
- Control voltage is reduced to 24 V for increased safety, and an emergency stop button is provided.
- The electric trolley now has a 4-button unit on the hoist.
- Trolley wheel flange width is manufactured in accordance with a special order specification for the designated beam. The low headroom electric hoist with trolleys can be adjusted to fit a variety of beams, including I-beams, fabricated box girders, universal beams, and H-beams.
- As optional specifications, special input voltages like 500 V, 440 V, 400 V, and 380 V are available.
- On request, custom load chains, power cords, and pendant chord lengths are available.
- Electric hoist lifting can be designed with single or dual speeds.
- Radio remote control and pendant control are optional.
- lVariable speed control incorporated with Dual Winding motor or VFD inverter.
Maintenance of low profile monorail electric chain hoist
- When in use, the low headroom monorail chain hoist is strictly prohibited from being used in any environment that is not permitted, as well as exceeding the rated load and rated closing times per hour.
- When installing, debugging, and maintaining the limit device, operators must ensure that it is usable and reliable.
- It is not permitted to press two buttons that move the low headroom electric hoist in opposite directions at the same time.
- To avoid accidents, the main power supply must be turned off once the work is completed.
- The low headroom monorail chain hoist should be operated by a professional who fully understands the safety operation regulations.
Hot capacity of electric chain hoist for low ceiling workshops
0.5-5 ton low headroom electric chain hoist drawing
10 ton low headroom electric chain hoist drawing
20 ton low headroom electric chain hoist drawing
