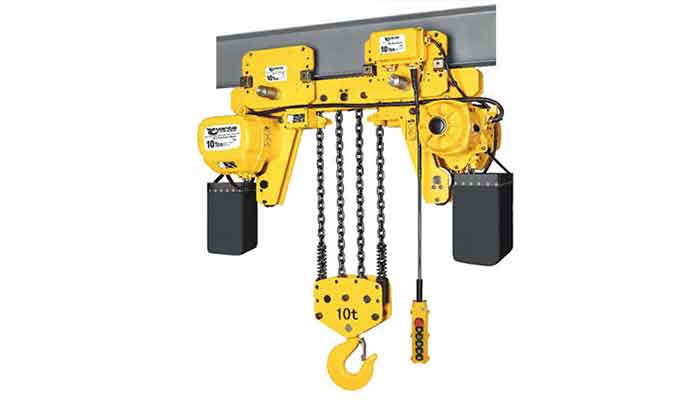

10 Ton Low Headroom Electric Chain Hoist for Low Ceiling Workshops

Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

Low headroom electric chain hoists 10 ton, designed for higher hook height in low ceiling workshops. Check low ceiling hoists & low headroom workshop hoist.

10 Ton Low Headroom Electric Chain Hoist for Low Ceiling Workshops

Product Type:	Low headroom electric chain ho
Lifting Capacity:	10 ton
Span:	/
Lifting Height:	As your requirement
Working Class:	M3,M4
Ambient Temperature:	-20-+40 ℃
Crane Price Rangs	More Inquiry Form
PRICE RANGE: $3,500 – $5,000+ / set (for reference only) NOTE: Optimized hook height for low ceiling environments. Heavy-duty design with single or dual speed. Contact us to get the latest price.
	[email protected] 008615038346929

Overview

Low headroom electric chain hoists 10 ton are specially designed for higher hook height in low ceiling workshops or facilities.10 ton electric chain hoists designed for your workshops. The low ceiing hoists & low headroom workshop hoist for sale at cost-effective price. Contact us to get customized low ceiling electric chain hoist design for your workshop.

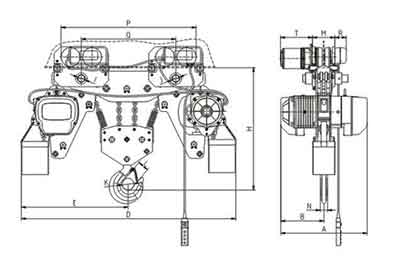

Main parameters of electric chain hoist 10 ton

10 ton electric chain hoist with low headroom/low profile hoist design, manual trolley, and electric trolley saves space and improves efficiency. Check out the parameters and specifications for a 10 ton low headroom chain hoist right now. Yuantai Crane electric hoist for sale at a good hoist price, from China, your 10 ton electric hoist supplier.Capacity(t) of low headroom hoist

Specifictions of electric chain hoist	10 t
Lifting Speed(m/min) of low ceiling hoist	2.7	2.7/0.9
Motor Power(kw) of low ceiling workshop hoist	3.0x2	3.0x2/1.0x2
Rotations Speed(r/min) of electric chain hoist	1440	2880/960
Insulation Grade of electric hoist	F
Power Supply of electric low headeroom hoist	3P 220V 690V
Control Voltage of electric hoist	24V/36V/48V
No.of Chain of powered chain hoist	4	4
Spec.of Load Chain of motorized chain hoist	φ11.2
Net Weight(kg) of electric chain block	300	380

Features of low headroom electric chain hoist

An ultra-low headroom electric chain hoist is a type of electric chain hoist that is designed for applications with limited working space. The low ceiling workshop electric chain hoist operates smoothly and quietly in a variety of Class III applications. The low headroom electric hoists have the following features:
FEC G80 ultra heat-treated alloy steel chain is resistant to rain, sea water, and chemicals.
The standard voltage is 200-440 volts, three phase.
Capacity ranges from 0.5 to 10 tons.
Steel construction with direct acting motor brakes.

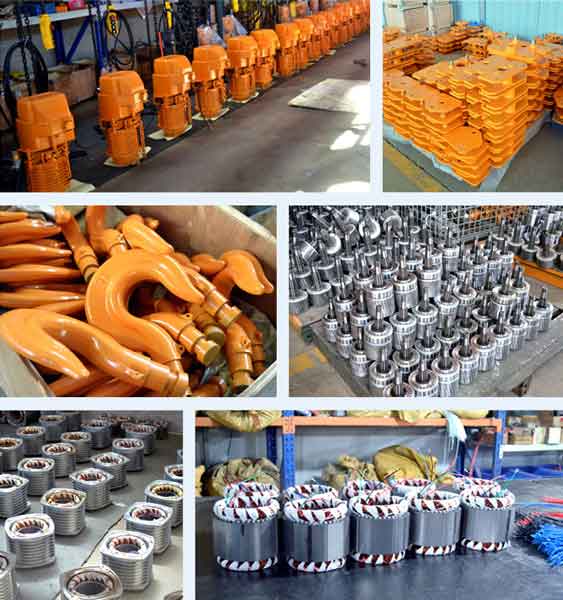

featured parts and components of 10 ton low headroom hoists in storages

Application of low headroom electric chain hoist

The low headroom electric chain hoist is widely used in workshops where the headroom is low and the lifting height is high, such as general machinery production workshops, assembling, and warehouses, due to its unique features and advantages.

Low ceiling workshop electric chain hoist are all available to you. Yuantai Crane low headroom series low headroom electric chain hoists save working space, reduce building production costs, and meet material handling requirements.

Safety instructions for low ceiling electric chain hoist

Yuantai low ceiling workshop hoists are all outfitted with safety features such as limit switches, overload protection, double brakes, and so on. However, danger caused by improper operation cannot always be avoided. Please carefully read the safety instructions and work as safely as possible.

Before beginning to lift, ensure that the safe working load will not be exceeded.
To avoid accidents when lifting loads, make sure they are in a stable position.
A clean and safe working environment should be provided.
Never attempt to repair a problem while the load is suspended.
When attaching loads, pay attention to the relevant instructions.
When the hook is distorted, never try to straighten it.
Never handle metal components without wearing protective gloves.
Before commissioning, the hoist and trolley must be tested and inspected by a qualified person.Report any damage or defects to the responsible person as soon as possible, and do not use the hoist until it has been repaired.
