Dual-Hook 5 Ton+ 5 Ton Gantry Crane for Sale Saudi Arabia

Single Girder Gantry Crane with Two Hooks 5 Ton + 5 Ton for Sale in Saudi Arabia

This case study highlights a single girder gantry crane equipped with two hooks, each with a 5-ton lifting capacity. This design is ideal for operations that require handling multiple or varying loads efficiently.

Dual-hook gantry cranes provide greater flexibility in lifting tasks. They allow simultaneous lifting of different loads or balanced handling of larger items by using both hooks together. This helps reduce waiting times and boosts worksite efficiency.

The focus here is on a 5+5 ton crane tailored for the Saudi Arabian market. The aim is to present detailed specifications and practical benefits, helping buyers make informed decisions based on their specific lifting needs.

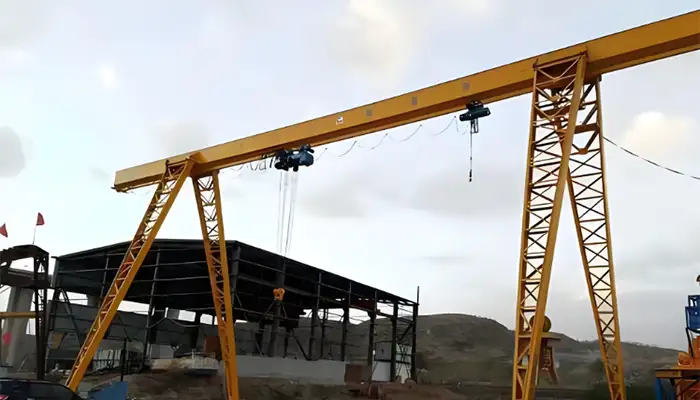

single girder gantry crane with two hooks and two trolleys  for outdoor material handling for your reference

Project Overview

This single girder gantry crane with two 5-ton hooks is designed specifically for a client in Saudi Arabia. The location brings its own set of considerations, such as climate conditions and site infrastructure, which the crane is built to handle.

While the exact application wasn’t detailed, cranes like this are commonly used in industries such as construction, manufacturing, and logistics. These sectors often need to move heavy materials efficiently across open yards, warehouses, or outdoor storage areas.

Key requirements for this project included:

• High lifting capacity: Two hooks rated at 5 tons each allow for handling a variety of loads without swapping equipment.
• Long span with cantilevers: The 30-meter main span plus 7-meter and 9-meter cantilevers on the sides provide extended reach, enabling loading and unloading in wider work areas.
• Adequate lifting height: With a 12-meter lifting height, the crane can operate over tall stacks or equipment.
• Robust duty class (A5): Suitable for medium-heavy continuous operation, ensuring reliability in demanding work cycles.
• Safe and efficient operation: Moving cabin room control provides the operator with clear visibility and precise control, enhancing safety and productivity.

The crane effectively addresses the challenges of handling varied loads in a large workspace, while meeting the environmental and operational demands typical in Saudi Arabia.

Crane Specifications

This single girder gantry crane is equipped with dual hooks, each capable of lifting 5 tons. This means it can handle two loads at once or work with separate loads independently, making it highly flexible for various lifting tasks.

• Span Length: The main span stretches 30 meters, providing a wide coverage area ideal for large workspaces or storage yards.
• Cantilever Extensions: On either side, the crane features cantilevers—7 meters on the left and 9 meters on the right. These give the crane extra reach beyond the main span, allowing it to cover awkward or extended loading zones without needing to move the entire structure.
• Lifting Height: With a 12-meter lift height, the crane suits most medium-height applications, such as stacking materials or loading trucks.
• Duty Class A5: This rating means the crane is built for moderate but frequent lifting cycles. It’s reliable enough for daily use in busy industrial settings without excessive wear.
• Control Mode: The moving cabin room control system offers the operator excellent visibility and precise control. Being in the cabin allows for safer and more accurate operation compared to remote controls, especially when handling complex lifts with two hooks.
• Power Supply: Designed to run on the standard industrial power in Saudi Arabia—380 volts, 50 Hz, and 3-phase supply—ensuring compatibility and stable operation.
• Electrical Components: All major electrical parts, including switches and contactors, are from Schneider. This brand is known for quality and durability, helping reduce downtime and maintenance issues.
• Frequency Inverter: The crane uses a Schneider frequency inverter, which allows smooth acceleration and deceleration of the crane movements. This reduces mechanical stress, saves energy, and improves overall handling precision.

Together, these specs make this crane a robust and flexible solution for clients needing reliable lifting power combined with extended reach and operator-friendly controls.

Key Benefits of 5 Ton + 5 Ton Gantry Crane Model for Buyers

This single girder gantry crane with dual hooks offers several practical advantages, especially for buyers in Saudi Arabia who need reliable, flexible lifting solutions.

Flexibility & Efficiency

• Dual Hooks for Versatile Lifting: Having two hooks means you can handle different loads at the same time or position complex loads more easily. This cuts down waiting times and keeps your workflow steady.
• Extended Reach with Cantilevers: The 7-meter left and 9-meter right cantilevers increase the crane’s working area beyond the main 30-meter span. This means you can reach places that would otherwise require repositioning the crane, saving time and effort.
• Moving Cabin Control for Operator Safety: The operator’s cabin moves with the crane, giving better visibility and control. This setup enhances safety by allowing the operator to closely monitor the load and surroundings, reducing the risk of accidents.

Reliability & Quality

• Schneider Electrical Components: The crane uses electrical parts from Schneider, a trusted brand known for reliable and durable equipment. This lowers maintenance needs and ensures smoother operation over time.
• Energy-Saving Frequency Inverter: The built-in Schneider frequency inverter allows for smooth starts and stops. This not only saves electricity but also reduces wear and tear on the crane’s mechanical parts, extending its lifespan.
• Duty Class A5: Rated for moderate but frequent use, this crane is designed to handle daily lifting tasks without wearing out prematurely. That means fewer breakdowns and more uptime for your operations.

Suitability for Saudi Arabia

• Local Power Compatibility: The crane runs on the common 380V / 50Hz / 3-phase power supply used throughout Saudi Arabia. This means easier setup with minimal adjustments or additional equipment.
• Versatile for Various Environments: Whether it’s installed indoors in a warehouse or outdoors on a construction site or yard, the crane’s design fits the typical industrial settings found in the region, making it a practical choice for diverse applications.

In short, this crane combines practical features, robust quality, and local compatibility — all important factors that help buyers get the best value for their investment.

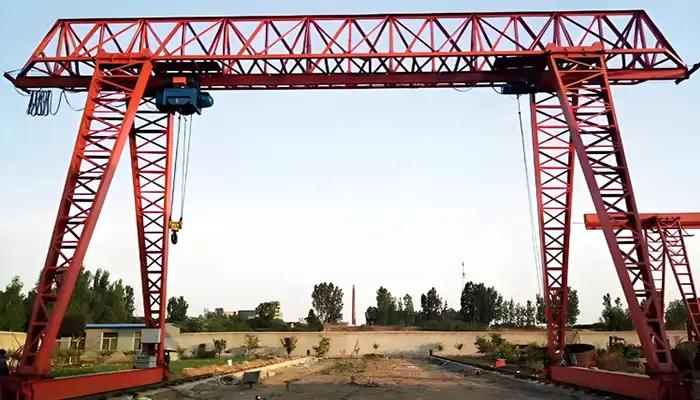

truss girder double hook hoist gantry crane for high wind outdoor application

Cost and Value Considerations

When deciding to invest in this single girder gantry crane with two hooks, it’s important to look beyond the sticker price and understand the real value it delivers over time.

Efficiency Justifies the Investment

• Dual-Hook Operation Saves Time: With two hooks, your crane can handle multiple loads or complex lifts simultaneously. This cuts down the number of crane movements, reducing cycle times and speeding up operations. Faster handling means you get more work done in less time, which helps offset the higher initial cost.
• Reduced Labor and Equipment Needs: Because the crane can manage different loads without switching gear or repositioning, you avoid extra labor costs and reduce the need for additional handling equipment. This streamlines your workflow and lowers overall project expenses.

Quality Components Lower Long-Term Costs

• Reliable Electrical Parts: Using Schneider brand electrical components ensures fewer breakdowns and easier maintenance. High-quality parts last longer and perform consistently, meaning you spend less on repairs and replacement parts over the crane’s life.
• Frequency Inverter Benefits: The energy-efficient frequency inverter not only saves electricity but also reduces wear on mechanical parts. This means fewer costly repairs and less downtime, both of which protect your bottom line.

Workspace Optimization Adds Value

• Customized Span and Cantilever Lengths: The 30-meter main span combined with 7- and 9-meter cantilevers is tailored to maximize your working area. This design lets you reach wider zones without moving the crane or adding extra equipment like forklifts or mobile cranes, saving space and cutting costs.
• Better Fit for Your Site: A crane customized to your site’s dimensions means fewer structural changes and lower installation costs. It also reduces future expenses related to workspace modifications or equipment upgrades.

This crane’s upfront cost reflects its dual-hook capability, quality parts, and optimized design—all factors that improve productivity and reduce ongoing expenses. For buyers looking for reliable performance and cost efficiency in Saudi Arabia, this crane offers solid value over the long run.

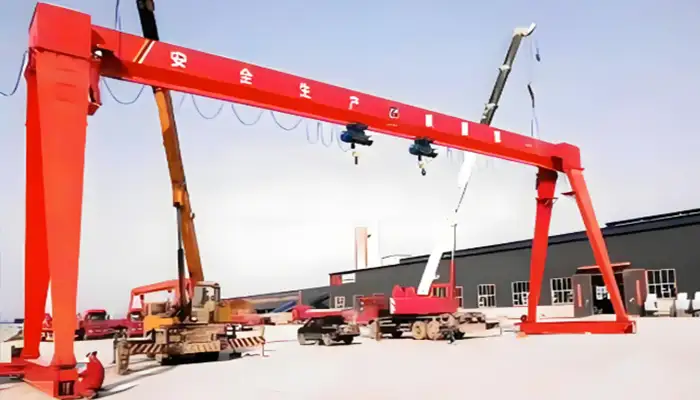

single girder gantry crane double hook without cantilever for your reference


Installation and After-Sales Support

Choosing the right crane is just the first step. How it’s installed and supported afterward can make a big difference in your overall experience and return on investment.

Professional Installation Services

• Experienced Team: The crane comes with professional installation handled by trained technicians who understand the specifics of dual-hook gantry cranes. This ensures your crane is set up correctly and safely from day one.
• Compliance with Local Standards: Installation follows Saudi Arabia’s industrial safety and electrical regulations, helping you avoid costly compliance issues or delays.
• Site Assessment and Preparation: Before installation, a thorough site survey is conducted to identify any structural upgrades or special requirements, ensuring a smooth and efficient setup.

Technical Support and Operator Training

• Operator Training on Dual-Hook Operation: Operating a crane with two hooks and a moving cabin control requires specific skills. Our training programs focus on safe and efficient handling of simultaneous lifts, hook switching, and precision controls to minimize risks and maximize productivity.
• Ongoing Technical Support: After installation, responsive technical support is available to assist with any questions or troubleshooting. This reduces downtime and helps your team quickly resolve issues without waiting for external service.

Spare Parts and Maintenance Packages

• Easy Access to Spare Parts: Having two hooks means more components that can wear out. We ensure a steady supply of genuine Schneider electrical parts and other crane-specific spares, so repairs are quick and reliable.
• Flexible Maintenance Packages: Choose from basic inspections to full-service maintenance contracts designed to keep your crane running smoothly for years. Regular maintenance helps prevent unexpected breakdowns and extends the life of your investment.

With professional installation, dedicated operator training, and comprehensive after-sales support, buyers in Saudi Arabia can confidently operate their dual-hook gantry crane, knowing help is always available. This support not only enhances safety but also protects your investment and keeps your operations running without interruption.

Buyer Recommendations

When considering a single girder gantry crane with two hooks, it’s essential to understand who will benefit most and what to look out for during purchase and installation.

Who Should Consider This Crane?

• Clients Needing Flexible Load Handling:
  If your operations involve lifting different types or sizes of loads—sometimes at the same time—this crane’s dual-hook design is perfect. You can handle separate loads simultaneously or position complex loads precisely without swapping equipment constantly.
• Operations Requiring Extended Reach:
  The cantilever extensions (7m on the left, 9m on the right) give you more workspace without needing additional cranes or equipment. This is especially useful in congested yards or where material stacking and storage require extra maneuvering space.
• Medium Lifting Capacity Needs:
  With a total capacity of 5+5 tons, this crane fits industries where lifting tasks are moderate but frequent—enough to need durable equipment without overspending on oversized machinery.

Suitable Industries in Saudi Arabia

• Construction Yards:
  Moving building materials, steel structures, or heavy equipment around large outdoor sites.
• Logistics and Warehousing:
  Handling cargo, pallets, and containers efficiently, especially where simultaneous lifts speed up loading and unloading.
• Manufacturing Plants:
  Facilitating assembly lines, moving components, and managing inventory with precision and reliability.

Key Considerations Before Buying

• Assess Your Power Supply:
  The crane is designed for 380V / 50Hz / 3 Phase power, which is standard in Saudi Arabia. Confirm your site’s electrical system matches this to avoid costly modifications.
• Evaluate Available Space and Structural Capacity:
  Make sure your facility has adequate runway length and structural support for the 30m span plus cantilevers. This ensures the crane operates safely and efficiently without needing costly building upgrades.
• Plan for Operator Training:
  Dual-hook operation and moving cabin controls may require specialized training. Factor this into your timeline and budget for a smooth transition.

This crane is a strong choice for buyers in Saudi Arabia who want versatility, reach, and reliable medium-capacity lifting. By carefully checking power compatibility, space, and training needs, you can maximize the benefits and value of your investment. Click to learn more about types of overhead cranes and gantry cranes for sale Saudi Arabia .

Conclusion

This single girder gantry crane with two hooks stands out for several key strengths that make it a solid investment for many buyers. First, the dual-hook design offers unmatched flexibility, allowing operators to lift different loads at the same time or handle complex lifting tasks with greater precision. This feature alone can improve workflow and reduce downtime significantly.

The extended span of 30 meters, combined with the left and right cantilevers (7m and 9m respectively), increases the working area without needing additional cranes or equipment. This extended reach is especially valuable in tight or busy industrial environments, enabling efficient material handling over a broader space.

Another major plus is the use of trusted, high-quality components from Schneider, including the electrical systems and frequency inverter. These parts are known for durability, ease of maintenance, and smooth operation, which helps reduce unexpected breakdowns and extends the crane’s service life.

When deciding to invest, it’s important to consider how this crane balances cost with functionality and reliability. Although the initial purchase and installation may be higher compared to simpler cranes, the operational efficiencies and lower maintenance needs often make it cost-effective in the long run.

Finally, every operation is unique. We strongly recommend consulting directly with manufacturers or suppliers to discuss your specific lifting requirements, site conditions, and budget. Tailored solutions ensure that you get the right crane configuration that matches your operational needs perfectly, maximizing your investment’s value and performance.
