Truss Crane, Truss Gantry Crane,Single Girder Gantry Crane Design -MH Series

Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

Truss crane, single girder gantry crane design, 3 ton -16 ton, for outdoor application with high wind resistance. Get your single girder truss crane.
√Gantry Crane Type: MH, √ Capacity : 3.2~32 ton, √ Span: 12-30m, √ Working Class:A3 - A 5

Truss Crane, Truss Gantry Crane,Single Girder Gantry Crane Design -MH Series

Product Type:	MH Single Girder Truss Ganty
Lifting Capacity:	3.2-32tons
Span:	12-30m
Lifting Height:	6-9m or customized
Working Class:	A3-A5
Ambient Temperature:	-20~40℃
Crane Price Rangs	More Inquiry Form
General Price Range: $8,000 – $60,000 Notes: Truss structure increases cost; designed for high wind resistance outdoors. Contact us to Get Latest Price.
	[email protected] 008615038346929

Overview of Single Girder Truss Gantry Crane for Outdoor Yards

MH Type single girder truss crane is a type of single girder gantry crane, equipped with CD, MD hoist trolley, as the lifting system, crane operating mechanism, electric device and others. The structural form welded by angle steel or I-beam has the advantages of being low in cost, light in weight, and wind resistant. However, due to the large number of welding points and truss defects, truss beam or truss girder crane have the disadvantages of large deflection, low rigidity, relatively low reliability, and frequent detection of welding spots. Suitable for sites with low safety requirements and a light lifting load.

According to different applications, the single girder truss crane can be designed with one cantilever, double cantilever or no cantilevers, which allow the hoist trolley to carry goods going beyond between the supporting legs, which is very convenient and efficient. It is appropriate for small and medium lifting loads on outdoor working sites in factories, mines, warehouses, and so on.

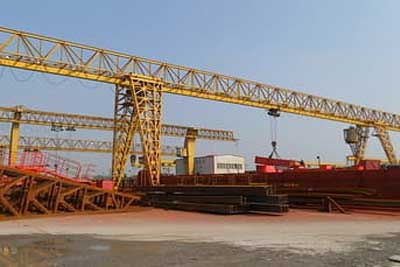

Single girder truss gantry crane with single cantilever

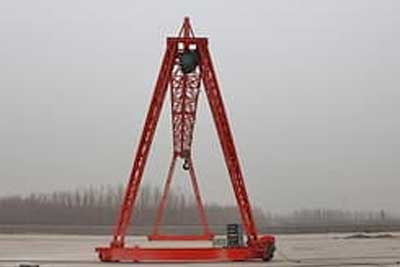

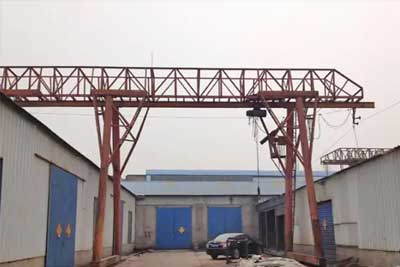

Single girder truss gantry crane with no cantilever

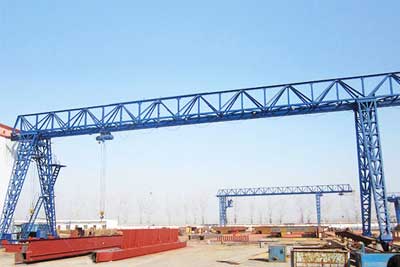

Single girder truss gantry crane with one cantilever

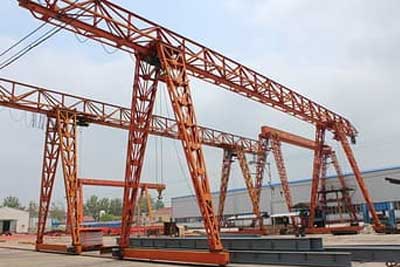

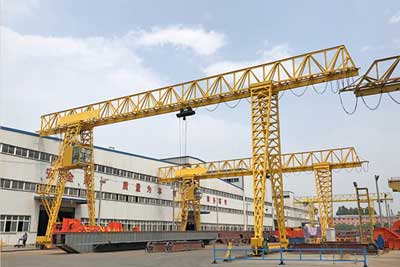

Single girder truss gantry crane with double cantilever

Applications of single girder truss crane

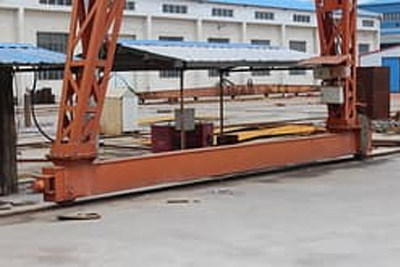

The main beam, support legs, ground beam, and crane traveling mechanism are the main parts and components of MH series of single girder truss cranes. The complete truss crane system has a low dead weight, a simple structure, and is simple to install and maintain. With the mentioned advantages, the single girder gantry crane with truss girder design are widely used outdoors in various industrial application for material handling.

Usually, the single girder truss gantry is for general material handling and is not allowed in the hazardous environment, however, if you need gantry crane or overhead crane for material handling in an environment containing flammable, explosive, or corrosive gas, please notify Yuantai Crane so that we can outfit the safe crane with appropriate safeguards. Your chosen crane control method has three options: ground control, wireless remote control, and driver’s cab control.

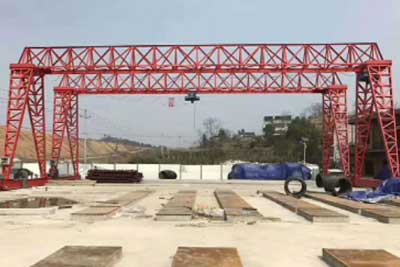

Single girder truss gantry crane for steel beam handling

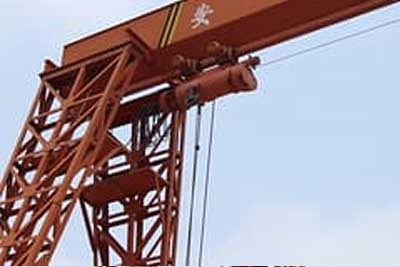

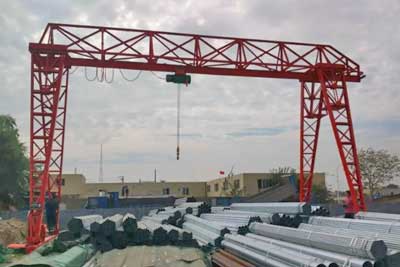

Single girder truss gantry crane for long steel pipe handling

Single girder truss gantry crane for concrete beam handling

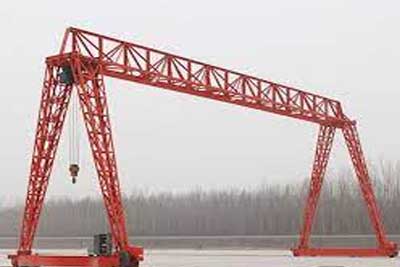

Single girder truss gantry crane with cutomized gantry design for your specific application.

How does truss crane benefit you?

The single girder truss crane is an excellent material handling solution that is widely used to increase output while maintaining safety. It provides numerous benefits to truss crane users.

High wind resistance ability due to the truss crane has a small windward area.
The structure and components of the single girder truss crane use shaft connecting, making it simple to assemble, disassemble, and transport.
This lifting truss gantry is typically operated in the driver's cabin to ensure the safety of the operators.
The truss crane can handle heavy lifting work quickly and efficiently, significantly increasing productivity on your production lines.
The truss crane has a sturdy construction. Due to the use of quality components and precision machining, our truss cranes have superior quality and a longer service life.
Our truss crane can perform consistently and reliably in high-wind environments.

Features of single girder truss crane

Structure that is reasonable and performs well.
Smooth start-up and shutdown.
Long life, safe and reliable
Low noise, comfortable driver’s cabin with a good view.
Installation is simple, and maintenance is simple.
Excellent part and component interchangeability.
Crane drive: IP54 or IP44, insulation level F.

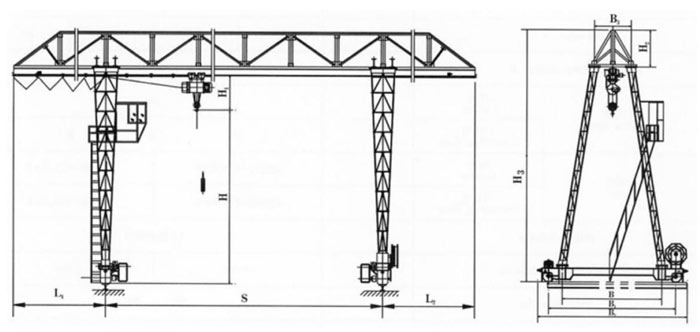

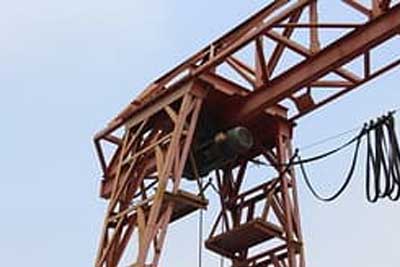

A frame truss structure of single girder gantry crane

Questions to consider when choosing a truss crane

When shopping for a truss truss crane, there are obviously many factors to consider in order to find the best overhead lifting system for your needs. Considerations include, but are not limited to:

What is the capacity and size of the truss crane you require?
How frequently will you use the gantry crane intermittently or on a regular basis?
Where will the truss crane be put to use?
What kinds of load will you be working with? Are there any potential hazards in the workplace?
What kind of gantry control system will you need to move the truss crane?
What safety devices are required to improve gantry crane safety?
How much money do you have set aside for a truss crane?

A thorough assessment can help you choose the best truss crane for your needs, saving you time and money. We will also gladly help you design the best gantry lifting system. If you have any questions, please contact us; we would be happy to clear your doubts and solve your problems.

Frequently Asked Questions – Single Girder Truss Gantry Crane

This crane is ideal for outdoor material handling in yards, warehouses, factories, and construction sites. It is suitable for light to medium-duty lifting tasks such as steel beams, pipes, and concrete components, especially in windy environments.

The truss structure is lighter, more cost-effective, and offers better wind resistance due to its smaller windward area. However, it has lower rigidity and requires more frequent inspection compared to box girder cranes.

Truss gantry cranes are typically used for small to medium loads. Buyers should confirm maximum load weight, lifting frequency, and include a 20–30% safety margin when selecting capacity.

Yes. The crane can be designed with no cantilever, single cantilever, or double cantilever. Cantilevers allow the hoist to move beyond the supporting legs, improving handling flexibility.

Standard truss gantry cranes are not suitable for hazardous environments with explosive or corrosive gases. Explosion-proof or customized designs can be provided if required.

Due to multiple welded joints, truss cranes may have larger deflection, lower rigidity, and require regular inspection. They are not ideal for heavy-duty or high-precision applications.

Control options include pendant (ground) control, wireless remote control, and driver's cabin operation, depending on site conditions and safety requirements.

Key factors include lifting capacity, span, lifting height, duty cycle, working environment, load type, power supply, wind conditions, and future expansion requirements.

Quality truss crane for Sale

Yuantai Crane, with a professional crane technical team, is ready to provide a one-stop crane services ranging from crane design to future crane maintenance in order to meet your practical needs while saving you money on crane costs. We provide a one-stop lifting solution, including gantry crane model selection, equipment manufacturing, delivery, installation, commissioning, and maintenance, as China's leading truss crane manufacturer and service provider. In order to improve crane quality and performance, we are also committed to crane research and development and quality control management. We strive to provide the best service possible while also adding the most value to our clients' lives.

Contact our truss crane sales manager and gantry crane engineer online or leave a message to get your customized crane design and solution at cost -effective price.
