1 ton gantry crane with manual hoist overview - types, how to select, gantry hoists, & how to install hoist to gantry crane. 1 ton portable gantry crane for sale, good price.

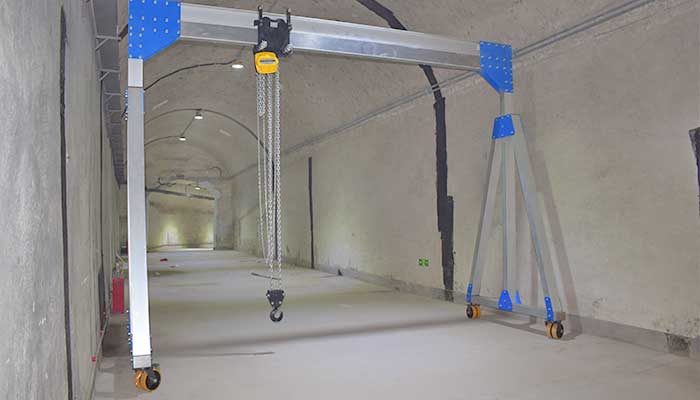

The 500kg 1 ton gantry crane manufactured by Yuantai is equipped with manual chain hoists. The 1 ton gantry cranes are available with various types and can be equipped with different chain hoists , such as , general use chain hoists, stainless steel chain hoists, explosion-proof chain hoists, etc. With simple structure and components, the 500kg 1 ton gantry cranes are easy to install and operate smoothly. Equipped with a chain hoist block, it can walk left and right on the I-beam track of the small gantry crane, which is very suitable for equipment installation, debugging, and handling operations in factory and workshops, and other other clean rooms, etc.

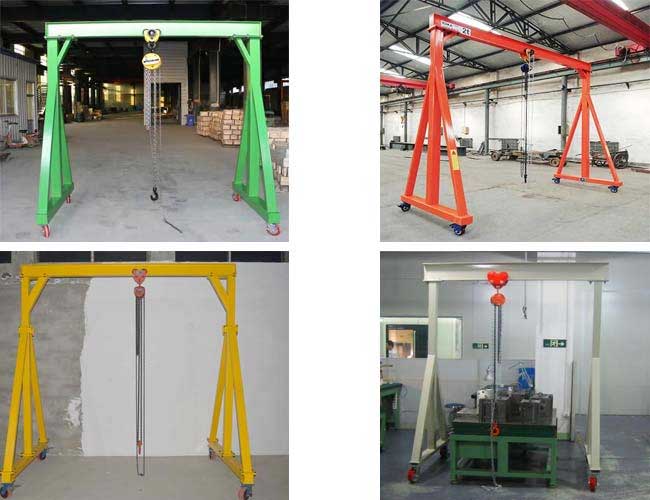

Classification of 500 kg 1 ton gantry cranes
(1) According to the construction material, it can be divided into: ordinary steel small gantry crane which provides more strength , aluminum alloy gantry crane which is lighter, rust-proof and corrosion-resistant.
(2) According to the gantry travelling power, the 500kg 1 ton gantry crane can be divided into: hand-push small gantry crane, hand-push height-adjustable small gantry, electric walking small gantry, electric walking height-width adjustable small gantry, four combination types.
3) According to different usages or application environment : general use gantry & explosion proof gantry cranes
How to select a small gantry crane 500kg 1 ton for your use ?
Parameters that you need to determine on 1 ton gantry crane selection
- Rated load: ( ) tons.
- Beam span: ( ) m.
- Equipment height: ( ) meters.
- Chain hoist configuration (electric or manual): chain hoist + hand-pulled travelling trolley; chain hoist + hand-pushed travelling trolley .
- Chain hoist driving form: horizontal manual ( ); both vertical and horizontal manual ( ).
- Removable (yes/no).

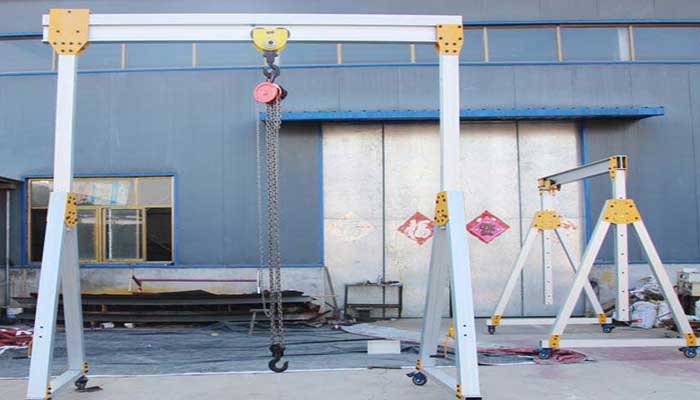

Manual chain hoist for 1 ton steel gantry crane
HSZ type chain hoist, also known as round chain hoist, manually rewinds the chain. The shell is made of pressed alloy steel, which is beautiful in appearance, strong and durable. The G80 chain is a lifting chain, which has undergone high-frequency quenching treatment and is safe to use. The overall structure design is reasonable, the mechanical efficiency is high, the pulling force of the bracelet is small, and the operation is simple. Paired with a small gantry crane, it is very suitable for machine installation, cargo lifting, vehicle loading and unloading, etc. in industry, agriculture, construction, mining, etc. It has obvious advantages in open air and no power supply operations.
1 ton gantry crane with stainless chain block
304 stainless steel manual hoist has the advantages of anti-rust, anti-magnetic, corrosion resistance, light weight, easy to carry, more practical than HSZ type chain hoist, aluminum alloy gantry crane itself has the characteristics of high cleanliness, with stainless steel hand chain hoists are suitable for use in various environments with special requirements such as cleanliness and corrosion resistance. It is mostly used in food processing factories, wet and rainy areas in the south, marine operations, mineral water, handling and packaging of larger equipment in factories, etc.
The HSS-A stainless steel chain hoist hook is used to fix and lift materials alone, and it can also be used with a stainless steel hand-pulled sports car as a walking mechanism, fixed on the I-beam to realize left and right walking, and running lifting operations. Before the matching installation, it is necessary to check whether the model of the stainless steel hand-pulled sports car and the I-beam are consistent. 1 ton of hoist is matched with 1 ton travelling trolley to prevent dangerous situations such as breakage or derailment of the I-beam during lifting.
(3) The two sides of the I-beam are wider and the middle is narrower. Before installation, we need to ensure the rollers of the stainless steel hand-push trolley are installed on the lower end beam of the I-beam to fasten the parts of the hand travelling trolley to prevent it from falling down during operation.

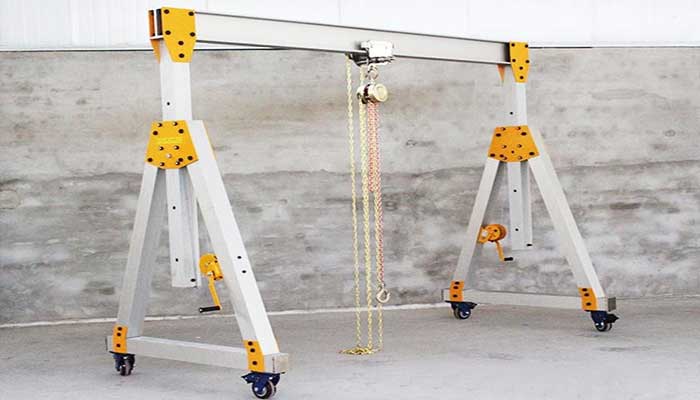

1 ton aluminum gantry crane with explosion proof chain hoist
The HBSQ type explosion-proof chain hoist is made of aluminum bronze and beryllium bronze, and the shell is made of H62 copper alloy. Forced friction parts include the hoisting wheel, bracelet wheel, wall panel, hook, gear, and gear shaft that constitute the chain hoist, all of which are made of aluminum bronze and beryllium bronze alloy materials. Chain friction will not cause adverse reactions such as fire and explosion.
- The application: explosion-proof chain hoists application conditions: Class I and Class II, and the working class is Class Z and Class Q.
- Lifting capacity (ton): 0.5, 1, 2, 3.
- Standard hand chain length: 2.5 meters, 3 meters. The hand pull length refers to the distance from the top point of the outer circle of the hand chain wheel to the sag point of the hand chain.
- Uses： The HBSQ type explosion-proof chain hoist is equipped with an explosion-proof monorail trolley, which can be installed on the I-beam rail to move left and right to lift and unload heavy objects less than 3 tons. The explosion-proof hand trolley is driven by a bracelet, and the explosion-proof hand trolley is driven by hand pushing and lifting heavy objects. It can walk freely on the lower flange of the I-shaped steel rail, and the distance between the wheel rims can be adjusted according to the width of the I-shaped steel rail. Explosion-proof chain hoists are suspended under the track to form a manual lifting transport trolley, which can manually move a certain heavy object to another position, which is convenient to use.
- Features： HBSQ explosion-proof chain hoists will not produce mechanical sparks when they rub against each other, which can effectively prevent fire accidents and have a high protection level. Matched with aluminum gantry crane, it is suitable for use in various places with special needs such as cleanliness and corrosion resistance. It is light and easy to carry, and easy to disassemble and assemble.

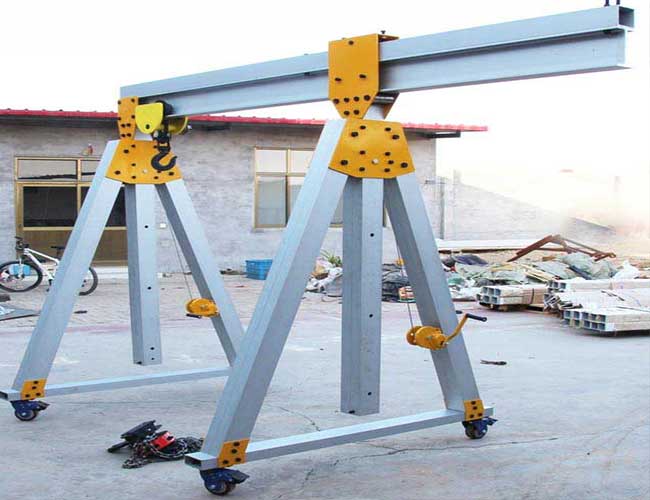

500kg 1 ton gantry crane with chain block has obvious advantages in places without power supply. The aluminum alloy 1 ton gantry crane can adjust the height and span, and supports left and right lateral movement. The thickened steel plate is safe to use and can be customized according to the size. If you have any question or any requirements on 500kg and 1 ton gantry crane, please feel free to contact us.
