Panama 5 Ton LD Single Girder Overhead Crane with Chain Hoist

Reliable 460V 60Hz Workshop Lifting Solution | Yuantai Crane / BetterCrane

Heavy-Duty Yet Cost-Efficient Overhead Crane for Industrial Workshops in Panama

For mid-sized workshops in Panama, efficient material handling is a direct factor in production speed, safety, and labor cost control. This LD type single girder overhead crane (5 ton capacity) equipped with an electric chain hoist system is designed to deliver stable lifting performance in standard industrial environments with 460V / 60Hz / 3-phase power supply.

This project demonstrates a typical configuration used in manufacturing plants, maintenance workshops, and general fabrication facilities where reliability and cost efficiency are equally important.
ld overhead crane drawing for your reference

ld overhead crane drawing for your reference

Project Overview

Location: Panama
Crane Type: LD Single Girder Overhead Crane
Lifting Capacity: 5 Ton
Span: 4.5 meters
Lifting Height: 5 meters
Hoist Type: Electric Chain Hoist
Power Supply: 460V / 60Hz / 3-Phase
Working Class: A3–A4 (Medium Duty)

This configuration is widely selected for compact workshop layouts requiring smooth material transfer between workstations.

Why LD Single Girder Overhead Crane?

The LD series is one of the most widely used overhead crane systems for general industrial applications. It is designed to balance performance, cost, and installation simplicity.

Key Advantages

Lower investment compared to double girder crane systems
Lightweight structure reduces building load requirements
Simple maintenance with accessible components
Fast installation and commissioning
Suitable for steel structure and reinforced concrete workshops
Stable operation for repetitive lifting cycles

Electric Chain Hoist Integration

This system uses a 5 ton electric chain hoist, optimized for:

Compact headroom utilization
Smooth vertical lifting motion
High positioning accuracy
Reduced vibration during load handling
Lower maintenance compared to wire rope systems in light-duty applications

The integration ensures efficient lifting in narrow workshop spaces while maintaining operational stability.

Technical Performance Highlights (LD 5 Ton Single Girder Overhead Crane – Panama Project)

This LD type single girder overhead crane system is designed for everyday workshop lifting in Panama industrial environments. The focus is not complex automation, but stable lifting, simple structure behavior, and long-term workable performance under standard 460V / 60Hz industrial power conditions.

The crane uses a single girder beam structure, which is commonly selected for 1–10 ton workshop crane applications where building space is limited and load restriction matters.

The beam design keeps the structure light, but still rigid enough for 5 ton handling tasks. In practical installation, this helps reduce stress on existing workshop steel frames.

Single girder beam layout for standard overhead crane systems
Suitable for light to medium duty industrial workshop lifting
Compact structure helps fit into small or mid-size factory buildings

The system also uses a modular end carriage design, which is practical for overseas shipment and on-site assembly.

End trucks are assembled in modules for easier transport
Wheel alignment can be adjusted during installation
Replacement parts can be serviced without full crane disassembly

Another practical point is the reduced structural weight. This matters in industrial projects.

Lower dead weight reduces load on runway beams and columns
Works well for older workshops or retrofit crane installation projects
Helps avoid additional steel reinforcement in many factory buildings

The electrical configuration is designed for 460V / 60Hz / 3-phase industrial power, which matches Panama industrial power supply standards.

The system is built for stable operation under regular workshop lifting cycles, not for high-speed automation lines.

Industrial motor system adapted for 460V 60Hz crane operation
Stable running under A3–A4 duty cycle working conditions
Designed for repeated lifting in fabrication and maintenance workshops

Motor behavior is controlled in a steady way during lifting and traveling.

Smooth start and stop reduces load swing during 5 ton lifting
Helps protect structure and hook system during frequent operation
Suitable for workshop material flow and assembly operations

An optional VFD soft start system can be added when smoother control is required.

Reduces electrical impact during startup
Improves lifting and traveling smoothness
Helps extend motor and gearbox service life in frequent use

Safety functions are built into the system to support normal workshop crane operation. The design follows basic industrial protection logic, focused on preventing common operational risks.

Overload protection system
Prevents lifting beyond rated 5 ton capacity and protects the crane beam structure during operation.
Upper and lower limit switches
Controls hoisting travel range to avoid hook over-travel and chain damage.
Emergency stop function
Allows operator to stop crane movement immediately in abnormal situations.
Electrical phase protection system
Protects motor from damage caused by incorrect phase sequence during power connection.
End buffer stops
Installed at runway ends to reduce impact when crane reaches terminal positions.

In industrial workshop operation, this system runs in a simple and direct way. It lifts, travels, stops, and repeats the cycle without unnecessary complexity. For many 5 ton class workshop users in Panama and similar industrial markets, this type of configuration is usually enough to support daily production work with stable and predictable performance.

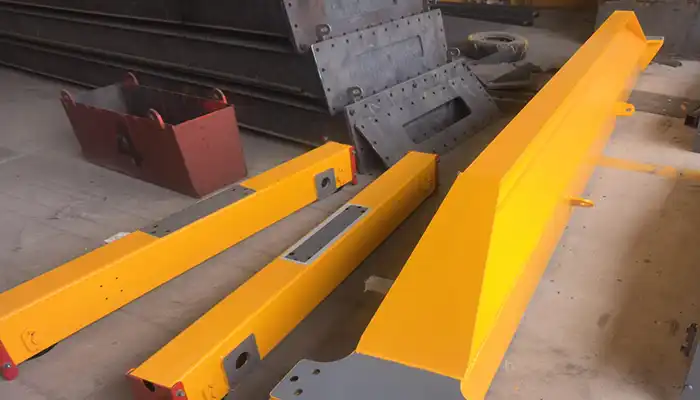

main girder and end cariers of overhead crane for sale Panama

Application in Panama Industry

The LD type single girder overhead crane is widely used in Panama industrial environments where daily lifting work is steady but not continuous heavy-duty production. It fits well into small and mid-size factories that need reliable material movement without the complexity of large crane systems.

In industrial workshop conditions, this type of crane is usually selected for general handling tasks, where operators move materials between production stations, storage areas, and processing equipment. It is simple in structure, and that is often exactly what many factories prefer.

General manufacturing workshops for routine material transfer and assembly support
Steel fabrication plants handling steel plates, sections, and semi-finished components
Equipment maintenance facilities where machines and parts need lifting during repair work
Automotive repair and assembly lines for engines, components, and chassis handling
Warehouse and logistics areas for loading, unloading, and internal material movement
Small and medium production factories with consistent but moderate lifting demand

In Panama industrial practice, many workshops operate with limited building height and moderate floor space. In such cases, this crane type is often chosen because it does not require heavy structural reinforcement and can be installed into existing workshop layouts without major changes.

It is particularly suitable for working environments where lifting tasks repeat every day, but the operation is not continuous high-intensity duty. In simple terms, it handles regular workshop lifting “step by step” rather than nonstop heavy production cycles.

Upgrade Options for Future Expansion

In many Panama workshop projects, the LD 5 ton single girder overhead crane is not treated as a final limit. It is usually installed as a base configuration, leaving space for later production changes. When output increases or workflow becomes more complex, the system can be upgraded step by step without replacing the whole crane.

Adding a wireless remote control is a common first upgrade in industrial workshop operation. It changes how the operator works on the floor, especially when visibility or safety distance becomes important.

Allows crane operation from ground level without fixed pendant limitation
Improves operator positioning during load alignment and installation work
Reduces dependence on cable pendant movement range inside the workshop
Often used in fabrication and maintenance environments with frequent repositioning

In daily use, it simply makes handling easier. The operator can move with the load, not stay fixed at one control point.

A VFD (Variable Frequency Drive) upgrade is mainly used when users want smoother movement rather than abrupt starting behavior.

Controls motor speed during start and stop phases
Reduces mechanical shock on gearbox, wheels, and runway structure
Helps minimize load swing during 5 ton lifting operations
Suitable for workshops with frequent start-stop cycles

In practical terms, it makes the crane feel more controlled. Not faster, but steadier.

The structure of the LD system allows a planned upgrade path to higher lifting capacity when production demand increases.

Upgrade option from 5 ton to 10 ton single girder overhead crane system
Requires reinforcement check on runway beam and support structure
Hoist and end carriage components must be resized accordingly
Suitable for factories expanding production lines or handling heavier assemblies

This option is usually considered when product weight increases over time, not at initial installation stage.

As factory layout changes, crane coverage often needs to grow. The system can be modified to match new workshop conditions.

Extension of runway rails for wider working coverage
Adjustment of span to match expanded production zones
Integration with additional workshop bays or storage areas
Useful for facilities that expand production lines gradually

This type of upgrade is common in growing manufacturing plants where building layout changes over time.

For users with stricter internal safety requirements, additional monitoring functions can be integrated into the crane system.

Load monitoring display for industrial-time lifting weight feedback
Overload warning system with alarm indication
Motor temperature and running status monitoring
Travel and lifting operation diagnostics for maintenance planning

These systems are often used in factories that require higher traceability of lifting operations or have internal safety auditing procedures.

In industrial use, these upgrades are usually applied step by step, not all at once. The LD overhead crane system is designed in a way that allows this kind of gradual expansion, so the equipment can continue to match workshop needs as production grows.

Why Choose Yuantai Crane / BetterCrane?

Yuantai Crane / BetterCrane is a direct crane manufacturer with more than 30 years of engineering and production experience, focusing on practical overhead crane solutions for industrial workshops, fabrication plants, warehouses, and maintenance facilities. The goal is not only to supply equipment, but to match each project with a workable lifting system based on industrial site conditions.

In international projects like Panama, differences in building structure, power supply, and working habits matter. That is why every crane system is designed and checked before production, instead of using a fixed standard package.

We supply directly from our manufacturing base, without multi-layer trading cost.

Direct factory pricing for LD single girder overhead crane systems
No unnecessary distributor or agent markup
Cost control suitable for project-based procurement and EPC supply
Commonly used for 1–20 ton workshop crane projects

This structure helps customers keep investment predictable, especially for repeated or multi-unit orders.

Each project is designed based on actual workshop conditions, not only standard drawings.

Customized span, lifting height, and runway configuration
Selection based on industrial workshop layout and load requirements
Adaptation for steel structure or concrete support buildings
Hoist selection (chain hoist or wire rope hoist depending on duty)

In practical terms, the crane is adjusted to the factory, not the factory forced to adjust to the crane.

Industrial power systems vary by country, so electrical design must be matched correctly.

Support for 220V / 380V / 440V / 460V / 60Hz and 50Hz systems
Electrical components selected according to regional standards
Motor and control cabinet configured before shipment
Suitable for export projects in Latin America, Middle East, Africa, and Asia

This reduces on-site electrical modification and installation delay.

Project timelines are often tight, especially in industrial expansion work.

Standard LD crane production with controlled manufacturing cycle
Pre-assembly inspection before shipment
Export packaging designed for long-distance sea transport
Shipping support for port delivery and project site coordination

This helps reduce downtime between order confirmation and installation.

Support does not end at shipment. It continues through installation and operation stages.

Technical drawings and installation manuals provided with each project
Remote engineering support during installation
Load testing guidance and commissioning checklist support
Operator training advice for safe daily use

In industrial projects, this helps local teams complete installation smoothly, even without complex crane experience.

Get a Customized Crane Solution for Your Workshop

Every workshop in Panama or similar industrial environments has different working conditions. Some buildings are tight in height, some have limited runway strength, and others deal with changing production loads over time. Because of this, a standard crane size is not always the best fit. A proper solution is usually based on industrial site data rather than general assumptions.

To design a practical LD single girder overhead crane system or related workshop lifting equipment, we evaluate several basic but important parameters from your facility.

We do not rely on one fixed configuration. Instead, the crane is planned according to actual workshop conditions and production requirements.

Workshop size and layout
Determines span, runway length, and coverage area inside the factory. A narrow workshop often requires compact single girder crane design, while wider buildings may need extended runway systems.
Required lifting capacity
Defines whether a 3 ton, 5 ton, 10 ton, or higher capacity LD overhead crane system is suitable. In most general workshops, 5 ton is commonly used for mixed handling tasks.
Duty cycle requirements (working level A3–A5)
Indicates how often the crane is used during daily operation. Light maintenance use and continuous production lines require different motor and hoist configurations.
Building structure conditions
Includes steel structure beams, concrete corbels, or runway support strength. This directly affects whether reinforcement is needed before installation.
Local power supply standards
For Panama and similar regions, systems are usually designed for 460V / 60Hz / 3-phase industrial power, ensuring stable motor operation without electrical mismatch.

In industrial projects, crane selection is not only about lifting weight. It is also about how the equipment fits into daily production flow. A properly designed LD overhead crane should:

Move materials smoothly between production stations
Match existing workshop structural limits without heavy modification
Maintain stable performance under repeated lifting cycles
Reduce unnecessary downtime during installation and operation

Sometimes customers start with a 5 ton system, but later upgrade to higher capacity or longer span when production expands. This is normal in manufacturing environments.

If you are planning a crane installation in Panama or any similar industrial workshop, we can provide a complete technical solution based on your site conditions.

A typical proposal includes:
