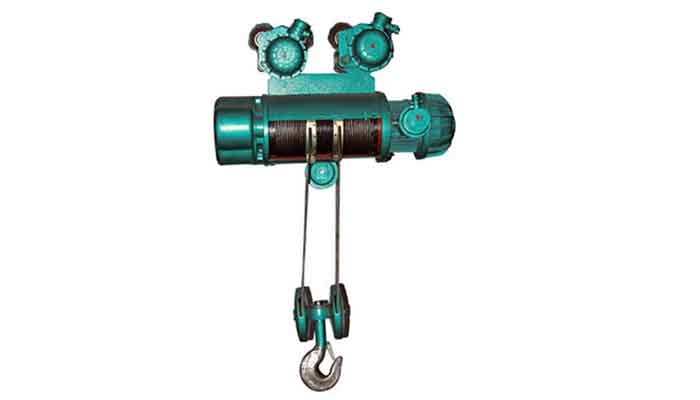

Overview explosion proof wire rope hoist 10 ton
Explosion-proof electric wire rope hoist is a kind of special ly designed electric hoist equipment . The explosion proof wire rope hoists is divided into three-level explosion-proof and four-level explosion-proof. The main body of the BCD type explosion-proof wire rope hoist can be suspended on the I-beam track for straight or curved operation, or installed on a fixed bracket for lifting heavy objects.
Features of explosion proof wire rope hoist 10 ton
BCD type explosion proof wire rope hoist can be used together with LXB type explosion-proof single-girder suspension crane or LB, LHB type explosion-proof single-girder bridge crane according to different requirements.
- The explosion-proof electric hoist is composed of several parts that can be disassembled separately. It is very convenient to use, maintain and repair and therefore the repair cycle is reduced.
- Its explosion-proof motor and explosion-proof control adopts separate explosion-proof structures. The hoist control buttons, limit switches, and explosion-proof lifting weight limiters all meet the corresponding explosion-proof requirements.
- The explosion proof parts of the 10 ton wire rope hoists are widely used and have strong interchangeability.
- The reducer of the explosion proof hoist adopts standard modular cylindrical gear, which is convenient for maintenance.
Main parameters of explosion proof wire rope hoist 10 ton
|
HB（BCD）Explosion proof wire rope hoist 10 ton |
|
Modle |
BCD |
|
Lifitng capacity |
t |
10 |
|
Lifitng height |
m |
|
9 |
12 |
18 |
24 |
30 |
|
Lifting speed |
m/min |
7 |
|
Travelling speed |
m/min |
12 |
|
Running track |
H beam
(GB706-88) |
25a-63c |
|
Small radius of curvature |
m |
|
3 |
3.5 |
4.5 |
6 |
7.2 |
|
Power of main motor |
kw |
13 |
|
Power of travelling motor |
kw |
0.5 |
|
basic dimenisons |
L |
mm |
|
1700 |
1880 |
2230 |
2600 |
2980 |
|
f |
mm |
1350 |
|
Bmax |
mm |
1100 |
Related Explosion proof wire rope hoist
The explosion-proof electric hoist is a wire rope electric hoist that has passed the explosion-proof performance test of the explosion-proof electrical product quality supervision and inspection center of the Ministry of Machinery Industry, and issued an explosion-proof certificate. Explosion-proof electric hoist is a favorable tool to improve working conditions and improve labor productivity under the premise of ensuring safety. It is a necessary mechanical equipment for production. Common explosion-proof electric hoists can be divided into explosion proof wire rope hoist and explosion-proof chain hoists.
The explosion proof wire rope hoists can be grouped the frequently used BCD type explosion-proof wire rope hoist, the Extended type explosion-proof wire rope hoist with super lifting height from 12 -30 meters, and HB (BCD) type explosion-proof electric wire rope hoist 10 tons. The main difference between them is that the tonnage is different and the lifting height is different.
- BCD type explosion-proof wire rope hoist is a common specification, the lifting capacity: 0.5T, 1T, 2T, 3T, 5T. Lifting height: 6-9 meters.
- Super height explosion proof wire rope hoist - The lifting capacity of the extended explosion-proof wire rope hoist is the same as that of the BCD electric hoist, and the lifting height is 12-30 meters.
- HB (BCD) explosion-proof electric hoist (10 tons) has a lifting capacity of 10 tons.
Compared with the first two types of explosion-proof electric hoists with large tonnage, the lifting height is 9-30 meters.
6-9m explosion proof wire rope hoist
12-30 m explosion proof wire rope hoist
explosion proof wire rope hoist 10 ton
The common models of explosion-proof electric chain hoists are with the rated load of 2.5 tons, 5 tons, 10 tons and 20 tons, and the standard lifting height is 3 meters. The disc brake motor is used as the power, and the planetary reducer is used for deceleration. It has the characteristics of compact structure, small size, light weight, high efficiency, convenient use, reliable braking and simple maintenance.
