25 Ton Electric Hoist for Sale Poland Limit Test Guide

• Crane Type: European style single girder gantry crane
• Rated Capacity: 25 Ton
• Span: 11.5 meters
• Lifting Height: 7 meters
• Power Supply: 400V / 50Hz / 3P
• Hoist Type: 25 ton European wire rope electric hoist
• Application: Heavy fabrication and steel handling workshop use

Because this is a European market heavy-duty 25 ton gantry crane project, the testing requirements are more strict than standard export cases. The system must prove stable performance under both slow and high-speed lifting conditions.

Key buyer requirements include:

• Full Factory Acceptance Test (FAT) video verification before shipment
• Validation of two-speed lifting performance under remote control mode
• Proof of limit switch safety operation at both high speed and low speed
• Complete electrical and mechanical safety compliance for EU-standard acceptance

For a 25 ton electric hoist for sale integrated into a gantry crane system, the buyer is mainly concerned with:

• Stable operation under full 25 ton rated load
• Safe stopping accuracy under different lifting speeds
• Reliable limit switch response in real working conditions
• Compliance with European-style gantry crane safety expectations

This project is not only about supplying a hoist, but about delivering a fully verified 25 ton lifting system ready for industrial operation in Poland.

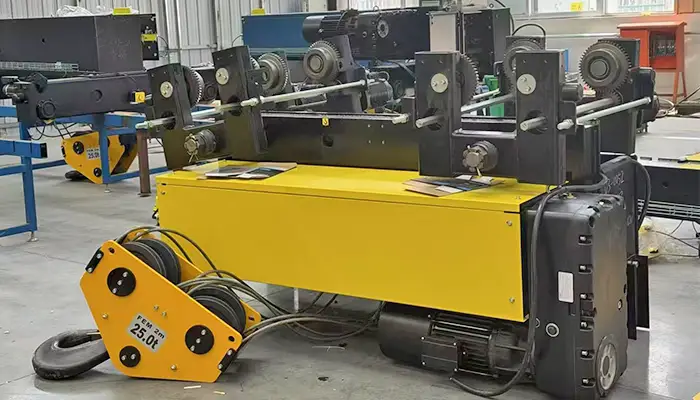

This 25 ton electric hoist for sale is a heavy-duty wire rope lifting system designed for integration with a European style 25T gantry crane (11.5m span). It is configured for stable performance under full-load industrial conditions.

• Rated Capacity: 25 Ton
• Lifting Height: 7 meters
• Hoisting System: Wire rope drum type
• Control Voltage: 400V / 50Hz / 3 Phase
• Operation Mode: Wireless remote control + pendant control (optional)
• Application: Gantry crane lifting system for Poland export project

To ensure safe and stable operation under 25 ton working load, the hoist is built with reinforced industrial-grade components:

• Hoisting motor
  Dual-speed motor configuration (slow/fast lifting) or optional VFD frequency control for smoother load handling
• Wire rope drum system
  High-strength drum designed for 25 ton rated load with stable winding performance
• Hook block assembly
  Multi-sheave heavy-duty hook block designed for safe load distribution and reduced rope stress
• Rotary limit switch system
  Precision limit switch for upper and lower travel protection, tested under both speed modes
• Brake system
  Fail-safe electromagnetic brake ensuring immediate stopping under power loss or emergency condition
• Gear reducer system
  Hardened gear reducer designed for high torque output under heavy-duty lifting cycles
• Electrical control panel
  European-standard control cabinet compatible with 400V / 50Hz / 3P industrial power systems, designed for stable remote operation integration

This configuration is designed specifically for 25 ton gantry crane applications, where stability, safety, and controlled lifting speed are critical.

The system is optimized for both slow-speed precision lifting and high-speed positioning, ensuring reliable operation in real industrial environments such as steel handling and heavy fabrication workshops.

This 25 ton electric hoist for sale is designed to be installed on a European style single girder gantry crane system, optimized for heavy-duty outdoor and industrial applications in Poland.

• Single girder beam: 11.5m span
• End carriages: heavy-duty traveling mechanism
• Application: Indoor and outdoor industrial lifting environments
• Hoist installation: Mounted on trolley running along the main girder
• System design: European structural standard for heavy load stability

During real operation, the 25 ton wire rope electric hoist system must work in full coordination with the gantry crane movement system:

• Gantry crane traveling system (longitudinal movement along rails)
• Trolley movement system (horizontal movement along the 11.5m girder span)
• Vertical lifting system (25 ton hoisting operation)
• Load distribution across full span during movement and positioning

This means the hoist is not operating alone—it is part of a 3-axis industrial lifting system (lift + trolley + gantry travel).

For a 25 ton gantry crane with electric hoist, limit switch testing is critical because the system operates under dynamic multi-direction movement conditions.

Key reasons include:

• Load moves in 3 directions simultaneously
  (lifting, trolley travel, and gantry travel)
• Over-hoisting risk increases during combined movement operations
  especially when lifting while repositioning along the span
• Structural collision risk is higher in gantry crane systems
  due to long-span movement and outdoor working environments

Because of these conditions, limit switch performance must be verified under real working load conditions, ensuring the hoist stops accurately under both slow and fast lifting modes before shipment.

In this 25 ton electric hoist for sale, the high-speed lifting mode is designed for normal industrial operation where efficiency is the priority.

• Used for standard lifting operations under normal load conditions
• Provides fast vertical movement to improve working efficiency in daily crane cycles
• Suitable for bulk lifting tasks in 25 ton gantry crane operations where precision is not the primary requirement

The slow-speed lifting mode is activated when precision and safety become critical, especially in heavy-load positioning.

• Used for precise load positioning during installation or assembly work
• Activated when approaching the upper limit position of the hook travel
• Ensures controlled lifting when handling heavy components at 25 ton capacity
• Improves operator control during final alignment of lifted loads

The system is designed with an automatic speed switching sequence to ensure safe operation under all lifting conditions:

High-speed → slow-speed → final stop

This controlled transition helps prevent key operational risks:

• Shock loading during sudden deceleration
• Wire rope impact caused by abrupt speed change
• Drum overload under high inertia conditions

In a 25 ton wire rope electric hoist system used on a European gantry crane, this dual-speed logic is essential for maintaining both operational efficiency and structural safety during heavy-duty lifting cycles.

In 25 ton electric hoist systems used on gantry cranes, limit switch issues usually come from adjustment, wiring, or timing setup rather than major equipment failure.

These problems are often found during FAT testing or early operation, especially in high-load industrial lifting environments.

This happens when the hoist does not reduce speed at the correct position during upward lifting.

• High-speed mode continues too long before switching
• Slow-speed transition feels delayed or inconsistent
• Hook approaches upper limit too quickly in high-speed mode
• Less smooth control during final lifting stage

In some cases, the hoist does not switch to slow speed at all before the final limit.

• Hoist stays in high-speed mode until final stop
• Reduced control during precise positioning
• Higher stress on braking system near upper limit
• Not suitable for fine adjustment in 25 ton lifting work

If the limit switch is not correctly set, the hoist may stop too late.

• Hook moves slightly beyond safe upper position
• Increased mechanical stress under full load
• More noticeable in 25 ton heavy lifting due to inertia
• Requires recalibration before operation

Incorrect wiring after installation or maintenance can affect signal response.

• Limit switch signal not reaching control system properly
• Intermittent or unstable stopping behavior
• Incorrect response during high-speed operation
• Often found during FAT or re-commissioning stage

The cam inside the rotary limit switch controls stopping points. If not set correctly, operation becomes inaccurate.

• Stop position shifts up or down from designed point
• Early stop or delayed stop depending on cam setting
• Needs precise calibration during testing
• A common adjustment point before crane acceptance
