Explosion-Proof Crane Cable Features: 40-Ton Overhead Crane for Germany
Explosion-proof cranes are designed for tough environments. These places often have flammable gases, dust, or chemicals. Regular cranes can cause sparks or heat that might lead to explosions. That’s why explosion-proof cranes are crucial. They help keep workers safe and protect equipment from accidents.
Using the right explosion-proof cables is just as important. Cables carry power and signals to the crane’s motors and controls. If the cables aren’t designed for hazardous areas, they can become a weak point. This could cause short circuits or sparks, risking explosions. The right cables ensure the crane runs smoothly and safely, without unexpected failures.
Our focus here is on a 40-ton overhead explosion-proof crane specially made for Germany. Germany has strict safety rules for cranes used in hazardous industries like chemical plants and steel mills. This crane meets those tough standards. It is built to work reliably while keeping safety first. Understanding the cables used on this crane helps buyers and users see why these features matter so much.

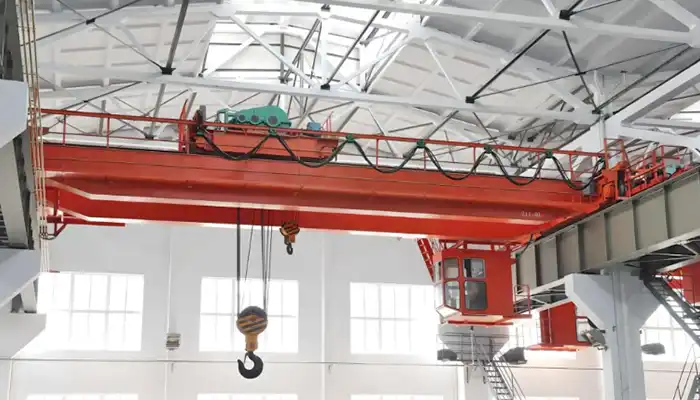

Explosion proof overhead crane double girder design affordable price, QB series for your reference
Overview of the 40-Ton Overhead Explosion-Proof Crane
This 40-ton overhead crane is built for heavy lifting in hazardous environments. It’s designed to work safely in places like chemical factories, steel mills, and other industrial sites where explosions could happen. The crane helps move heavy loads smoothly while meeting strict safety rules.
Key Specifications and Features
- Rated Lifting Capacity: 40 tons — strong enough for most heavy industrial tasks.
- Span: 22 meters — the distance the crane can cover across a workspace.
- Lifting Height: 18 meters — how high the crane can lift materials.
- Operating Work Class: A3 — standard duty, suitable for regular industrial use.
- Explosion-Proof Rating: EXD II AT3 — certified safe for use in explosive atmospheres.
- Control Method: Ground pendant control — simple, safe, and easy for the operator to handle.
- Main Structural Design: Box-type structure — offers great strength and durability for long-term use.
Motor and Drive System
- Lifting Motor: 15 kW — powerful enough for smooth lifting and lowering.
- Crane Motors: Two 4 kW motors — control the main travel of the crane.
- Trolley Motor: 2.2 kW — drives the trolley movement along the crane beam.
Safety and Compliance
This crane follows strict Chinese standards for design and manufacturing, such as:
- Design Standard: GB/T 3811-2008
- Manufacturing Standard: GB/T 14405-2011
These standards ensure the crane is reliable and safe for use in hazardous areas, giving German buyers peace of mind.

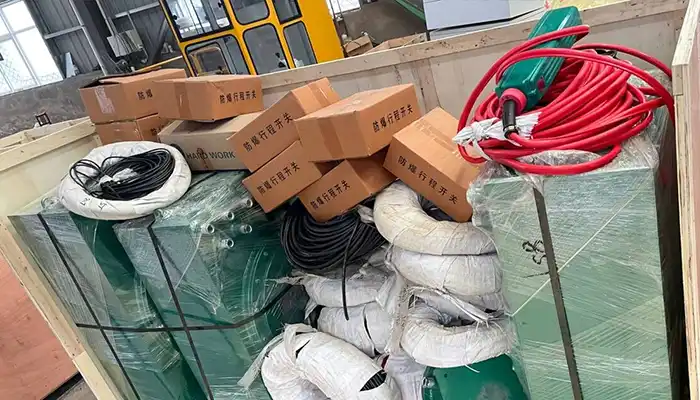

Elecrical parts and cables of Explosion proof overhead crane 40 ton for sale Germany
Explosion-Proof Crane Cables
When working with explosion-proof cranes, the cables used are just as important as the crane itself. Explosion-proof cables are specially made to avoid sparks and resist harsh conditions.
What Makes a Cable Explosion-Proof?
- Construction: These cables have strong outer jackets that prevent sparks and damage.
- Insulation: They use materials that don’t catch fire easily and can handle heat.
- Protective Features: Extra layers protect against chemicals, moisture, and mechanical wear. This keeps the cable safe in tough environments.
Important Certifications and Standards
For Germany and Europe, explosion-proof cables must meet strict safety rules. The most common ones are:
- ATEX Certification: This is the European standard for equipment used in explosive atmospheres.
- IECEx Certification: An international certification ensuring cables are safe worldwide.
These certifications prove the cables have passed tests and are safe to use in hazardous areas.
Common Cable Types for Explosion-Proof Cranes
Explosion-proof cranes typically use these cables:
- Flat Cables: Flexible and easy to manage, often used for main power supply and towing.
- Round Cables (YC type): Durable and good for power and control lines, like motor and brake cables.
- Multi-Core Cables: Carry multiple wires inside one sheath, used for control signals and communication.
Choosing the right cables helps keep the crane running safely and smoothly in dangerous industrial settings.
Detailed Cable Specifications for the 40-Ton Explosion-Proof Overhead Crane
The following cable list outlines the exact specifications used in the 40-ton explosion-proof overhead crane designed for the German market. Each cable is selected to meet performance, safety, and explosion-proof requirements for hazardous environments.
Main Power Cable
| Feature | Specification |
|---|---|
| Type | Flat cable |
| Size | 3×16mm² + 1 |
| Length | 54 meters |
| Purpose | Main power supply and tow rope cable carrier |
Motor Power and Brake Cables
Lifting Mechanism
- Stator Cable: YC 3×10mm² — 49 meters — Powers the main lifting motor
- Brake Cable: YC 3×2.5mm² — 49 meters — Controls the lifting brake system
Trolley Mechanism
- Stator Cable: YC 3×2.5mm² — 49 meters — Supplies power to trolley drive motor
- Brake Cable: YC 3×2.5mm² — 49 meters — Activates the trolley brake
Crane Travel System
- Stator Cable: YC 3×2.5mm² — 35 meters — Feeds the main crane travel motors
- Brake Cable: YC 3×2.5mm² — 35 meters — Engages the crane travel brake system
Control and Signal Cables
These cables carry signal data between components, ensuring accurate operation and emergency response.
Lifting Limiter Cable: YC 2×1.5mm² — 49 meters — Sends signal to stop lifting at the height limit
General Control Line: YC 2×1.5mm² — 150 meters — Includes wiring for:
- Crane and trolley limit switches
- Bridge door switch
- Electrical control panel connections
Resistance Control Cables
These cables connect to resistance modules that help reduce startup impact and improve motor efficiency.
| Application | Type | Size | Length |
|---|---|---|---|
| Lifting Resistance | YC | 1×10mm² | 20 m |
| Trolley Resistance | YC | 1×2.5mm² | 20 m |
| Crane Resistance | YC | 1×2.5mm² | 20 m |
Thermal Protection Cables
Used to monitor motor temperature and prevent overheating, enhancing equipment safety.
Cable Type: YC 2×1.5mm²
Total Lengths:
- Main Lifting Motor: 34 meters
- Trolley Motor: 49 meters
- Crane Travel Motors: 49 meters
Function: Sends thermal overload signals to control system
Key Features of Explosion-Proof Crane Cables
Explosion-proof crane cables are specially designed to meet the extreme demands of hazardous industrial environments. Below are the essential features that make them reliable and safe for use in the 40-ton explosion-proof overhead crane system.
Robust Insulation
These cables are equipped with insulation that resists:
- Electric sparks and arcing in flammable zones
- High operating temperatures common in industrial settings
- Chemical exposure from oils, gases, or solvents
This helps prevent electrical leakage and supports long-term safety.
Mechanical Durability
The cables must endure continuous motion and stress during crane operation. Key characteristics include:
- Resistance to bending and repeated flexing
- Reinforced sheathing to minimize wear from tow chains and cable trays
- Long service life, even under constant movement and load
Flexibility and Length Adaptability
A good explosion-proof cable must perform smoothly across various crane travel distances. These cables offer:
- High flexibility for use in mobile systems
- Suitable lengths for 18m lifting height and 22m span
- Consistent performance without tangling or snagging
Electrical Performance
Cables must deliver reliable power and signal transmission without interruption. They are designed to:
- Maintain stable voltage to all motors and brakes
- Preserve control signal integrity for accurate operation
- Minimize electromagnetic interference in critical circuits
Thermal and Mechanical Protection
To safeguard motors and control systems, these cables support:
- Real-time temperature monitoring to prevent overheating
- Smooth resistance-based startup to reduce shock load
- Backup circuit design for emergency shut-off and alerts
Why These Cable Features Matter in Industrial Applications
Explosion-proof cables aren’t just a technical detail — they’re a critical part of keeping crane systems safe and reliable, especially in hazardous work zones. Here's why these cable features make a real difference in industrial settings.
Compliance with Strict German Regulations
Germany has some of the highest safety standards in the world.
- All explosion-proof cranes and components must meet ATEX and IECEx certifications.
- Cables used must pass tough tests for flame resistance, insulation quality, and durability.
- Using approved explosion-proof cables ensures compliance and avoids legal or insurance issues.
Used in High-Risk Industrial Environments
These cranes and their cables are designed for work in areas where flammable gases or dust are present.
Industries include:
- Chemical and petrochemical plants
- Oil refineries and gas stations
- Steel mills and metal processing plants
- Paint shops and ammunition factories
In these places, even a small electrical fault can lead to disaster. That’s why every cable counts.
Benefits in Real-World Operations
Reliable explosion-proof cables bring multiple benefits to crane users:
- Reduce downtime by avoiding electrical faults or insulation failures
- Enhance safety for workers and equipment through better cable integrity
- Lower maintenance costs due to longer cable lifespan and fewer replacements
- Support smooth crane performance, with consistent power and control signals
In short, these cable features help crane systems operate safely, meet local regulations, and reduce risks in some of the most demanding industrial environments.
Conclusion
Explosion-proof crane cables play a key role in safe crane operation. They are not just wiring—they are part of the crane’s core safety system. In environments with explosive gases or dust, these cables protect both people and equipment.
The 40-ton overhead explosion-proof crane designed for the German market uses a cable system that meets high performance and safety standards. From power supply to motor control and safety signals, every cable is selected to handle demanding conditions. With features like strong insulation, reliable signal transmission, and high flexibility, the system ensures steady operation and long service life.
For crane buyers, it’s important to look beyond basic specs. Choose explosion-proof cables that meet or exceed ATEX or IECEx requirements. Make sure they match the crane’s power, control, and safety needs. This not only ensures compliance but also reduces downtime and maintenance costs over time.
In short, the right cables make a big difference—for safety, performance, and peace of mind.
