15 Ton Overhead Crane Mexico Steel Structure Case Study
Project Background – Practical Industrial Demand for 15 Ton Overhead Crane in Mexico
Industrial Requirement for 15 Ton Overhead Crane System
This project is based on a industrial demand in Mexico where a production workshop required a 15 ton overhead crane system for daily material handling inside the factory.
The lifting tasks were not occasional or auxiliary. They were part of normal production flow. Steel components, assembled structures, and heavy industrial parts needed to be moved safely and repeatedly during the working day.
European style single girde overhead cranes
In this type of environment, a 15 ton overhead crane in Mexico workshop application must deliver stable performance every day, not just under test conditions.
In many Mexican industrial projects, equipment selection is not based only on technical specifications. It is strongly connected to how the factory operates in life.
For a 15 ton overhead crane system, decision-makers usually focus on long-term operation and practical usability rather than complex design features.
The main considerations in this project included:
- Operational reliability of the 15 ton overhead crane under continuous production cycles
- Fast installation process to reduce workshop downtime and avoid production interruption
- Cost control that remains balanced with safety requirements in industrial operation
- A stable supplier solution that can provide both crane system and structural support
- Maintenance conditions that can be handled locally without complex procedures or special tools
These are practical requirements commonly seen in Mexico manufacturing and steel processing industries, where production continuity is a priority.
The main challenge in this project was not the crane capacity, but the building structure itself.
The workshop in Mexico did not have a pre-designed crane runway system. In practical terms:
- No existing crane beams installed
- No structural frame designed for overhead crane load
- Building structure not suitable for direct installation of a 15 ton overhead crane
Because of this limitation, a direct installation of a 15 ton overhead crane on the building frame was not feasible or safe.
This situation is common in industrial facilities that expand production over time without initial crane structure planning.
Due to the structural limitation, the project required a complete solution combining both equipment and supporting structure.
Therefore, a 15 ton overhead crane with steel structure system was proposed to ensure safe and stable operation.
The system includes:
- HD European type 15 ton overhead crane
- Independent steel column structure for load support
- Crane runway beam system for crane movement
- Column bracing system for structural stability
The purpose of this configuration is to create a self-supporting runway system so the 15 ton overhead crane can operate independently of the original workshop building.
This approach is widely used in Mexico industrial crane projects where modifying existing buildings is difficult or not cost-effective.
The steel structure system is designed to handle industrial conditions, not simplified theoretical loading.
The 15 ton overhead crane system must safely manage:
- Vertical lifting load of 15 tons during hoisting operations
- Horizontal forces generated during crane travel along runway beams
- Long-term repeated stress from daily industrial production use
The structure ensures load transfer from crane to runway beams, then to steel columns, and finally to the foundation, forming a stable and continuous load path.
This allows the 15 ton overhead crane in Mexico workshop environment to operate safely and consistently under production conditions.
This project reflects a practical industrial requirement in Mexico for a 15 ton overhead crane system with steel structure support.
The key focus is not only lifting capacity, but workshop usability:
- Stable daily operation of 15 ton overhead crane
- Independent steel structure solution for non-prepared buildings
- Fast installation with minimal interruption to production
- Safe and practical long-term industrial performance
It is a typical example of how industrial crane systems in Mexico are designed around workshop constraints rather than ideal structural conditions.
Project Engineering Solution – 15 Ton Overhead Crane System
Combined 15 Ton Overhead Crane System Design Approach
To match the working conditions of the workshop in Mexico, the project adopted a complete 15 ton overhead crane system solution instead of relying on the existing building structure.
The idea was straightforward: build a system that works independently, safely, and consistently in daily production.
The final engineering solution combines crane equipment and structural support into one integrated system, ensuring that the 15 ton overhead crane can operate smoothly under industrial conditions.
The complete system includes several coordinated parts working together as one functional unit:
- 15 ton overhead crane (HD European single girder type)
Designed for stable lifting performance, compact structure, and efficient use of limited workshop height. - Electric wire rope hoist system
Provides controlled lifting and lowering operations with stable speed and precise load handling for 15 ton capacity work. - Independent steel column structure
Acts as the main load-bearing frame, transferring crane load directly to the foundation instead of the building structure. - Crane runway beam system
Forms the traveling track for the 15 ton overhead crane, ensuring smooth and stable movement along the workshop span. - Column bracing system
Improves overall structural rigidity and stability, especially during crane travel and load movement conditions.
A key feature of this 15 ton overhead crane system in Mexico is its independent structural design.
In many Mexican industrial workshops, building structures are not originally designed to carry overhead crane loads. Direct installation on building columns is often not possible or not recommended for long-term operation.
For this reason, the system is designed as a self-supporting structure:
- The steel columns carry the crane load directly
- The runway beams distribute the load across the structure
- The bracing system controls lateral stability during operation
This means the 15 ton overhead crane does not depend on the existing workshop building, which reduces structural risk and installation limitations.
This combined approach is widely used in industrial projects because it matches actual workshop conditions.
For the 15 ton overhead crane system, the main engineering advantages are:
- Stable operation under continuous industrial lifting cycles
- Flexible installation in workshops without crane-ready buildings
- Reduced dependency on civil structure modification
- More predictable load distribution and structural behavior
In practical terms, it provides a clear and workable solution for factories in Mexico that need to upgrade lifting capacity without rebuilding their entire facility.
The 15 ton overhead crane system with steel structure design is not a single equipment installation, but a complete working system.
By combining crane equipment, hoisting system, and independent steel structure, the solution ensures:
- Safe operation under 15 ton working load
- Stable crane movement along the runway system
- Independent structural support without relying on building columns
- Practical suitability for Mexican industrial workshop conditions
It is designed for production use, where reliability and continuous operation matter more than complex design concepts.
Technical Parameters of 15 Ton Overhead Crane System
15 Ton Overhead Crane Technical Configuration
The 15 ton overhead crane system in Mexico project is designed with clear and practical working parameters based on workshop conditions. Each specification is selected to match daily industrial lifting requirements, not only theoretical design values.
The crane system focuses on stable operation, controlled lifting behavior, and compatibility with local industrial power conditions.
- Lifting capacity: 15 ton overhead crane, designed for continuous industrial material handling
- Span: 12.19 m, suitable for medium-span workshop coverage and stable runway movement
- Lifting height: 4.69 m, optimized for low headroom workshop structure conditions
- Power supply: 220V / 60Hz / 3 phase, adapted to local industrial electrical standards in Mexico
- Crane type: HD European single girder overhead crane, compact structure with stable performance

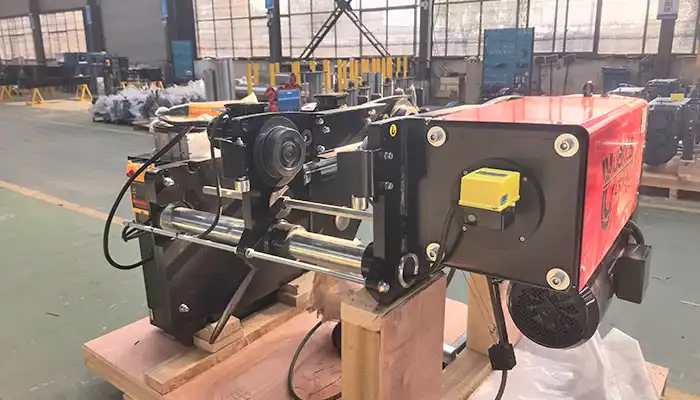

- Hoist type: European electric wire rope hoist, designed for smooth lifting control and precise load handling
These parameters are selected to ensure the 15 ton overhead crane system operates reliably under daily production cycles in industrial environments.

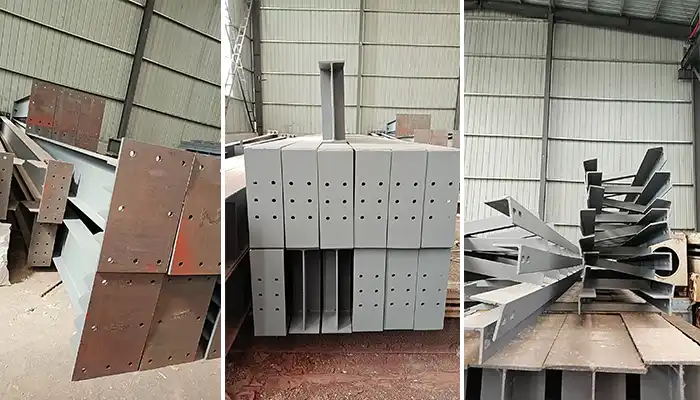

The steel structure is designed as the supporting system that allows the crane to operate independently from the building structure. It ensures load transfer, stability, and long-term safety.
Column System
- Steel specification: HN 496 × 199 × 9 × 14
- Column height: 4.704 m
- Quantity: 16 pieces
The column system acts as the primary vertical support for the 15 ton overhead crane runway structure, transferring all crane loads directly to the foundation.
Runway Beam System
- Steel specification: HN 596 × 199 × 10 × 15
- Length: 48 m × 2 lines
The runway beams form the travel path for the 15 ton overhead crane, ensuring stable movement across the full working span. The beam selection is based on load distribution requirements under repeated industrial operation.
Bracing System
- Configuration: 4 sets of column bracing
- Function: structural stability and lateral load resistance
The bracing system improves overall rigidity of the steel frame, controlling lateral movement and ensuring stable performance during crane travel and lifting operations.
Engineering Summary of Technical Parameters
The technical design of this 15 ton overhead crane system is based on workshop operation requirements in Mexico.
Each component is matched to practical working conditions:
- Crane parameters ensure stable 15 ton lifting performance
- Steel structure system provides independent load support
- Runway beams guarantee smooth crane travel over 12.19 m span
- Bracing system maintains structural stability under dynamic load
Together, these parameters form a complete and practical 15 ton overhead crane solution suitable for continuous industrial use in factory environments.
Key Features of 15 Ton Overhead Crane System
Independent Steel Structure Design for 15 Ton Overhead Crane
This 15 ton overhead crane system is built on a fully independent steel structure frame. The purpose is simple and practical: the crane does not depend on the existing workshop building for load support.
In many industrial projects in Mexico, this point is important because older workshops or expanded factories often do not have prepared crane runway beams.
With this design, the system can be installed in buildings where structural support is limited or not originally designed for overhead cranes.
Key practical advantages include:
- Suitable for workshops without existing crane runway beams
- Reduces need for building modification or reinforcement
- Provides stable structural support for 15 ton overhead crane operation
- Allows flexible installation in different industrial building conditions
In use, this makes the system more adaptable to Mexico factory environments where construction conditions vary from site to site.
The HD European design used in this 15 ton overhead crane system is specifically optimized for low headroom workshops.
In many factories in Mexico, roof height is limited, and every part of vertical space must be used efficiently. Because of this, crane design becomes a key factor in usable lifting height.
This system focuses on reducing unnecessary structural height so that more space is available for actual lifting work.
Practical benefits include:
- Improved lifting height within limited workshop space
- Compact hoist and trolley structure for better space utilization
- Stable operation even under restricted vertical conditions
- Suitable for retrofit workshops with fixed building height
This makes the 15 ton overhead crane suitable for low-height industrial buildings in Mexico, especially where expansion is not possible but lifting capacity must increase.
The 15 ton overhead crane system is designed for continuous industrial use, not occasional lifting tasks. It is intended for production environments where equipment runs throughout the working day.
Typical application environments include:
- Steel fabrication workshops handling heavy structural parts
- Mechanical manufacturing plants with repetitive assembly lifting
- Heavy equipment assembly areas requiring stable positioning and movement
In these environments, stability is not optional. It is essential.
The combination of runway beams and steel columns ensures that:
- Load from 15 ton lifting is distributed evenly through the structure
- Crane movement remains stable across the full span
- Long-term operation under repeated cycles is supported without structural instability
This is important for Mexican industrial users who prioritize consistent daily operation and minimal downtime.
The steel structure system of this 15 ton overhead crane solution is prefabricated and modular in design.
This approach is widely used in industrial projects because it improves installation efficiency and reduces on-site complexity.
Main practical advantages:
- Faster installation time compared to traditional construction methods
- Reduced on-site welding and fabrication work
- Lower interruption to ongoing factory production
- Easier inspection and maintenance after installation
For many workshops in Mexico, this modular approach is preferred because it allows the 15 ton overhead crane system to be installed with less disruption to existing operations.
It also makes future maintenance more manageable, since key components follow standardized structural design rather than fully custom-built structures.
Overall, the 15 ton overhead crane system is designed with four practical engineering priorities:
- Independent steel structure for flexible installation
- Low headroom optimization for workshop constraints
- Stable heavy-duty operation for continuous industrial use
- Modular construction for efficient installation and maintenance
These features ensure the system performs reliably in industrial conditions commonly found in Mexico manufacturing and steel processing workshops.
Advantages for Mexican Industrial Buyers
For Mexican factory owners and engineers, a 15 ton overhead crane system is expected to be practical, stable, and easy to maintain in daily operation. The focus is not only on lifting capacity, but on how the system performs over years of production use.
In this project, the solution is designed to fit typical workshop conditions in Mexico, especially where building structure limitations exist and production cannot be stopped for long installation work.
The main advantages are as follows:
- Reliable long-term operation in industrial environments
- Reduced dependency on building modifications
- Faster project delivery time
- Lower installation risk compared to custom civil construction
- Stable operation under frequent lifting cycles
In practical terms, this means the 15 ton overhead crane system can be installed and put into operation with less disruption, while still maintaining stable performance for continuous industrial work.
This approach matches the common mindset in Mexican industrial projects: investing in equipment that works consistently in factory conditions, without unnecessary complexity or long-term operational uncertainty.
Problems Solved by This 15 Ton Overhead Crane System
This 15 ton overhead crane system is designed to solve common workshop problems found in many industrial sites in Mexico, especially where building structures were not originally planned for crane installation.
The questions below reflect concerns from factory owners and engineers during project planning.
In many workshops in Mexico, the building structure does not include crane runway beams or load-bearing design for overhead cranes. Because of this, direct installation is often not possible.
A steel structure system provides an independent solution for the 15 ton overhead crane, allowing safe load transfer without modifying the building itself.
- Independent support frame for crane operation
- No need for structural reinforcement of existing building
- Suitable for workshops with limited original crane design
Yes. The HD European 15 ton overhead crane design is specifically developed for low headroom environments.
In practical workshop conditions, roof height is often limited, so the system is optimized to maximize lifting height within available space.
- Compact hoist structure design
- Reduced dead space above runway beam
- Better lifting height efficiency in restricted workshops
Yes. The system is designed for industrial working conditions where the crane is used repeatedly throughout the day.
It is commonly used in manufacturing and fabrication environments where stable lifting performance is required under continuous load cycles.
- Designed for repeated 15 ton lifting operations
- Stable performance under daily industrial use
- Suitable for steel workshops and production plants
No. The system uses modular steel structure components and prefabricated parts, which simplifies installation on site.
Compared with traditional civil construction, the process is more direct and controlled.
- Reduced on-site welding and fabrication work
- Faster installation timeline
- Lower disruption to ongoing factory operations
Yes. This 15 ton overhead crane system with steel structure is commonly used in retrofit projects.
It is suitable for factories that already have production running but need to upgrade lifting capacity.
- Suitable for non-crane designed buildings
- Can be installed in existing workshops
- No major structural demolition required
Application Industries in Mexico
The 15 ton overhead crane system is widely used across different industrial sectors in Mexico where medium to heavy lifting is required in daily production. These industries usually share one common requirement: stable lifting performance under continuous workshop operation.
In practice, the 15 ton overhead crane in Mexico industrial applications is selected when factories need reliable material handling inside production halls, especially where steel components or heavy assemblies are involved.
Typical application industries include:
- Metal fabrication workshops handling structural steel parts and welded assemblies
- Automotive component manufacturing plants with repetitive lifting and assembly processes
- Industrial machinery production facilities where heavy machine parts need positioning and transfer
- Steel processing plants requiring continuous handling of raw and finished steel materials
- General heavy industry workshops where daily lifting operations are part of production flow
In these environments, the 15 ton overhead crane system is used not only for lifting, but for keeping production moving smoothly. Material flow inside the workshop depends on consistent crane performance.
From a practical point of view, Mexican industrial users usually choose this type of crane system when they need a balance between lifting capacity, installation flexibility, and long-term operational stability in factory conditions.
15 ton overhead crane steel structures
Conclusion – Practical 15 Ton Overhead Crane Solution for Mexico
This project reflects a practical engineering solution for a 15 ton overhead crane system in Mexico, designed for workshop conditions rather than theoretical planning. The focus is on stable operation, simple installation, and long-term usability in daily industrial production.
In many Mexican factories, the key expectation is straightforward: the 15 ton overhead crane must work reliably every day, without creating structural or operational problems for the workshop. This solution follows that requirement.
The final system is built by combining several practical design elements:
- HD European single girder crane technology for stable lifting performance and compact structure
- Independent steel structure system to support installation in workshops without existing crane beams
- Low headroom optimized design to maximize lifting height within limited workshop space
Together, these elements form a 15 ton overhead crane system that fits industrial workshop conditions in Mexico, especially where building structures are not originally designed for overhead cranes.
From a practical viewpoint, the value of this system is not only in lifting capacity. It is also in how it supports continuous production without frequent interruption or complex maintenance requirements.
In industrial use, a 15 ton overhead crane system like this becomes part of the production flow, supporting daily operations such as material handling, assembly movement, and heavy component positioning.
This is why it is better understood not just as lifting equipment, but as a long-term industrial investment that supports stable factory operation and production continuity in Mexico workshops.
