Multi-Point Suspension Overhead Crane: Precision and Power

Designed for heavy lifting, this crane offers synchronized operations, high customization, and precision, ideal for specialized industrial applications.

Overview of the Multi-Point Suspension Overhead Crane

Definition and General Features

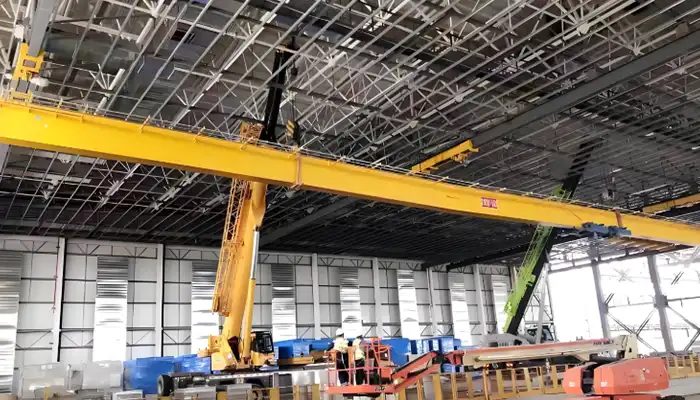

The Multi-Point Suspension Overhead Crane is a versatile and robust lifting system designed to handle heavy loads efficiently and safely. It is primarily used in industries such as aircraft maintenance, heavy manufacturing, and automotive assembly, where precision and high lifting capacity are essential.

This crane's design incorporates multiple suspension points to distribute the load evenly across the structure, reducing the chances of sway and ensuring smooth, controlled movement. It is ideal for tasks that require handling large, heavy objects with accuracy and stability.

Key Features of the Multi-Point Suspension Overhead Crane

• Multiple Suspension Points: Distributes load evenly, providing stability and reducing the risk of sway.
• High Lifting Capacity: Capable of lifting heavy loads with precision, making it suitable for demanding tasks.
• Flexibility: Designed to adapt to various operational needs, enhancing versatility in different industries.
• European Optimization: Built with advanced European design techniques for better durability and efficiency.
• Smooth Operation: Offers smooth and controlled movement, essential for delicate or high-precision tasks.

Benefits of the Multi-Point Suspension Overhead Crane

• Enhanced Load Stability: The multiple suspension points provide a balanced and secure lifting process, minimizing the chances of accidents.
• Durability and Reliability: The crane’s structure is engineered to withstand continuous heavy-duty operation, ensuring long-term performance in demanding environments.
• Increased Operational Efficiency: With its flexible design, the crane can adapt to different tasks, improving the overall productivity of the facility.

Designed for industries that require a high degree of lifting power and accuracy, the Multi-Point Suspension Overhead Crane ensures a safe and efficient operation, making it a valuable asset in any heavy-duty work environment.

Key Specifications and Customization Options

Load Capacity and Span

• Maximum Load Capacity: The Multi-Point Suspension Overhead Crane is capable of lifting loads up to 40 tons. The crane can also be customized to handle higher or lower capacities based on specific operational needs.
• Span Dimensions: The span of the crane can reach up to 90 meters, making it suitable for both large-scale operations and more confined spaces.
• Lifting Height Range: The crane offers a lifting height range from 3 meters to 30 meters, providing flexibility for different work environments and requirements.

Speed Range

Traveling Speed:

• Trolley Speed: The trolley can travel at speeds ranging from 5 to 60 meters per minute, offering adaptability for various handling tasks and operational workflows.
• Hoist Speed: The hoist speed is adjustable between 2 to 20 meters per minute, allowing for precise and controlled lifting.

Lifting Speed:

• Adjustable Lifting Speed: The lifting speed is adjustable between 0.4 to 16 meters per minute, with frequency control to enhance operational flexibility and precision. This feature is particularly valuable for tasks requiring exact lifting motions, such as in aircraft maintenance or heavy assembly work.

These customizable specifications ensure that the Multi-Point Suspension Overhead Crane can be tailored to meet the demands of different industries, enhancing productivity while maintaining safety and efficiency.

Working Principle of Multi-Point Suspension Overhead Crane

Design and Technology

• Optimized Box Girder Design: The crane is built with a robust box girder design that significantly improves its structural strength and durability. This design helps distribute the weight evenly, providing stability during heavy lifting operations.
• Flexible Suspension Points: The crane uses multiple suspension points that offer flexibility. These points absorb horizontal stresses, effectively reducing wear and tear on the roof structure and ensuring a longer lifespan for both the crane and the building.
• Synchronized Trolleys: The crane is designed to operate with two trolleys that work in perfect synchronization. This feature allows for precise load positioning, making it ideal for tasks where accuracy is crucial, such as in delicate assembly lines or aircraft maintenance.

Operation Features

• Anti-Derailment Devices: The crane is equipped with both electronic and mechanical anti-derailment systems. These devices are designed to prevent accidents by ensuring the trolleys stay on track and operate smoothly during movement.
• Power Supply System: The crane utilizes high-flexibility flat cables and C-rails to ensure a reliable power supply. This system reduces the risk of cable breakage, ensuring continuous operation and minimal downtime.
• Precision Lifting and Movement: The crane is particularly well-suited for aircraft maintenance workshops, where precision and the ability to handle heavy components are essential. Its ability to lift and move large, sensitive parts with accuracy makes it invaluable in environments where heavy lifting and fine-tuned movements are necessary.

This combination of design and operational features allows the Multi-Point Suspension Overhead Crane to function effectively in demanding industrial settings, offering high performance and reliability.

Special Features and Design Advantages

Key Design Features

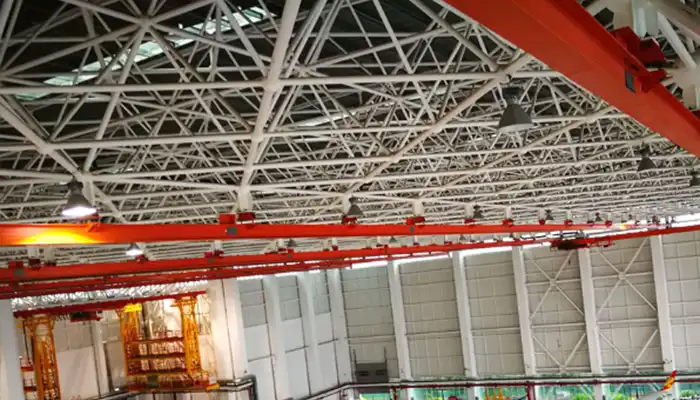

• Multi-Point Suspension System: The crane is equipped with a multi-point suspension system that allows it to cover a larger workshop area. This system also enables the synchronized operation of two trolleys, improving efficiency and ensuring smooth movements during heavy lifting tasks.
• Adjustable Horizontal Guide Wheels: To ensure smooth and stable travel, the crane features adjustable horizontal guide wheels. These wheels help minimize vibration during operation, leading to more precise lifting and movement, even when handling delicate or heavy components.
• Independent Friction Drive: The crane's independent friction drive ensures constant traction, even under heavy loads. This feature prevents wheel slippage, providing reliable performance in challenging conditions and reducing wear and tear on the drive system.
• Seamless Operation in Demanding Environments: The crane is designed to operate seamlessly in difficult environments, such as aircraft maintenance workshops. Its precision and synchronization capabilities make it ideal for handling heavy and sensitive components with accuracy, ensuring smooth, uninterrupted operations.

Customization and Specialized Functions

• Custom-Designed for Specific Needs: The crane can be tailored to meet the specific requirements of various industries, including high-efficiency assembly lines and large-scale maintenance tasks. Customization options include varying load capacities, spans, and lifting heights to suit the unique needs of each operation.
• Synchronous Lifting and Precise Positioning: The crane offers synchronous lifting, which is crucial for tasks that require load positioning with high precision. This feature allows for smooth coordination between trolleys, ensuring that loads are handled safely and accurately.
• Integration with Other Cranes: For larger operations or complex lifting tasks, the crane can be integrated with other cranes to enhance performance. This integration allows for broader coverage of the work area, enabling the handling of larger or more numerous loads simultaneously for greater efficiency.

These special features and customization options provide the Multi-Point Suspension Overhead Crane with a significant advantage in various high-demand industrial applications, ensuring flexibility, precision, and efficiency.

Operational and Maintenance Details

Drive and Control Systems

• Three-in-One Driving Unit: The crane features a three-in-one driving unit that guarantees smooth and stable operation. This unit incorporates stepless speed control, which allows for fine-tuned adjustments in both lifting and traveling movements, providing precise control even under heavy loads.
• PLC Control System: The PLC (Programmable Logic Controller) control system enhances the crane's flexibility by enabling multi-crane lifts. This capability allows the crane to work in coordination with other units, increasing its operational range and utility, especially in complex or large-scale projects.

Electrical Protection and Safety Features

• Phase Control Protection: To ensure the crane operates safely, phase control protection is included. This feature safeguards the crane's electrical system by preventing phase loss, ensuring continuous and safe power supply.
• Anti-Collision Sensors: The crane is equipped with anti-collision sensors that detect obstacles in its path, preventing accidents and ensuring safe operation in crowded or restricted spaces.
• Warning Devices: To alert operators and nearby personnel of potential hazards, the crane includes flashing lights and sound alarms. These devices serve as an early warning system, enhancing safety in high-traffic or high-risk environments.
• Remote and Manual Control Options: For added flexibility and safety, the crane can be operated via remote control or a manual pendant control system. These options enable operators to control the crane from a safe distance, reducing the risk of injury and providing better maneuverability. The crane is built to withstand up to 500,000 operational cycles, ensuring a long-lasting and dependable performance.

Maintenance Considerations

• Modular Design: The crane is designed with a modular structure, making installation, maintenance, and repairs straightforward. This modularity helps minimize downtime, ensuring that the crane remains operational for longer periods and reducing costs associated with maintenance.
• Lubrication-Free Components: To reduce maintenance requirements and costs, certain components of the crane feature a lubrication-free design. This innovation not only cuts down on the need for regular maintenance but also improves the crane's longevity, ensuring that it remains in top working condition with minimal effort.

These operational and maintenance features contribute to the crane’s efficiency, reliability, and ease of upkeep, making it a valuable asset in demanding industrial environments.

Structural Design and Materials

Main Beam Design

• High-Strength Steel Materials: The main beam is constructed from high-strength steel materials such as Fe37 or Fe52 (equivalent to Q235B or Q345B in China). These materials are specifically chosen for their robustness and durability, ensuring that the crane can handle heavy loads and endure demanding operating conditions over time.
• CNC Cutting for Precision: CNC (Computer Numerical Control) cutting technology is employed to ensure that the web plate of the main beam is formed with high precision. This ensures the crane maintains structural integrity and deflection accuracy, vital for stable operation and long-term performance.
• Shot-Blasting Process: After welding, the main beam undergoes a shot-blasting process to release residual stresses from welding. This not only improves the beam's overall finish quality but also enhances its strength and resistance to cracking, contributing to the crane's longevity and reliability.

End Beam and Drive Wheel Features

• Wear-Resistant End Beam Wheels: The wheels on the end beam are made from wear-resistant materials such as ductile iron or engineering plastics. These materials are chosen to reduce wear on both the wheels and the main tracks, extending the crane’s service life and ensuring consistent performance over time.
• High Friction and Guiding Wheels: The end beam features high-friction wheels that prevent slippage under heavy loads, ensuring the crane remains stable and secure during operation. Additionally, guiding wheels are incorporated to keep the crane's movement aligned with the track, providing smooth and stable travel across the entire span of the workshop or facility.

The thoughtful integration of these structural design features ensures that the crane not only meets high standards of safety and precision but also performs efficiently in demanding environments with minimal wear and tear.

Versatility and Application Areas

Applications

The Multi-Point Suspension Overhead Crane is particularly well-suited for industries that require both heavy lifting and precision handling. Its robust design and advanced technology make it ideal for applications such as:

• Aircraft Maintenance: The crane's ability to handle large, delicate components like aircraft fuselages, wings, and tail assemblies ensures precise and secure lifting, which is crucial in maintaining high standards of safety and operational efficiency in aircraft maintenance.
• Space Industry: Used for moving and positioning large, sensitive equipment that demands high precision and care.
• Large-Scale Assembly Operations: Perfect for industries involved in the assembly of large machines and structures, offering the flexibility and power required for heavy-duty tasks.

Industry-Specific Benefits

This crane provides numerous benefits for specific industries that require custom lifting solutions:

• Aerospace, Shipbuilding, and Automotive Manufacturing: The crane can be tailored to offer synchronized lifts, which allows for safe and reliable transport of large components. These industries rely on precise movement to ensure the safety and integrity of costly and delicate parts.
• Limited Space, High-Capacity Lifting: In environments where space is at a premium, the crane offers the ability to perform high-capacity lifting while maintaining precision and safety. This makes it particularly valuable for facilities with restricted overhead space but a need for heavy lifting capabilities.

Closing Remarks

The Multi-Point Suspension Overhead Crane stands out due to its high customization options, advanced technology, and durable design. These qualities make it an excellent choice for industries requiring specialized solutions for heavy lifting tasks. Whether for aircraft repair, large-scale assembly, or other high-precision environments, this crane offers a reliable and efficient solution, enhancing productivity while ensuring safety and operational excellence.
